12V 10A Li-ion/LiFePO4/Limon2 Battery Charger, Automatic and Fast Charging

1 / 5

12V 10A Li-ion/LiFePO4/Limon2 Battery Charger, Automatic and Fast Charging

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

VL1210L

Input Voltage

110-230VAC

Type

Lead-Acid / Lithium Battery Charger

Charging Type

Automatic CC CV Charging

Principle

Smart Battery Charger

Case Material

Aluminum

Input Plugs

EU/US/AU/UK

Charging Steps

CC, CV, Float, Cut-off

Warranty

3 Years

Dimensions

120*69*45mm

⚡ Product Description

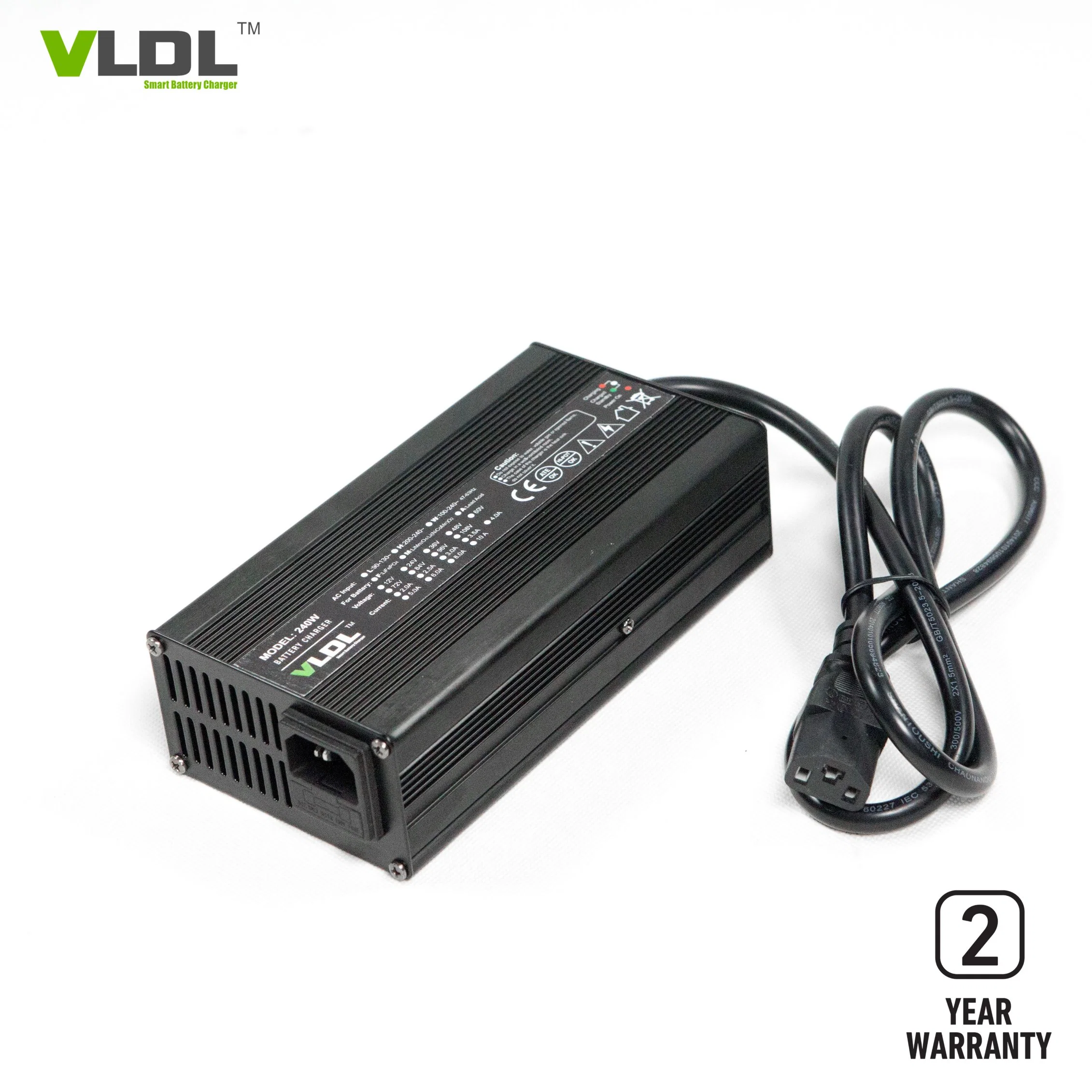

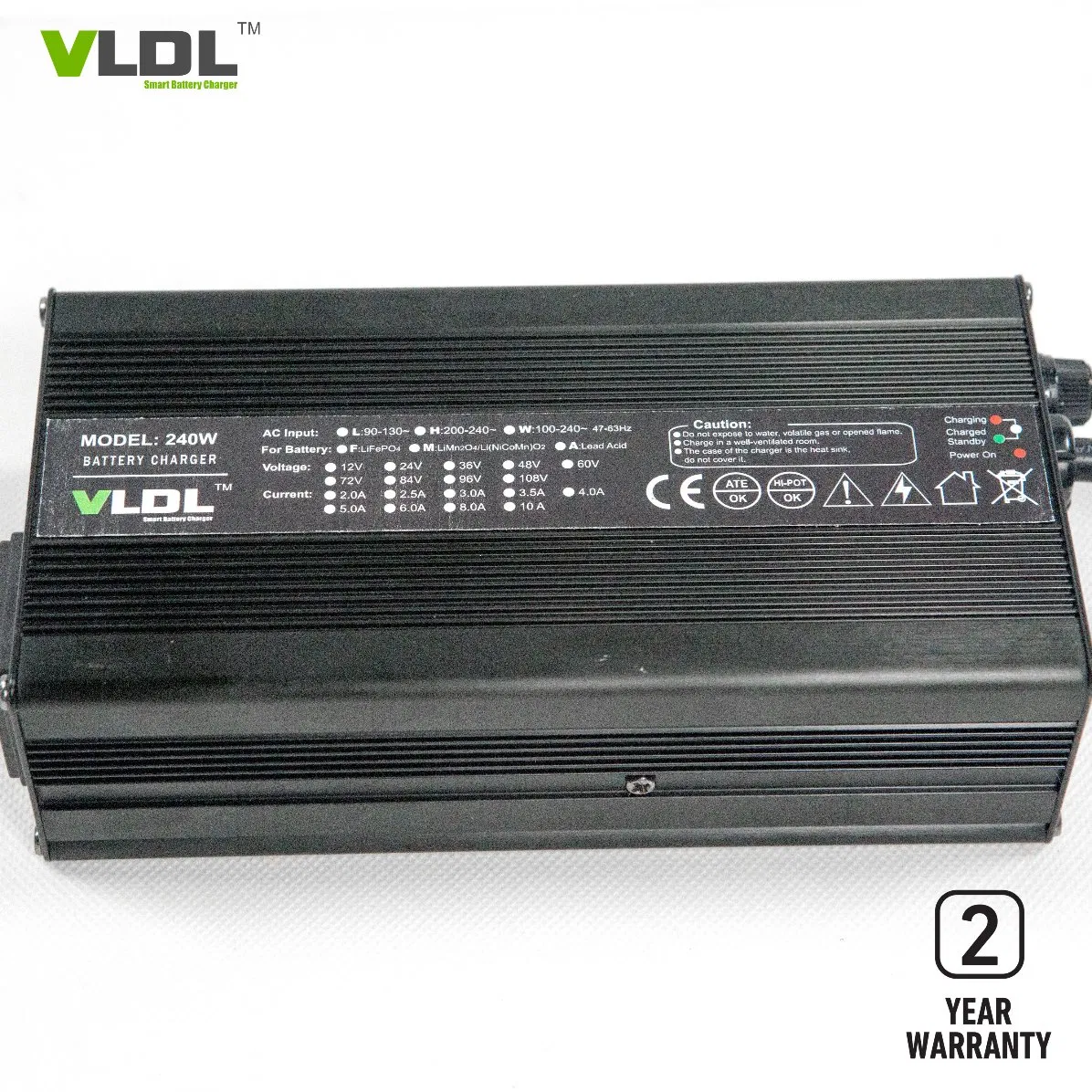

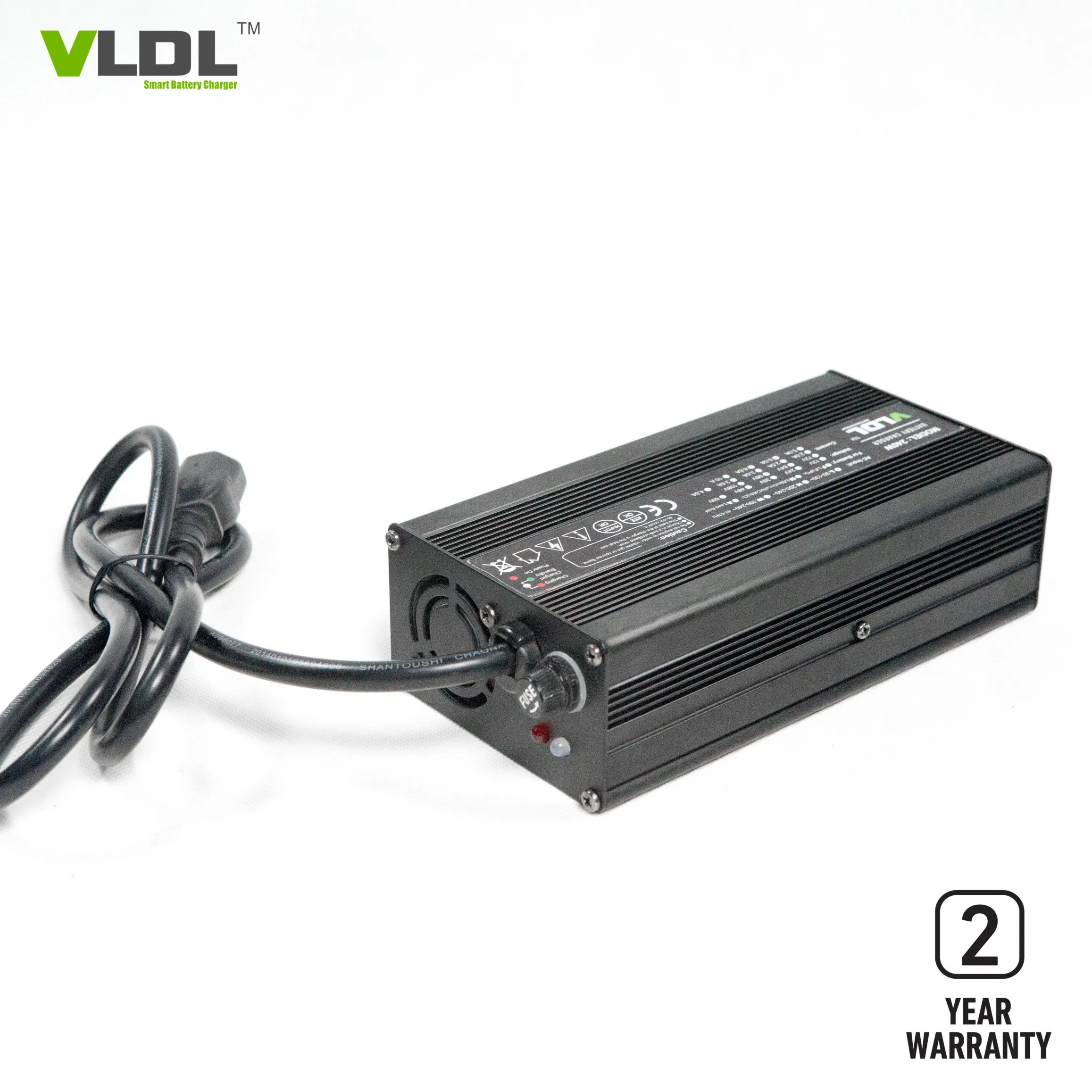

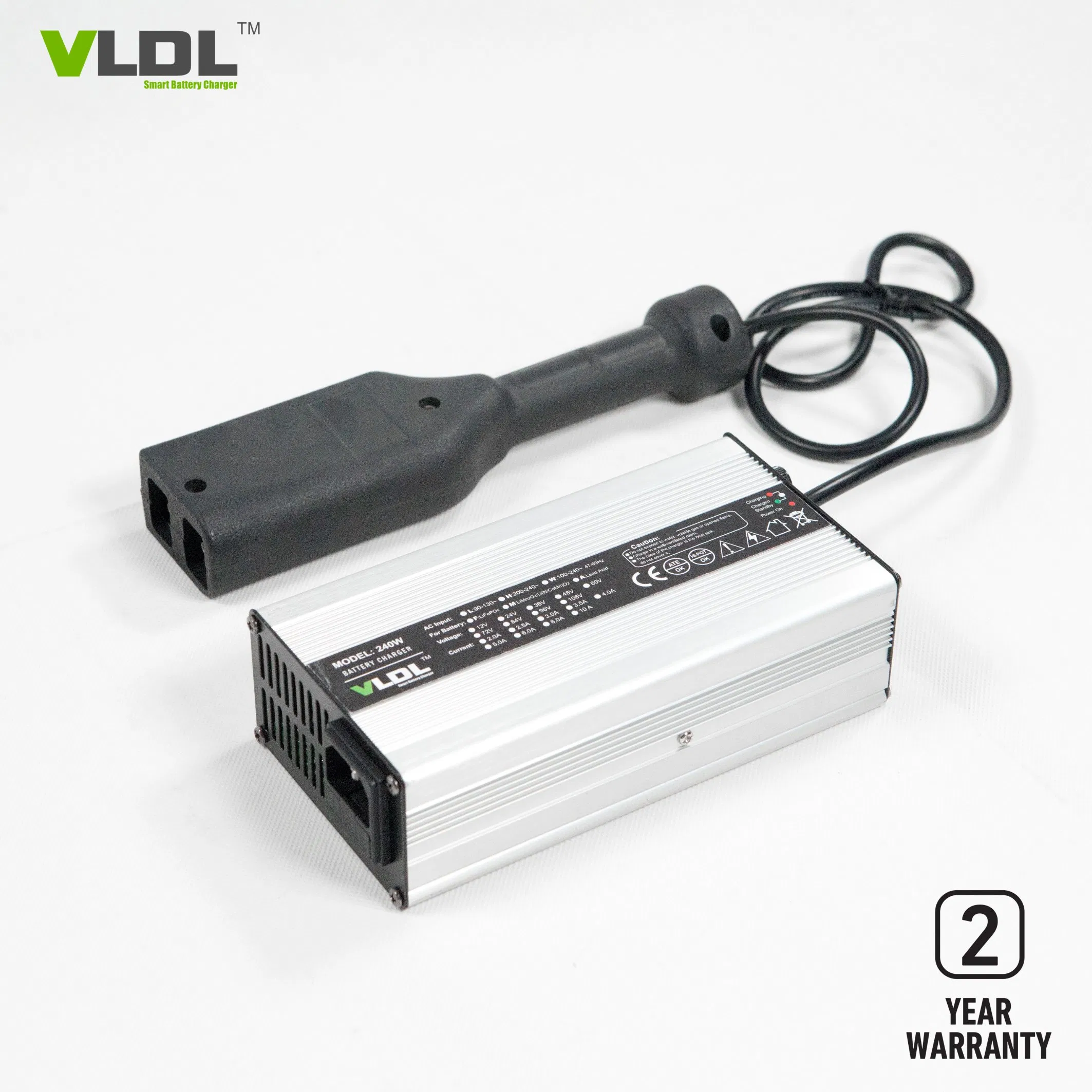

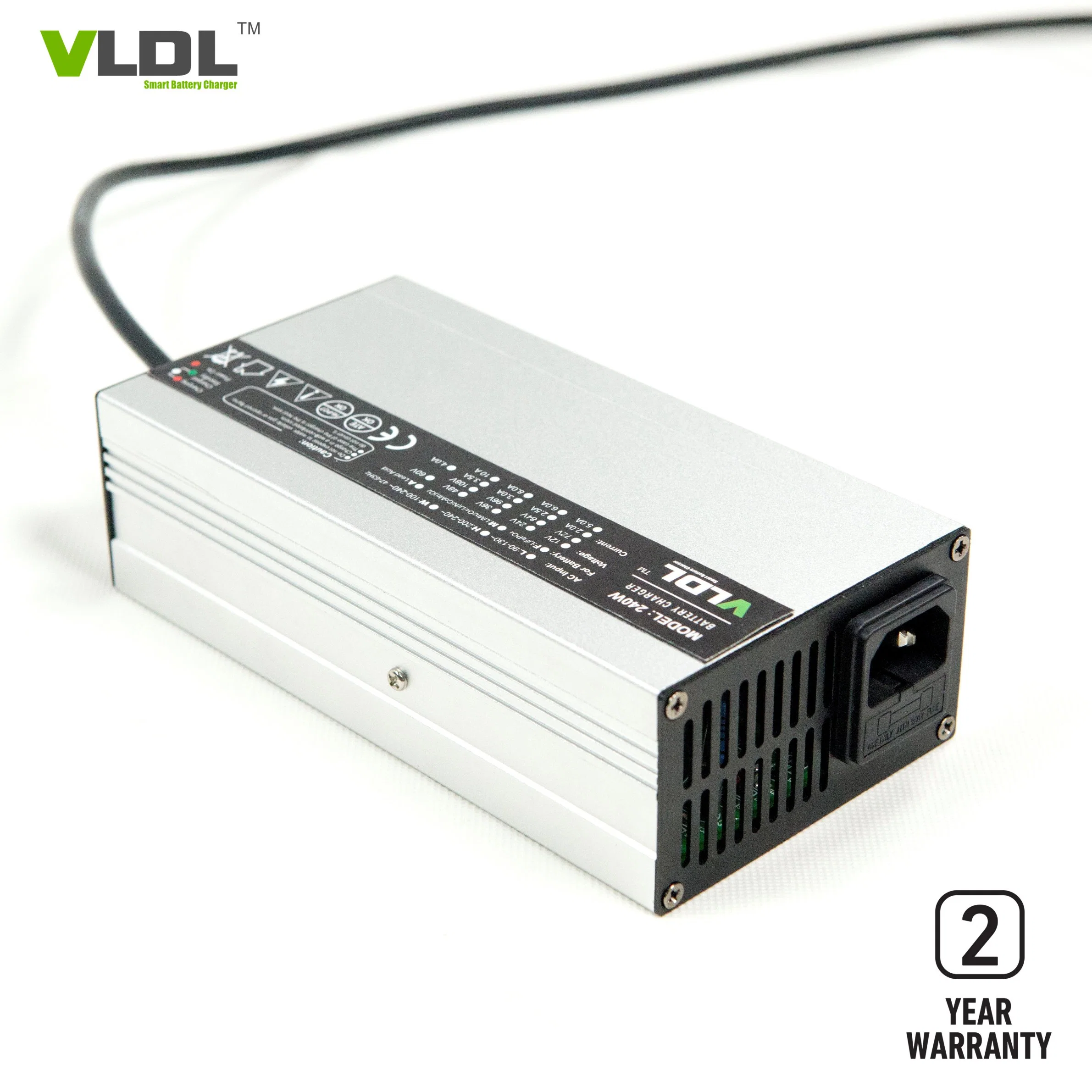

12V 10A Li-ion/LiFePO4/LiMoN2 Battery Charger

This 12V 10Amps intelligent battery charger is designed for lithium or lead-acid batteries, featuring worldwide 110 to 230Vac input. It provides a smart maximum charging voltage of 14.7V for lead-acid types and 14.6V for LiFePO4 batteries. Utilizing an intelligent 4-step charging process (pre-charge, CC, CV, and floating or automatic cut-off), it ensures fast, high-efficiency charging while maximizing battery lifespan. Housed in durable aluminum, it is both lightweight and portable.

Key Features:

Advanced high-frequency switching mode power supply technology.
DC output isolated from AC input for safety.
Universal worldwide Input 110 / 230Vac (90 ~ 264Vac), 50Hz~60Hz.
Charging parameters insensitive to AC input voltage variations.
Completely automatic 4-step charging cycle.
Dual LED indicators for status (Power/Charging/Full).
Multiple Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
High efficiency > 92% with forced fan ventilation.

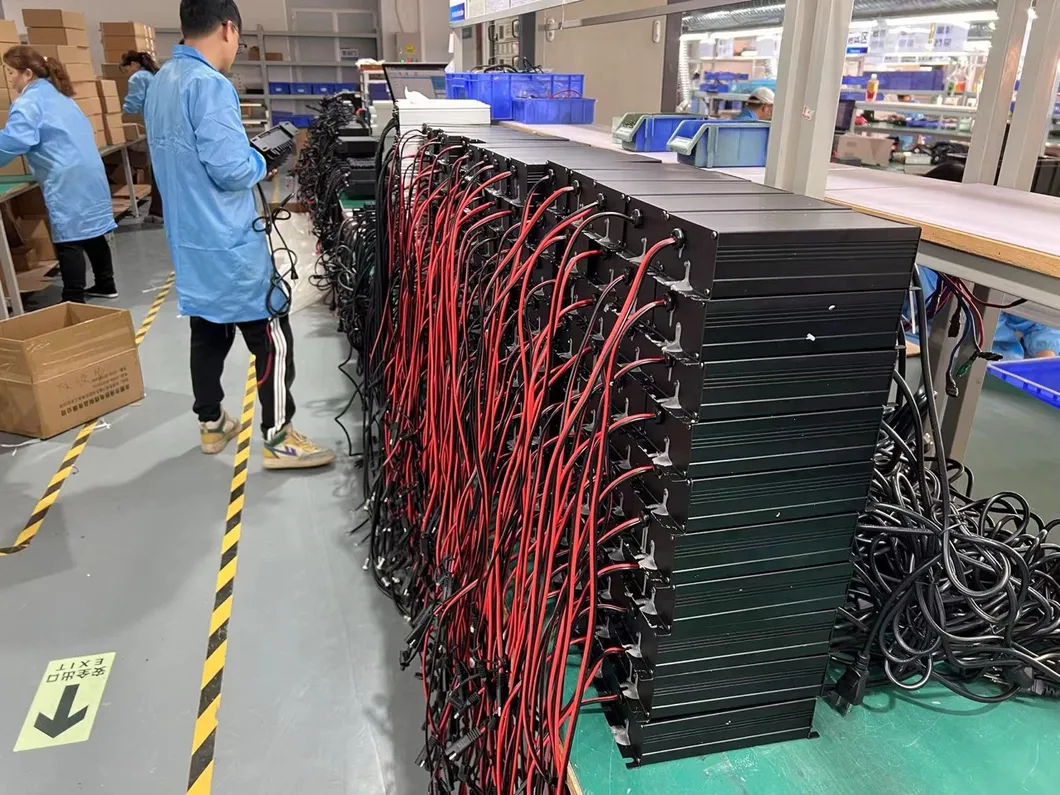

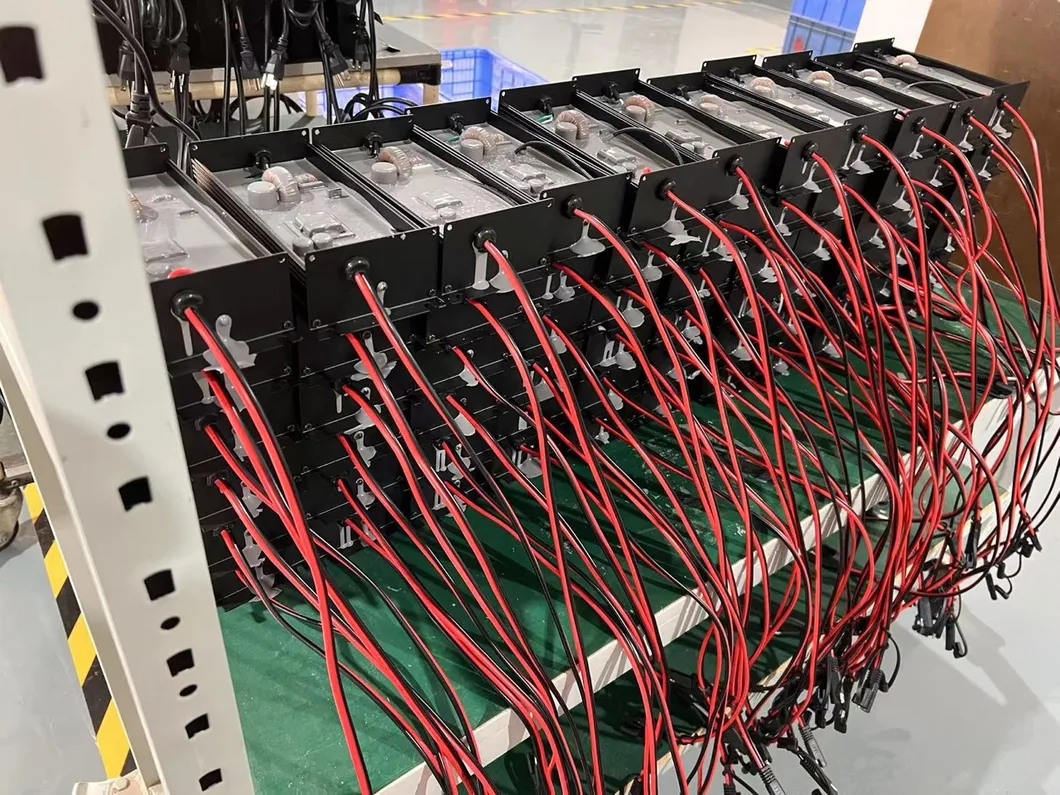

100% full load burn-in tested.
Rugged aluminum casing.

📊 Technical Parameters

Model	Battery Type	Float V	CV (V)	CC (A)	Switching
VL1210L	12V LiFePO4	-	14.6V	10A	CC5~8%
VL1210	12V Lead-acid	13.5V	14.7V	10A	CC20%
VL2407LM	24V Li-MnO2	-	29.4V	7A	CC5~8%
VL2407L	24V LiFePO4	-	29.2V	7A	CC5~8%
VL2407	24V Lead-acid	27.6V	29.4V	7A	CC20%
VL3605LM	36V Li-MnO2	-	42V	5A	CC5~8%
VL3605L	36V LiFePO4	-	43.8V	5A	CC5~8%
VL4804LM	48V Li-MnO2	-	54.6V	4A	CC5~8%
VL4804	48V Lead-acid	55.2V	58.8V	4A	CC20%

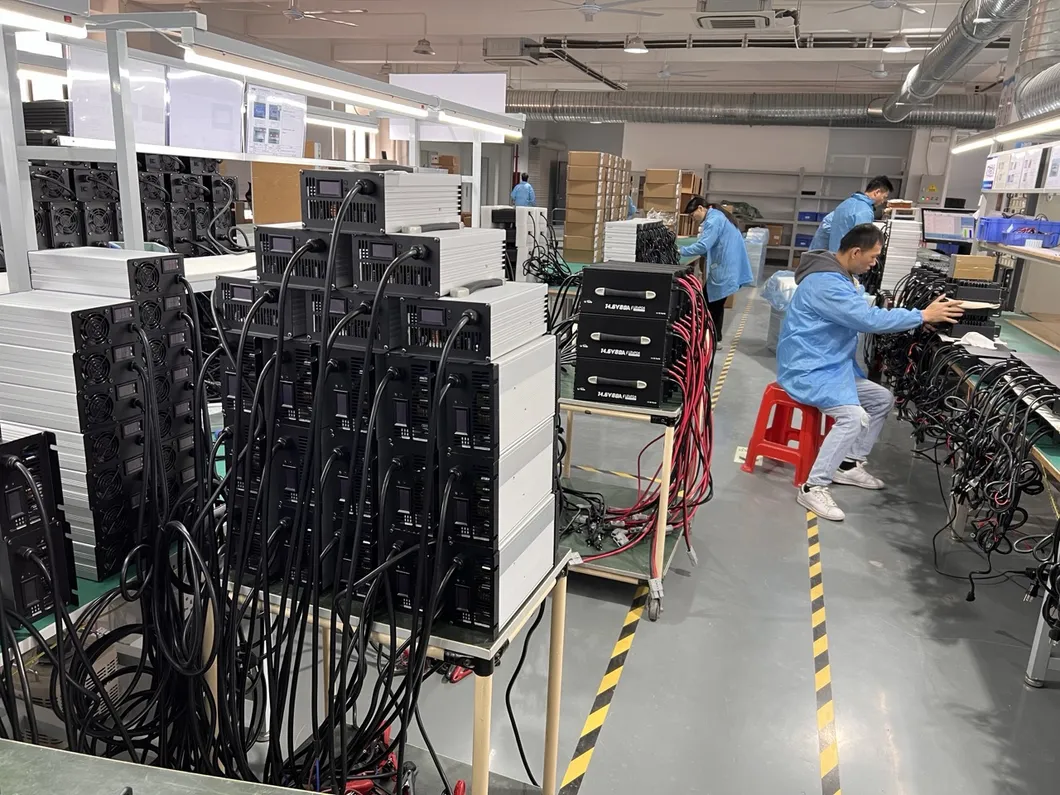

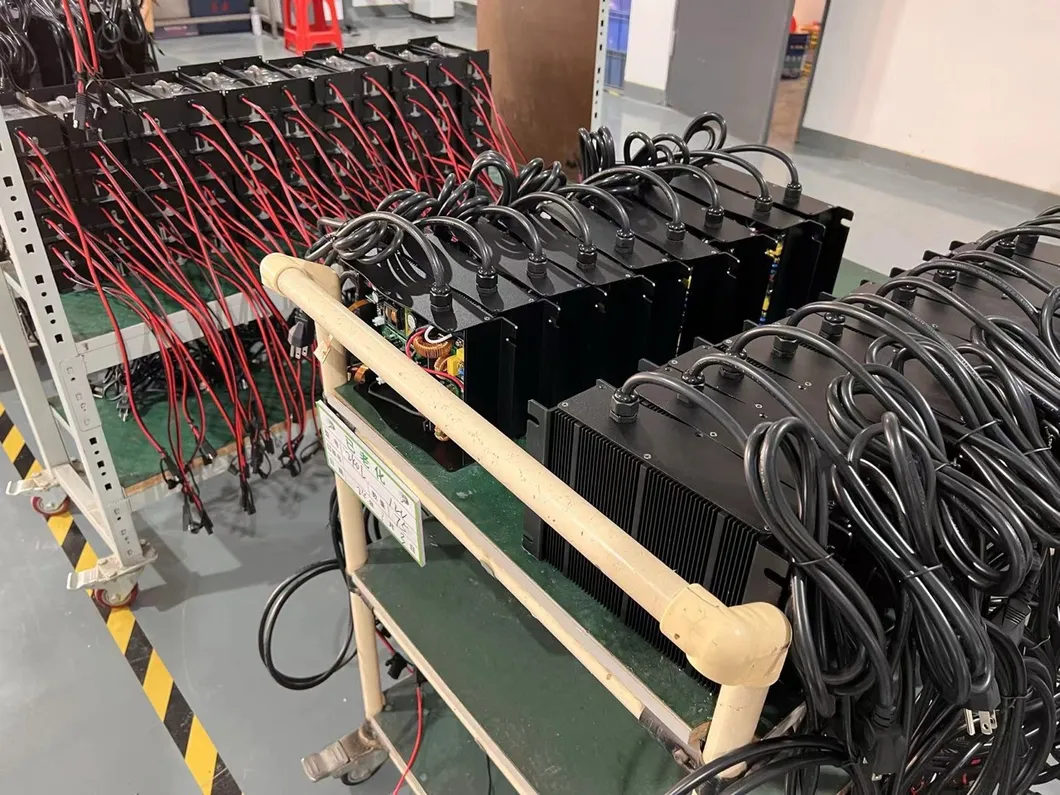

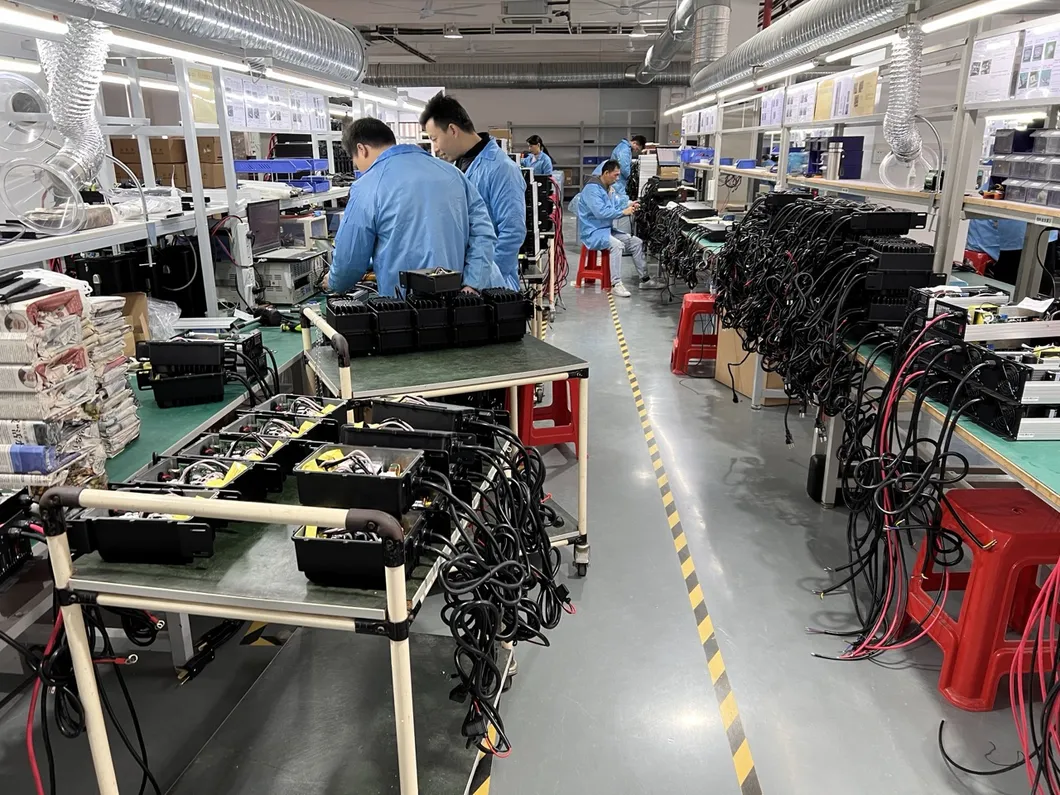

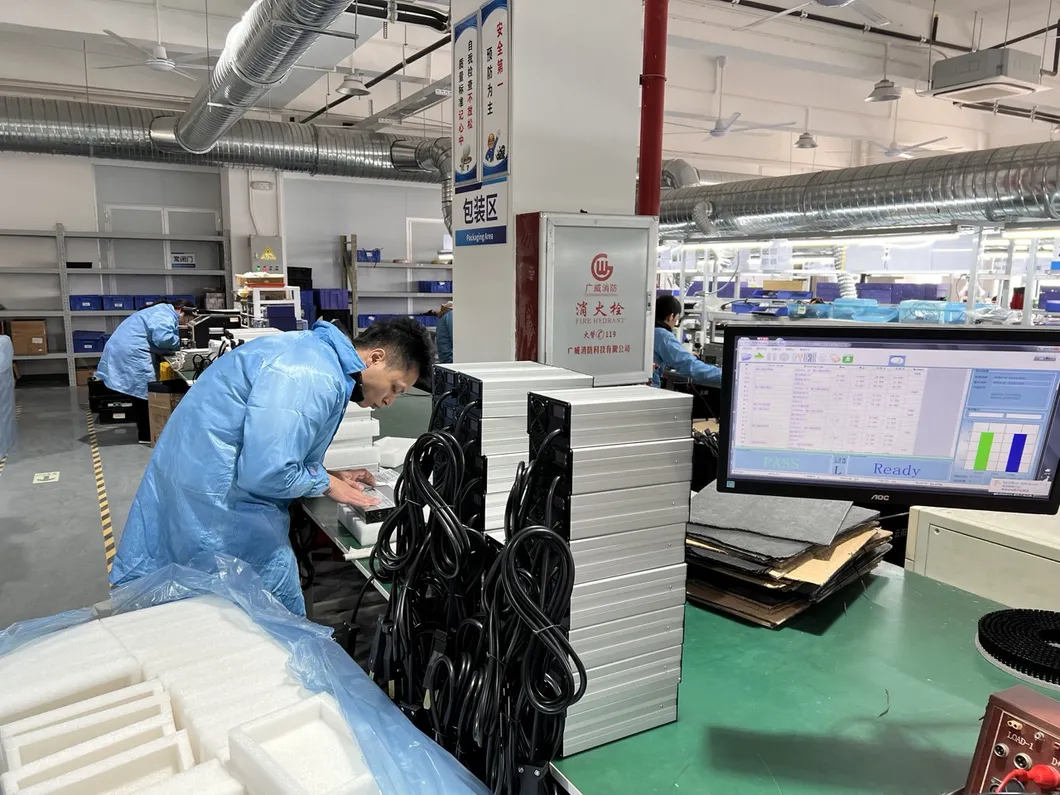

📸 Product Gallery

❓ Frequently Asked Questions

What do battery abbreviations like MF, GEL, and AGM mean?

These are different types of lead-acid batteries. GEL, AGM, MF (Maintenance Free), Calcium/Calcium, and Hybrid refer to the specific internal construction and electrolyte state of the battery.

What are the differences between LiFePO4, Li-ion, and Li-MnO2?

These abbreviations represent different lithium battery chemistries based on their cathode materials. Each type requires specific charging voltages for safety and efficiency.

How do I choose the correct battery charger?

Selection depends on battery type, capacity, application, and your requirements. We recommend providing your battery specifications to an engineer to determine the most suitable or customized charging solution.

Can I charge several batteries in parallel?

Yes, our chargers can handle multiple batteries in parallel as they are seen as one large battery. Ensure the total capacity is within the charger's recommended range and use high-quality wiring to handle potential high currents between batteries.

Is it safe to leave the charger connected indefinitely?

For lead-acid batteries, our chargers feature a maintenance (floating) mode using small currents. For lithium batteries without a BMS (Battery Management System), it is advised not to leave the charger unattended for extended periods.

What is the standard lead time for orders?

Standard lead time is typically 7 days. For larger quantities (500-1000pcs), it takes about 15 days. Custom ODM solutions generally require approximately 30 days depending on technical requirements.
