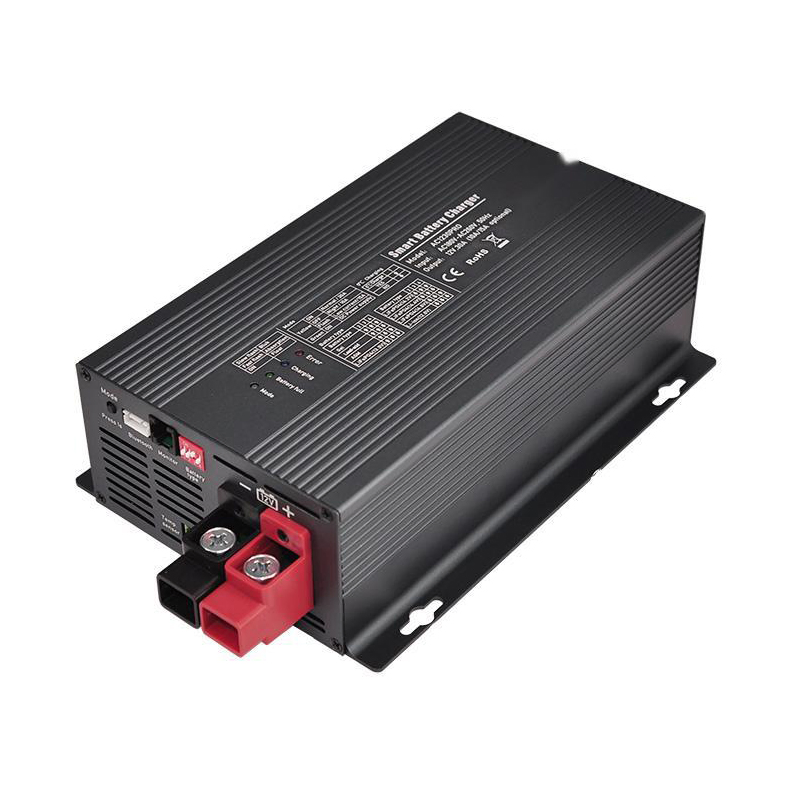

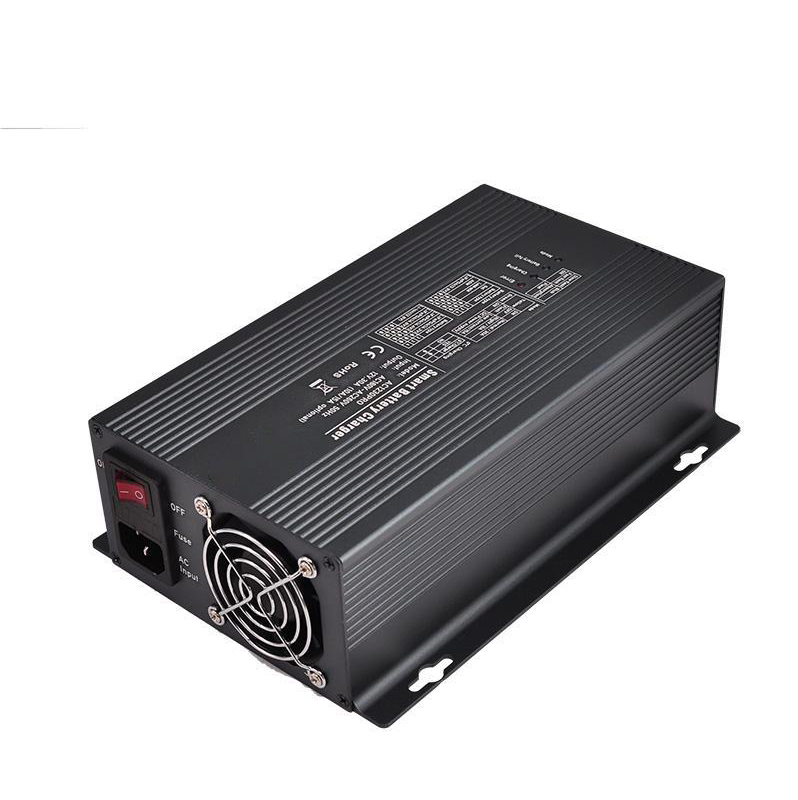

12V AC-DC Battery Charger for Lithium-Ion Gel Sealed AGM LiFePO4
12V AC-DC Battery Charger for Lithium-Ion Gel Sealed AGM LiFePO4
12V AC-DC Battery Charger for Lithium-Ion Gel Sealed AGM LiFePO4
12V AC-DC Battery Charger for Lithium-Ion Gel Sealed AGM LiFePO4
12V AC-DC Battery Charger for Lithium-Ion Gel Sealed AGM LiFePO4
1 / 5
12V AC-DC Battery Charger for Lithium-Ion Gel Sealed AGM LiFePO4
12V AC-DC Battery Charger for Lithium-Ion Gel Sealed AGM LiFePO4
12V AC-DC Battery Charger for Lithium-Ion Gel Sealed AGM LiFePO4
12V AC-DC Battery Charger for Lithium-Ion Gel Sealed AGM LiFePO4
12V AC-DC Battery Charger for Lithium-Ion Gel Sealed AGM LiFePO4

12V AC-DC Battery Charger for Lithium-Ion Gel Sealed AGM LiFePO4

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Overview
Model NO.
AC1260RPO
Input Voltage
12-24/12V
Type
Lead-Acid Battery Charger
Charging Type
Solar Charger
Principle
Half-Bridge Charger
Max. Charging Power
440W
Charge Battery Type
Gel, Sealed, AGM, LiFePO4, Lithium-Ion (Ncm)
Low Current Mode
15A
Night Mode
6.5A
Trademark
OEM
Packaging & Delivery
Package Size
32.00cm * 26.00cm * 15.00cm
Gross Weight
3.000kg
Lead Time
15 days (1 - 100 Pieces); To be negotiated (> 100 Pieces)
Product Description

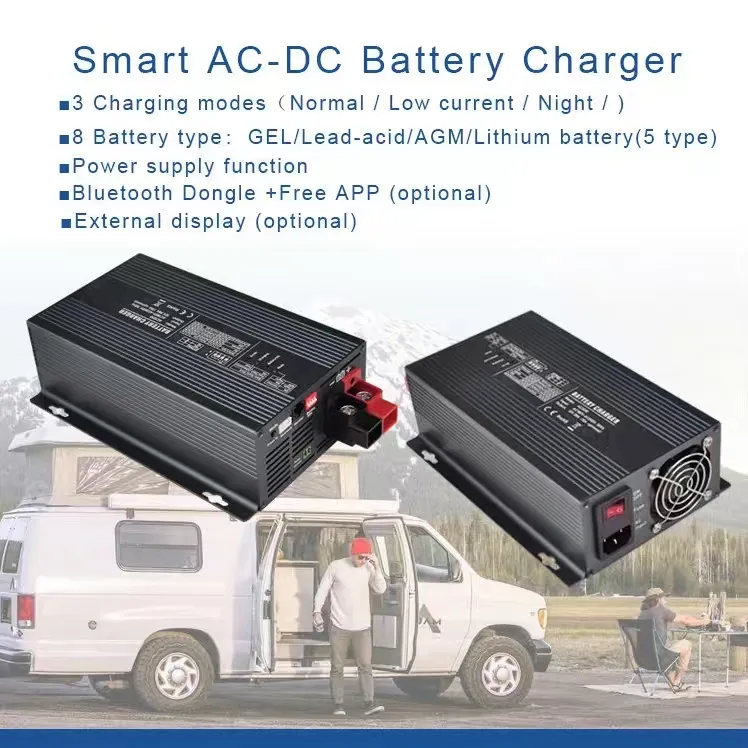

12V AC-DC Battery Charger

  • Charging current: 12V, 60A
  • Max. charging power: 870W
  • Input voltage: AC90-130V/60HZ or AC180-260V/50HZ

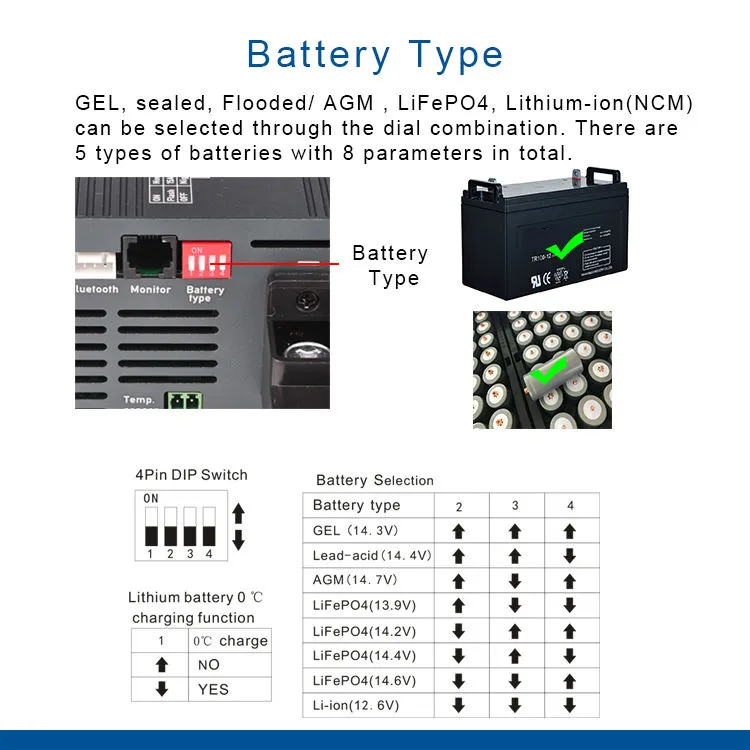

  • Battery compatibility: GEL, Sealed, AGM, LiFePO4, Lithium-ion(NCM) - 8 types optional

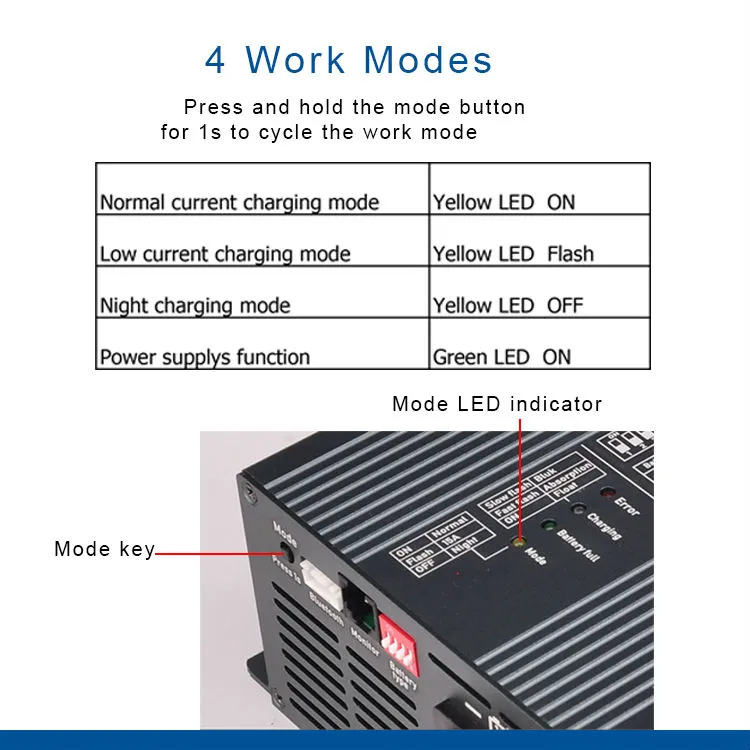

  • Advanced Modes: Low current mode (30A), Night mode (15A)

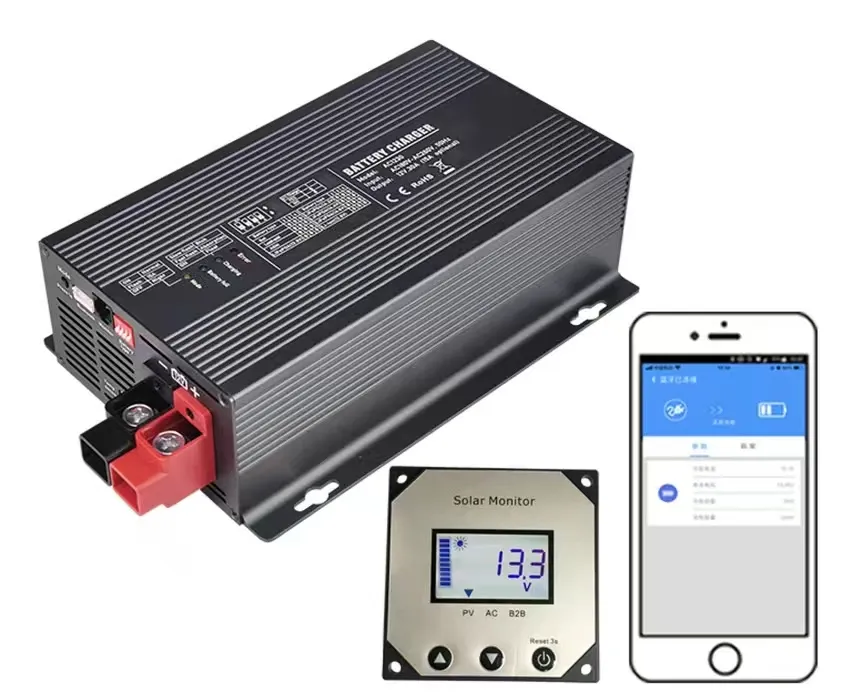

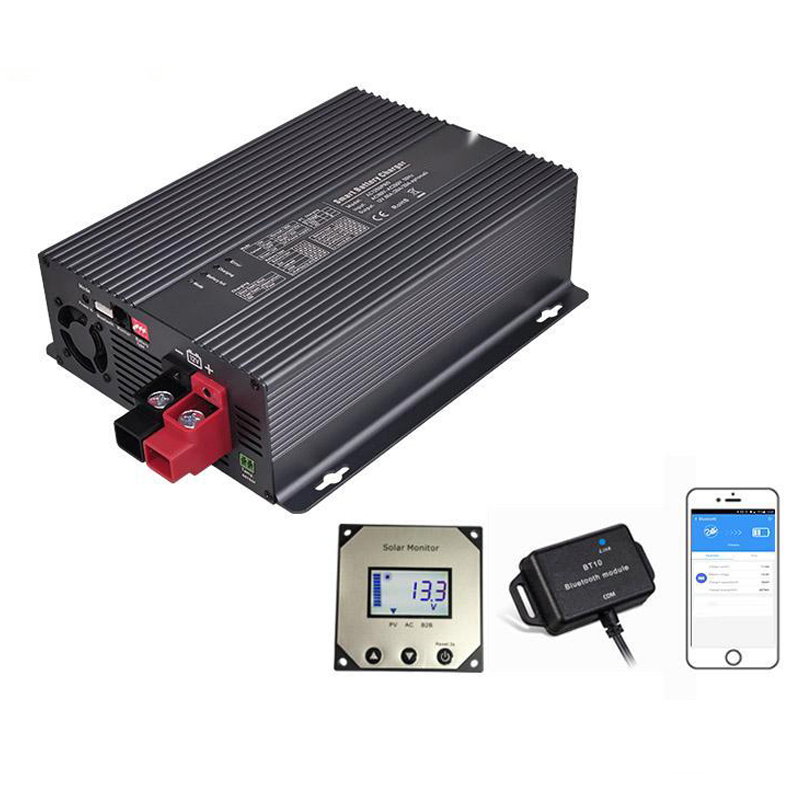

  • Accessories available: Monitor (MT-2), Bluetooth Dongle (BT10), Temperature Sensor (TRS)
Technical Data
ModelAC1260 Pro
Input voltage and frequency range180V-260VAC | 50HZ
Efficiency> 90%
Battery voltage12V
Max. output current - Normal mode30A
Max. output current - Low current mode15A
Max. output current - Night mode (quiet)10A
Recommended Max battery capacity300AH
Recommended Min battery capacity100AH

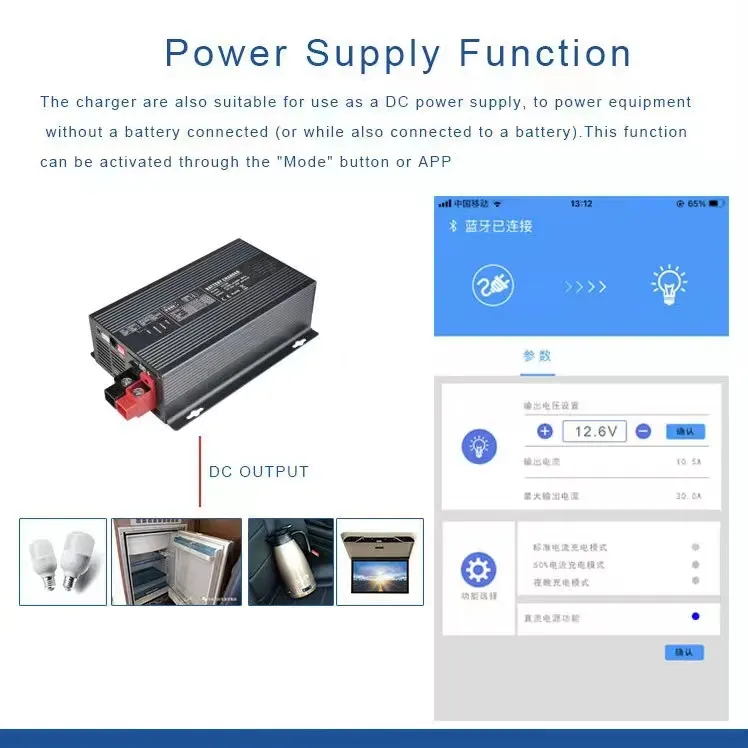

DC Power supply voltage/current (Default)12.6V / 30A
DC Power supply voltage/current (APP setting)12V - 13.8V
Temperature compensation (Except lithium)18mV/ºC

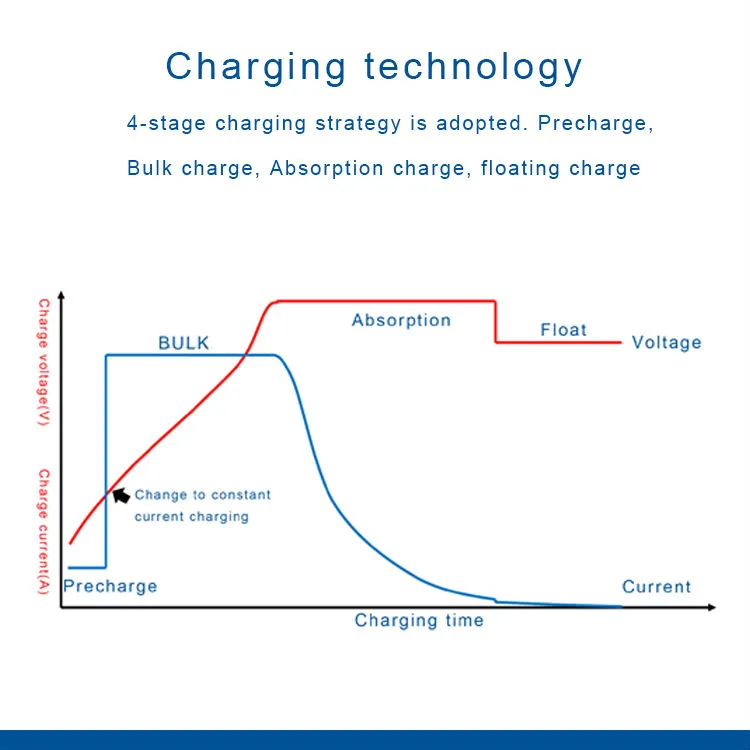

Charge algorithm4-stage adaptive
ProtectionReverse polarity (fuse), output short circuit, over temperature
Operating temperature-20 to +50°C

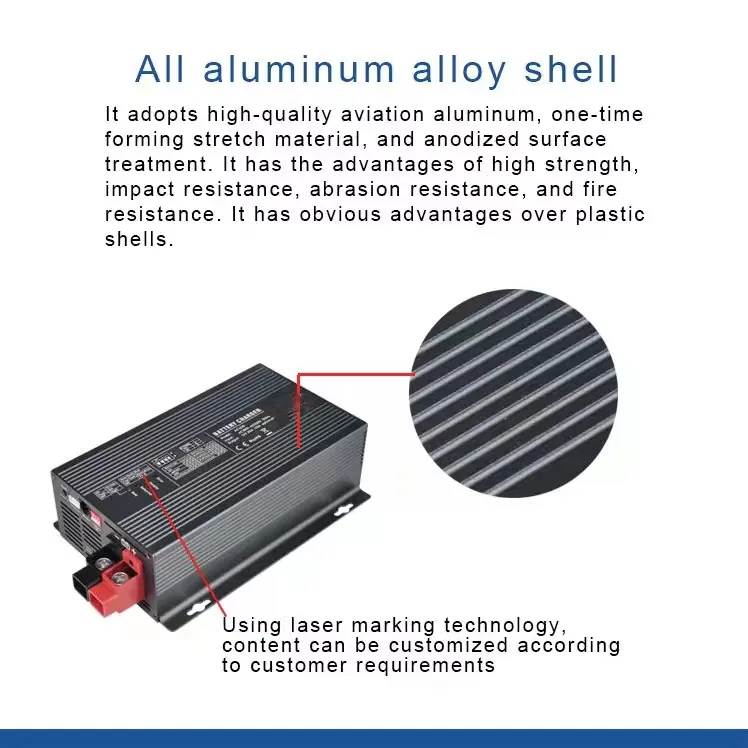

Material & ColourAluminium, Iron grey
Battery connectionM8 screw
Protection categoryIP22 (indoor use)
Weight1.4 kg
Dimensions (h x w x d)221 × 155 × 70mm
Function & Display

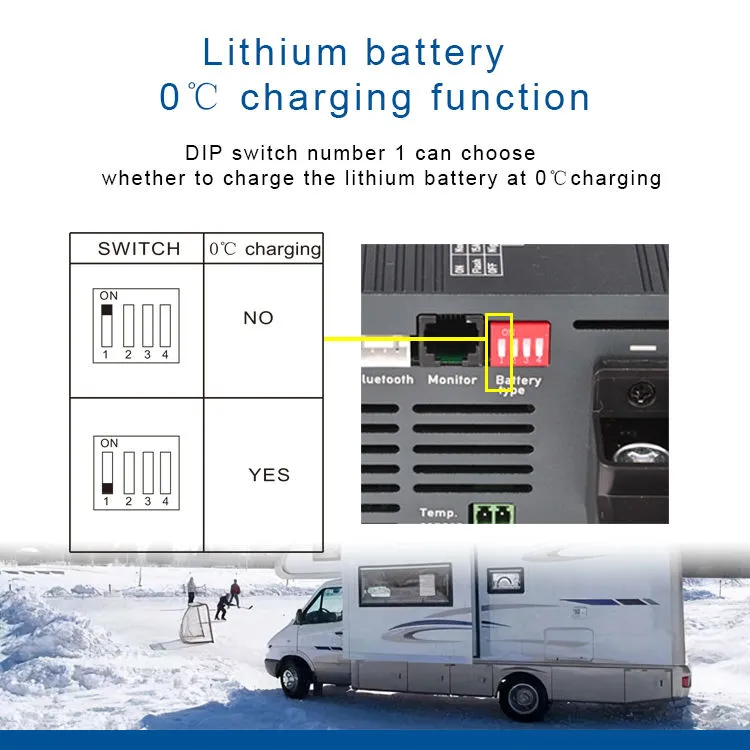

Function 1 Function 2 Function 3 Function 4 Function 5 Function 6 Function 7 Function 8 Function 9 Function 10
Installation of the Unit
  • Install the charger near the board supply battery for short charging cables on a clean, even, and hard mounting surface.
  • Ensure the location is moisture-proof, water-proof, and corrosion-proof.
  • Maintain at least 10cm of space behind the charger controller to allow the fan to dissipate heat effectively.
  • Choose appropriate cable specifications, lengths, and fuses; avoid reverse connection to prevent equipment damage.
Why Choose us?
  • Expertise in researching and manufacturing specialized electronics since 2006.
  • Dedicated pre-sales and after-sales service with professional engineers offering tailored solutions.
  • Multi-department collaboration ensuring high standards in procurement, production, and inspection.
  • All products come with a comprehensive one-year warranty for peace of mind.
Frequently Asked Questions (FAQ)
Q1: Which battery types can this charger support? A: It supports 8 optional battery types including GEL, Sealed, AGM, LiFePO4, and Lithium-Ion (NCM).
Q2: What are the benefits of the Night Mode? A: Night Mode reduces the output current to 15A (or 10A depending on the model setting) to ensure quiet operation during the night.
Q3: Does the charger have safety protection features? A: Yes, it includes protection against reverse polarity (via fuse), output short circuits, and over-temperature scenarios.

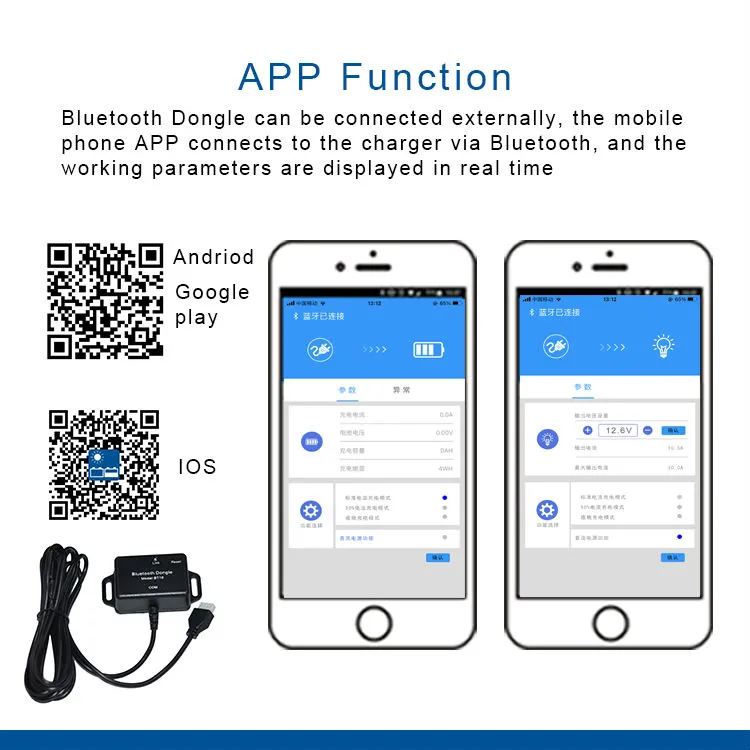

Q4: Can I monitor the charging status via my phone? A: Yes, by using the optional Bluetooth Dongle (BT10), you can monitor and adjust settings via a dedicated app.
Q5: Is this charger suitable for outdoor installation? A: This unit has an IP22 protection category, meaning it is designed for indoor use and should be protected from direct water exposure.
Q6: What is the recommended battery capacity for the AC1260 Pro? A: We recommend a battery capacity between 100AH and 300AH for optimal charging performance.
