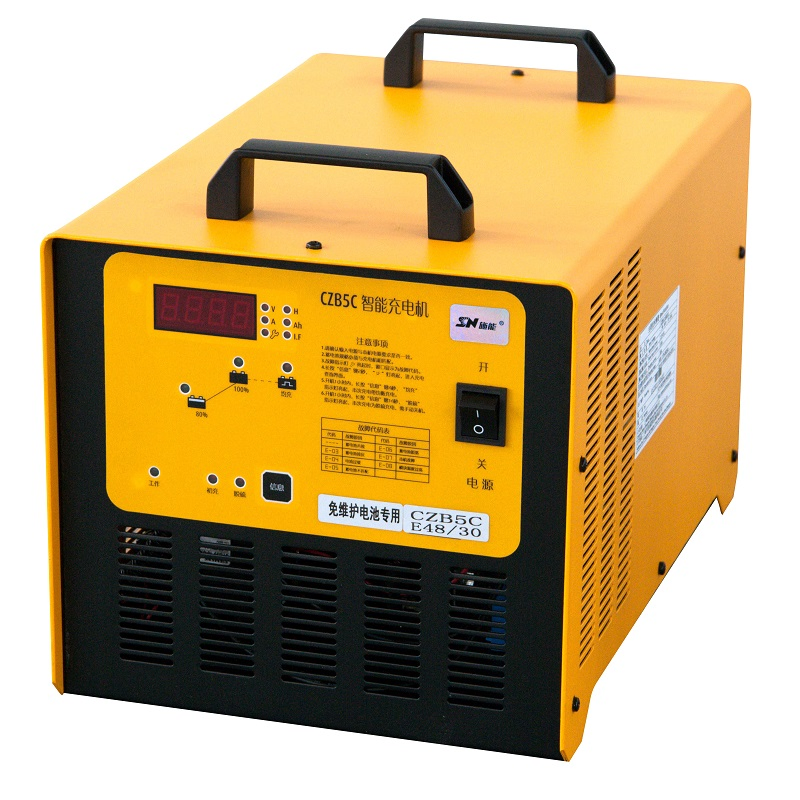

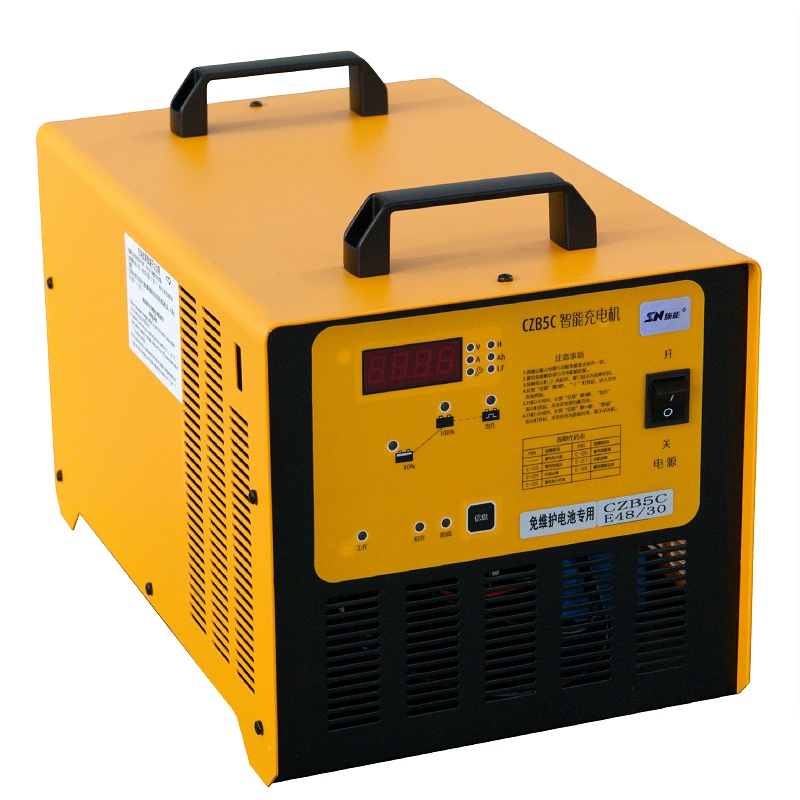

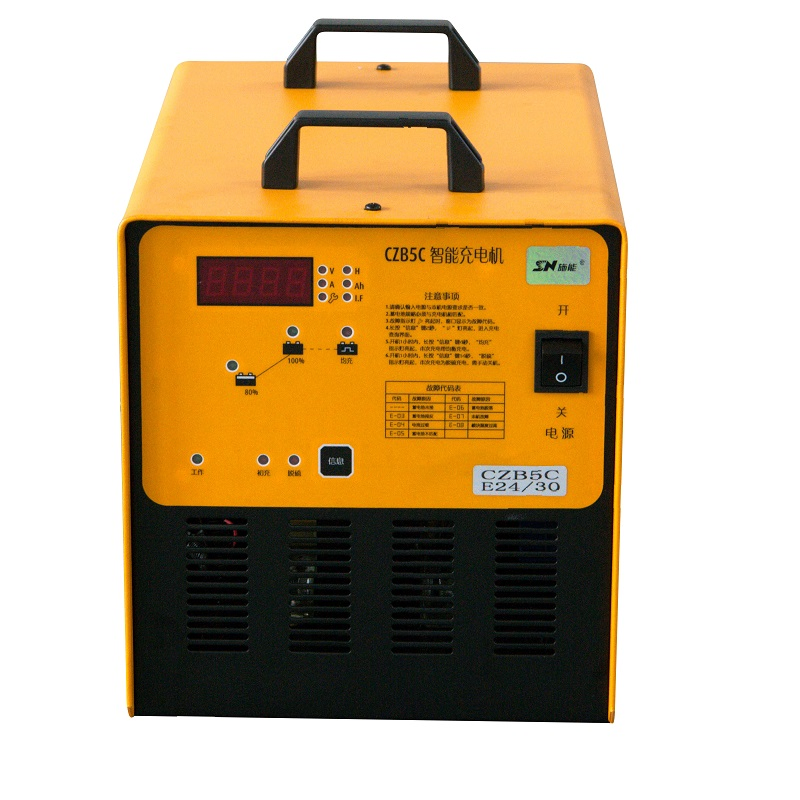

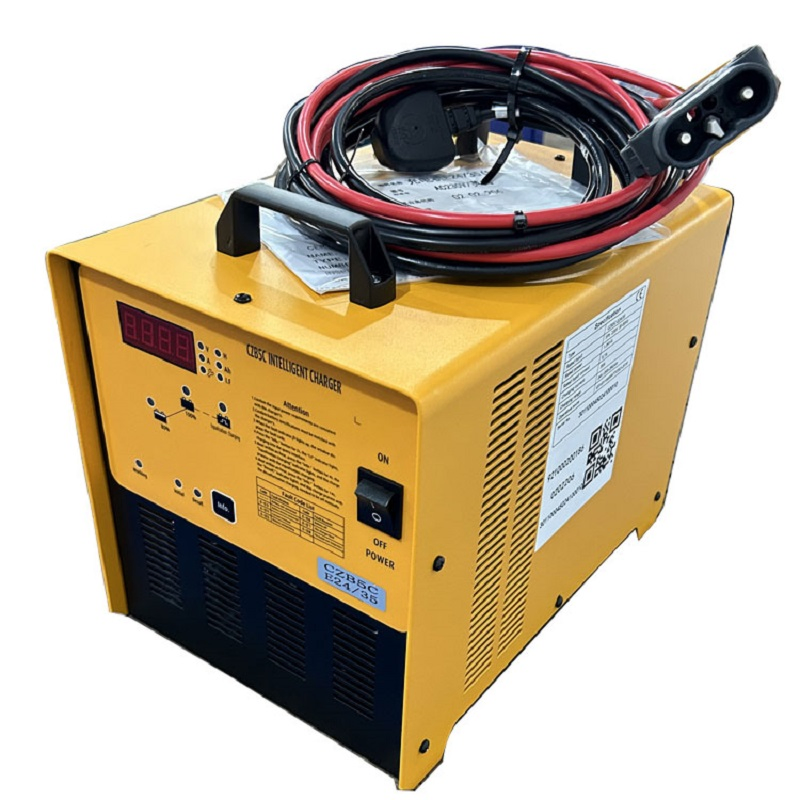

Sn Czb5c Lead Acid Battery Charger 24V 50A for Forklift Battery Charger

1 / 5

Sn Czb5c Lead Acid Battery Charger 24V 50A for Forklift Battery Charger

Customization:	Available
Type:	Lead Acid Battery
Charger Type:	Electric Charger

Send Inquiry

Product Description

Basic Info & Specifications

Model NO.

CZB5C-E

Nominal Voltage

24V

Charger Style

Intelligent Charger

Compatible Battery

12V 24V Lead Acid

Size

24V/50A

Certification

Input Power

960W

Input Current

DC Current

50A

Battery Range

290-400ah

Net Weight

25.5kg

Warranty

1 Year

Product Features

Advanced Technology: Combines leakage transformer with silicon-controlled rectifier and Micro-computer to improve the Wsa+Pulse charging characteristic curve.

Extended Battery Life: Pulse charge is performed before gas emissions and in late stage of recharge, greatly prolonging battery life.

Intelligent Control: Dynamic tracking and auto-adjust charging parameters through PID control technology.

Full Protection: Features open circuit, reverse connection, overload, and short circuit protection with alarm functions.

Data Logging: Recording function for the past 30 times charging results for better maintenance tracking.

Technical Parameters Table

Type(V/A)	Main Power	Input Power (KVA)	Input Current(A)	Output Current(A)	Battery V/AH	Size(mm)	Weight(Kg)
CZB5C-E24V/20A	Single Phase	0.75	3.4	20	24V/115-160AH	240350260	21.0
CZB5C-E24V/50A		1.9	8.5	50	24V/290-400AH	240350260	25.5
CZB5C-E36V/30A		1.7	7.7	30	36V/175-240AH	240350260	23.5
CZB5C-E48V/30A		2.3	10.2	30	48V/175-240AH	240350260	28.0
CZB5C-D48V/80A	Three Phase	6.0	9.1	80	48V/465-640AH	466360785	68.0
CZB5C-D80V/100A		12.5	19.0	100	80V/580-800AH	526360883	95.0
CZB5C-D80V/120A		15.0	22.8	120	80V/700-960AH	526360883	107.0

Frequently Asked Questions

Q1: What types of batteries is this charger compatible with?

The charger is designed for various industrial batteries, primarily focusing on lead-acid and lithium battery types used in forklifts and electric vehicles.

Q2: What is the warranty period for the CZB5C series?

All products come with a one-year warranty, along with continuous technical support to ensure long-term operational stability.

Q3: How does the charger protect the battery from damage?

It utilizes PID control for dynamic tracking and pulse charging characteristics to prevent excessive gas emission, while including protection against short circuits, overloads, and reverse connections.

Q4: Does this charger support initial charging for new batteries?

Yes, it features both initial charging and desulfuration charging functions specifically for new batteries or those that haven't been used for a long time.

Q5: Can I check the history of previous charging cycles?

Yes, the intelligent micro-computer system can record the results of the past 30 charging cycles for maintenance and monitoring purposes.

Q6: What certifications does the product hold?

The products meet international standards with certifications such as CE, UL, ECM, and SGS.
