Contact heater vs Coolant heater
In order to evaluate which engine heater concept that is most efficient we have conducted tests with Euro 6 diesel engines using contact heaters, PTC heaters with pumps, and coolant element heaters.
Conclusions:
- A contact heater is most efficient in order to preheat the engine block and oil.
- A contact heater will increase the temperature in the engine oil approximately 30-35°C more than a coolant element heater.
- A contact heater will increase the temperature in the engine block approximately 20-25°C more than a coolant heater.
- A coolant heater will increase the temperature at the cylinder head approximately 30°C more than a contact heater.
- By using a coolant heater the cabin temperature will for the 16 first minutes of the drive be 3-5°C above the same as for a contact heater.
- Both the contact heater, the PTC coolant heater and the conventional coolant element heater are all almost reducing regulated emissions and fuel consumptions at the same level (less than 2% variation).
- A contact heater (300W) will normally use 42% less energy to preheat the engine, compared to a coolant heater (550W).
- Cold start: With WarmUp installed you start the drive with 22°C in the cabin, compared to reaching 20°C after 18 minutes of driving in a cold-started car.
- A contact heater will increase the temperature in the engine oil, and ensure the evaporation of diesel in the system to work in cold conditions.

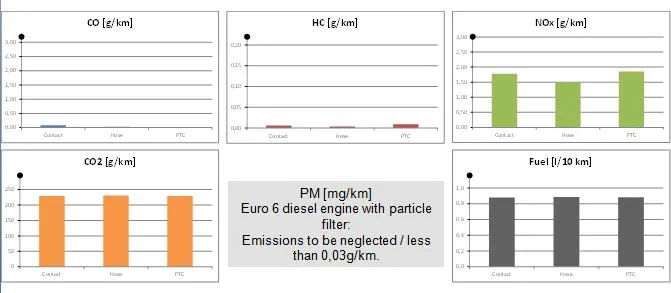

Emission comparison related to a coldstart

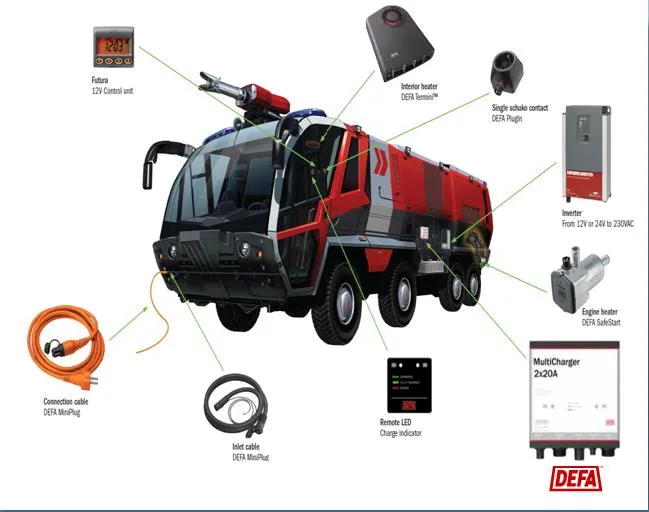

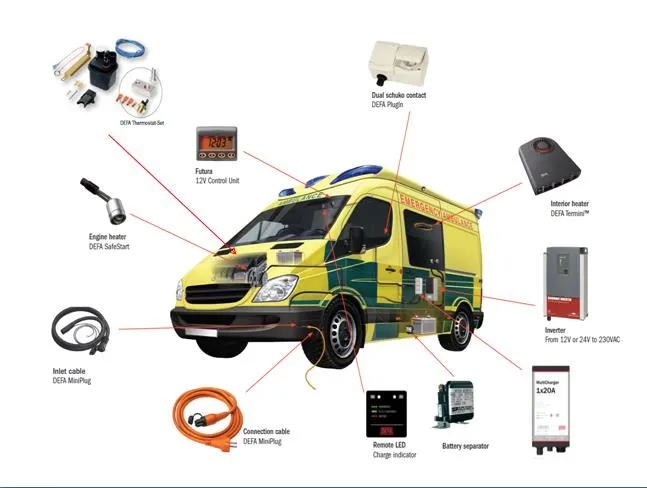

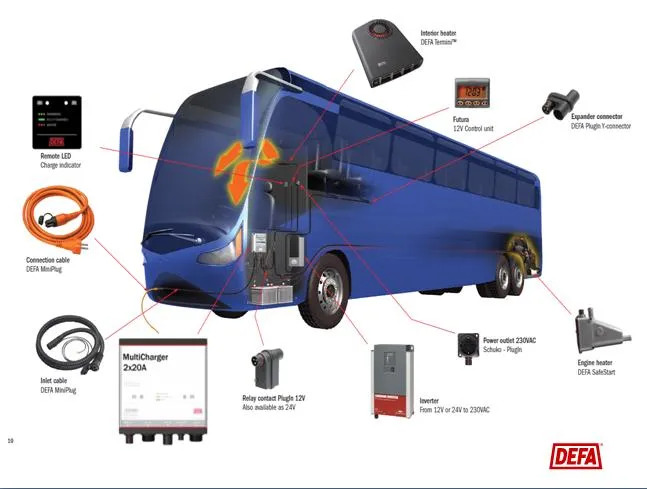

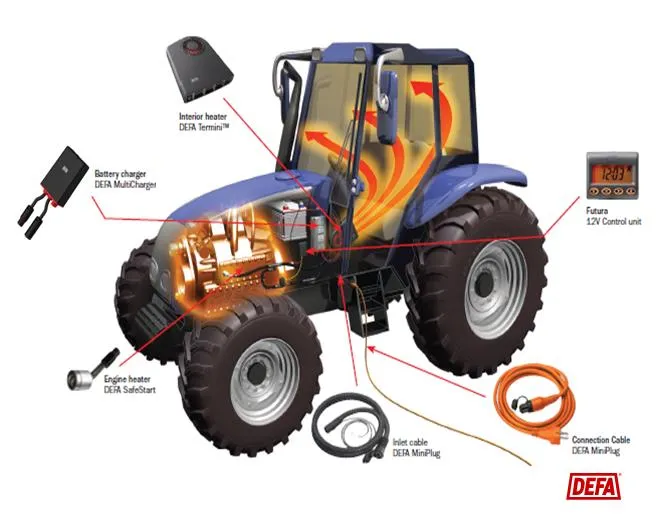

Application
Certificate & Sales Areas

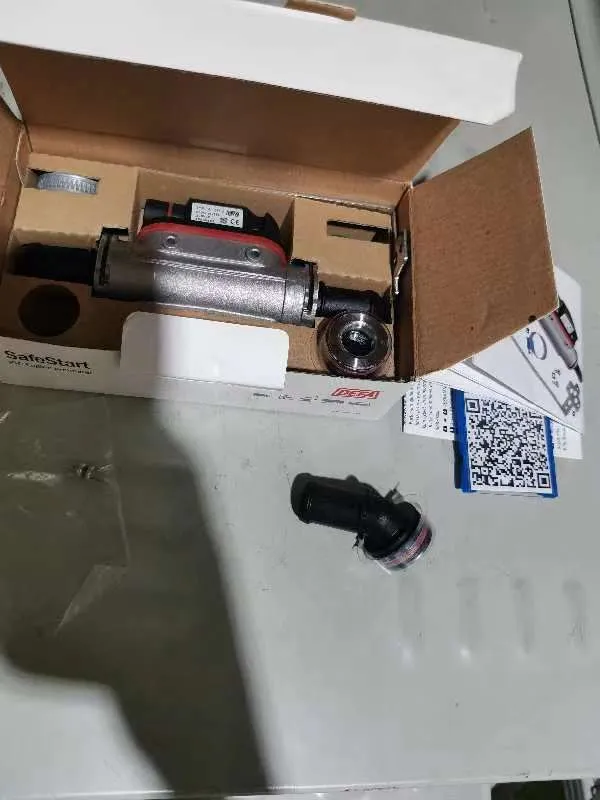

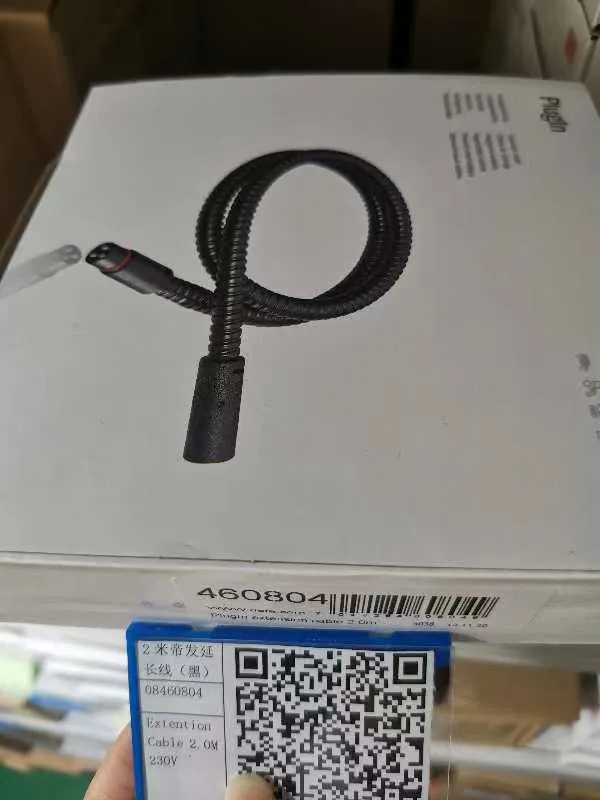

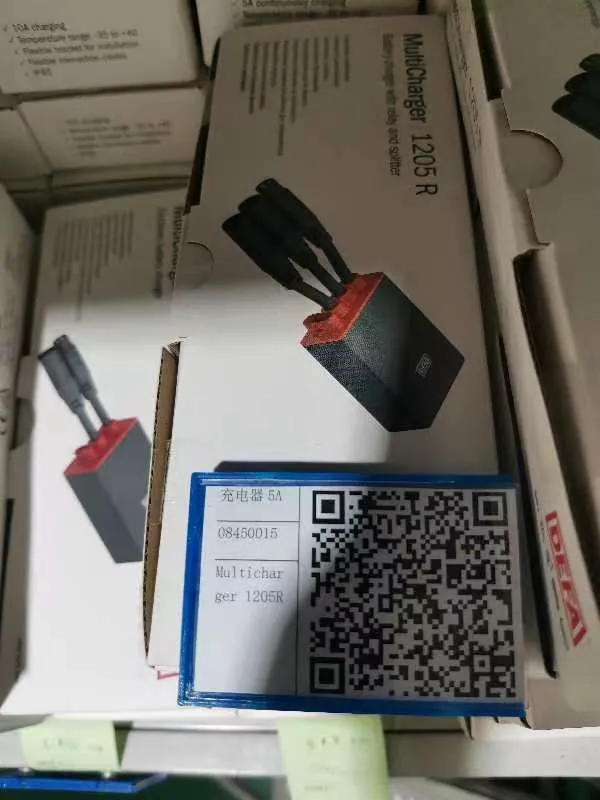

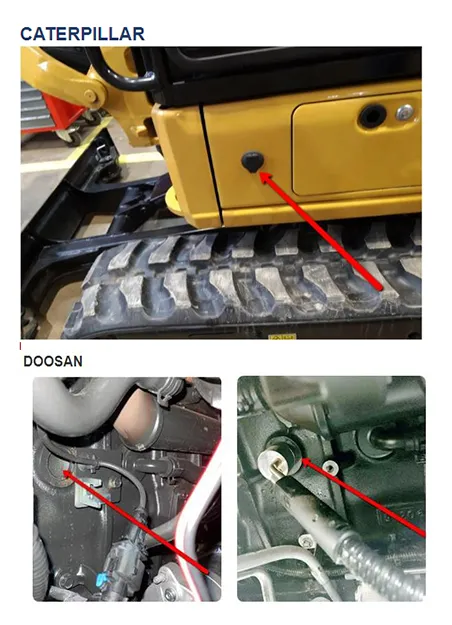

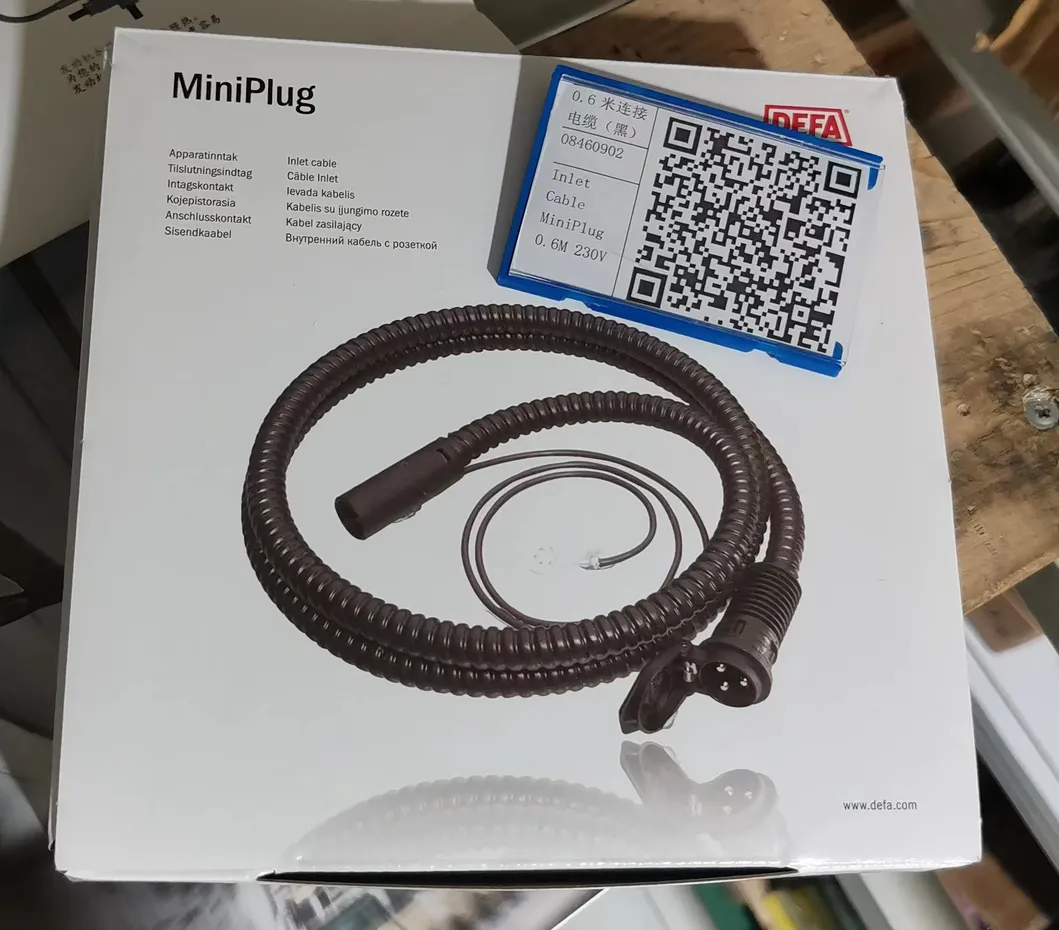

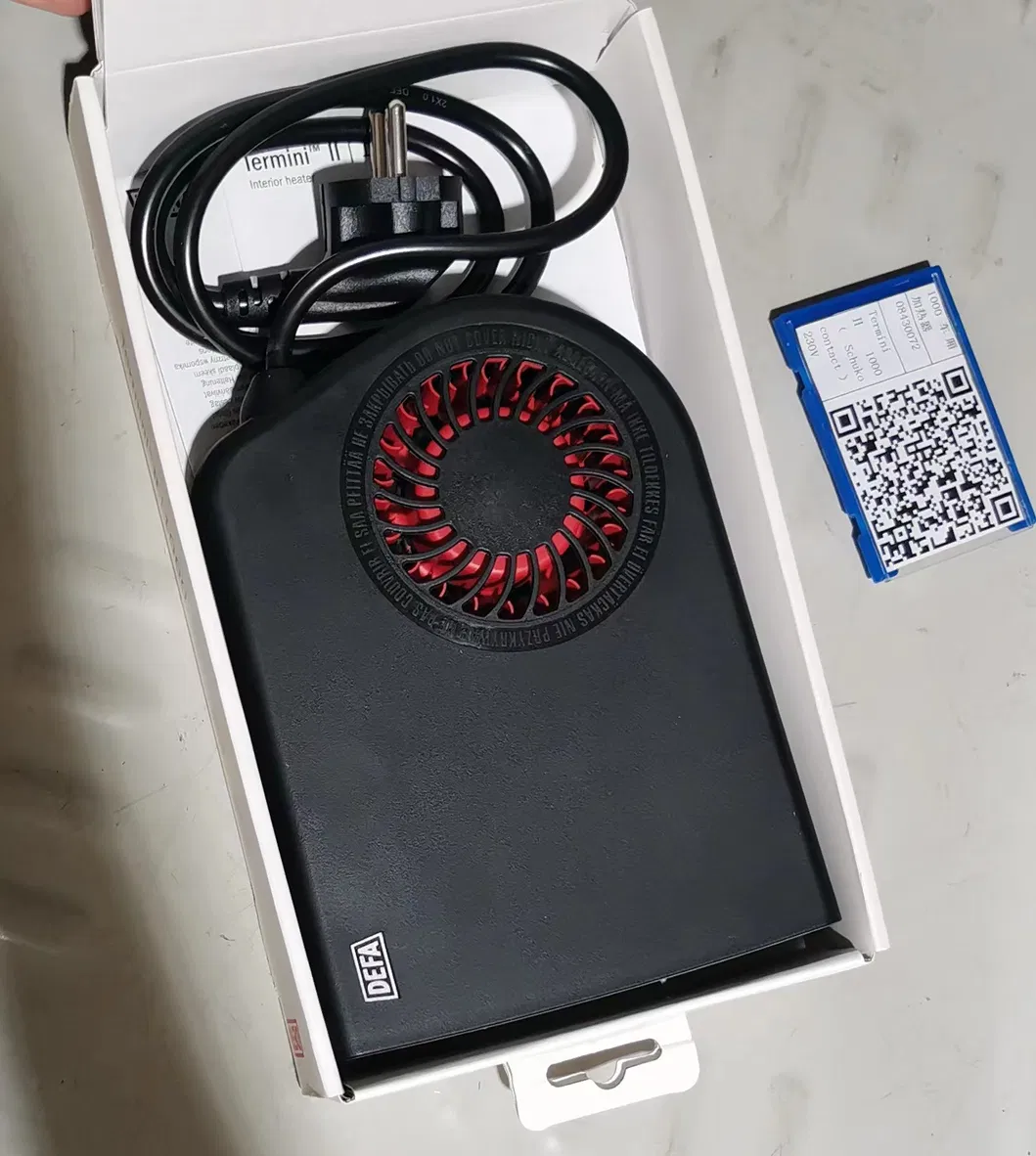

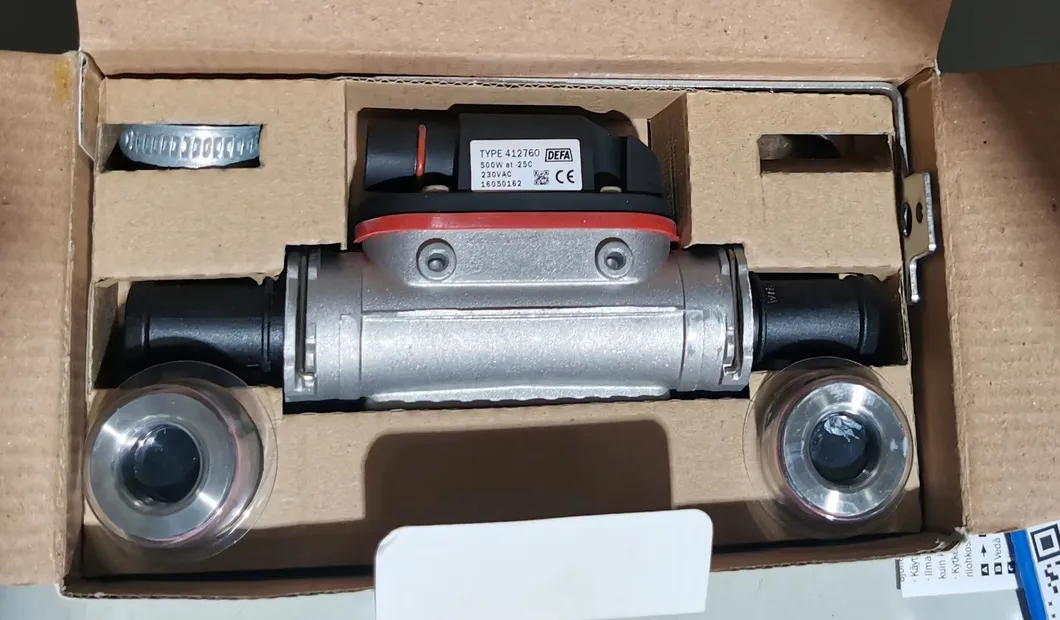

Example Showcase

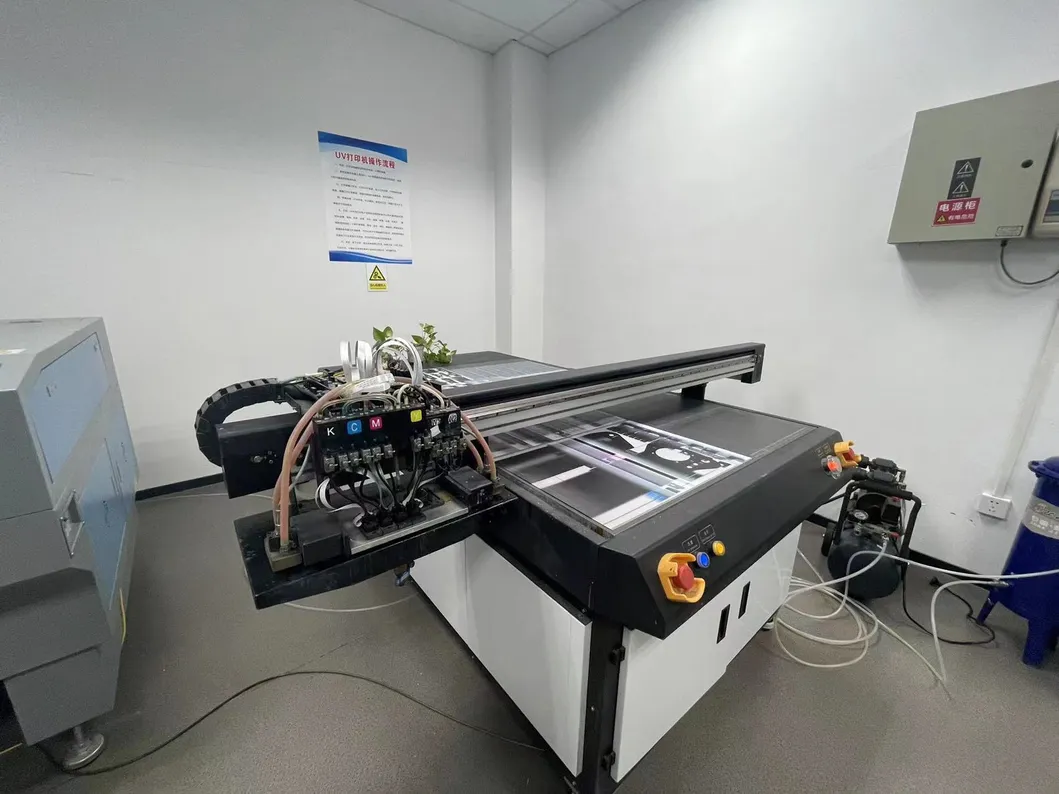

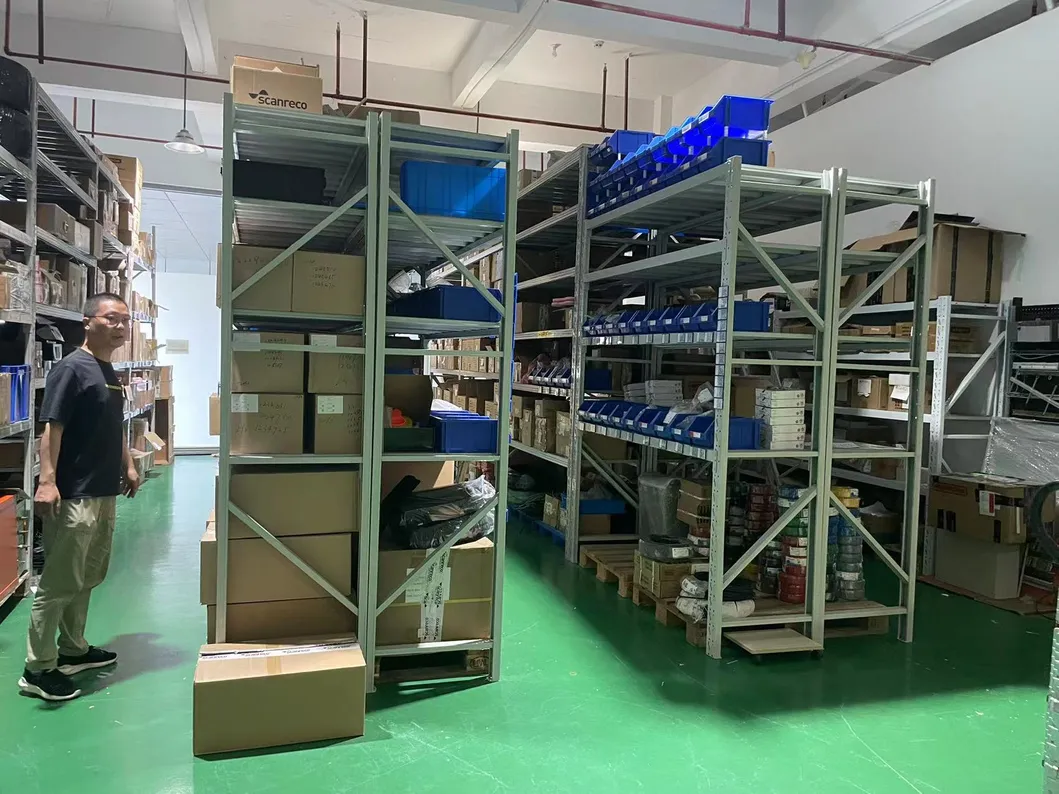

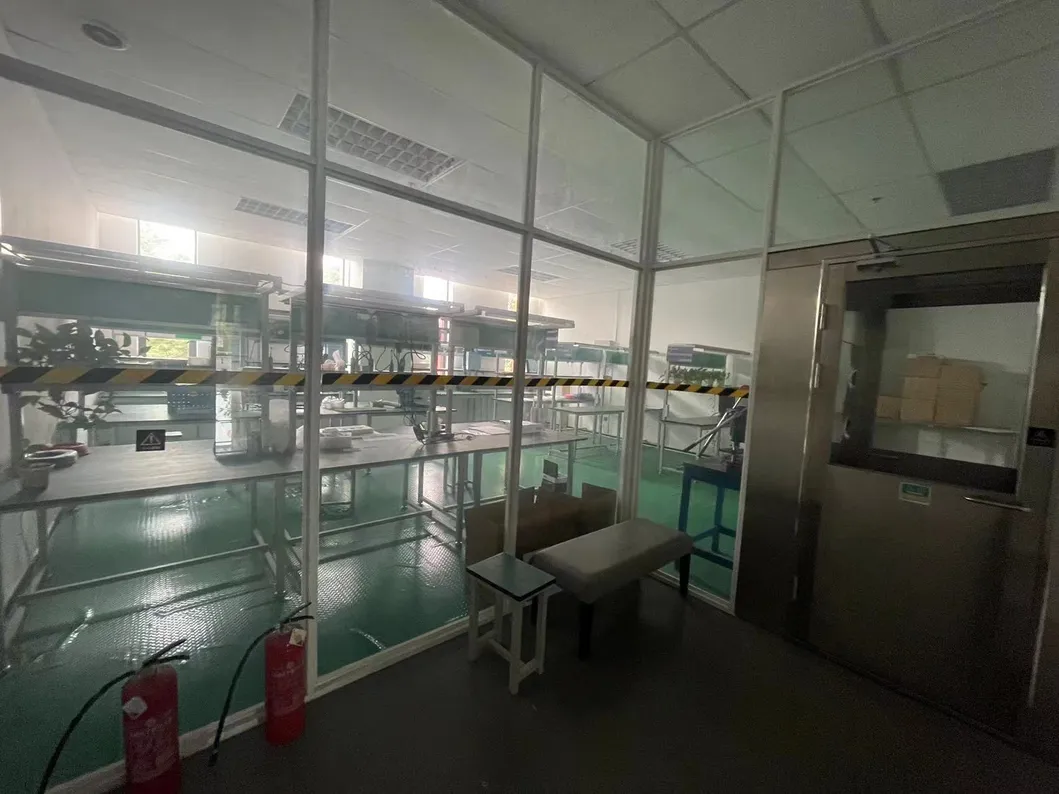

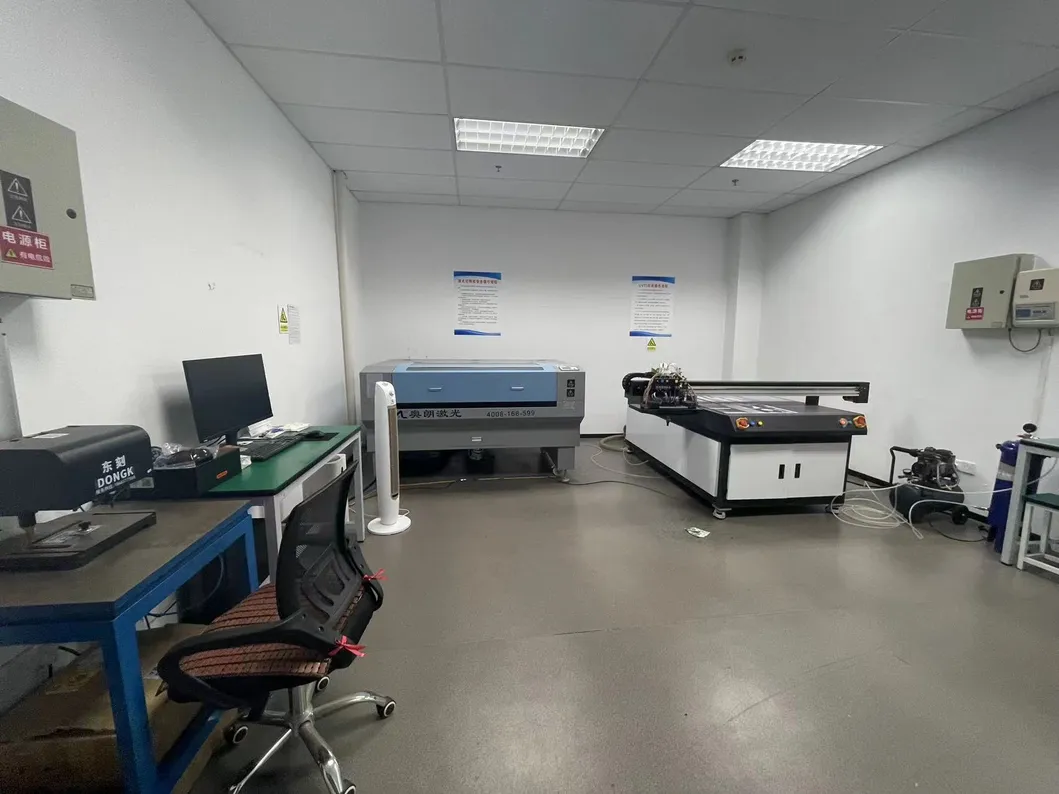

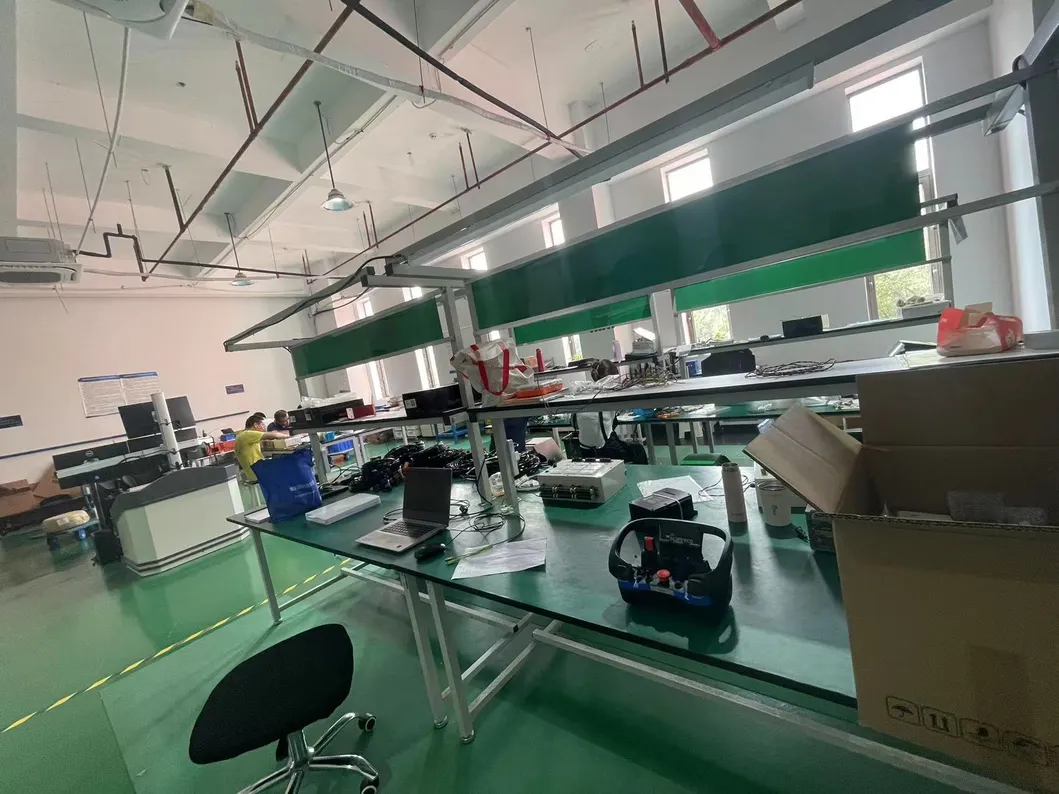

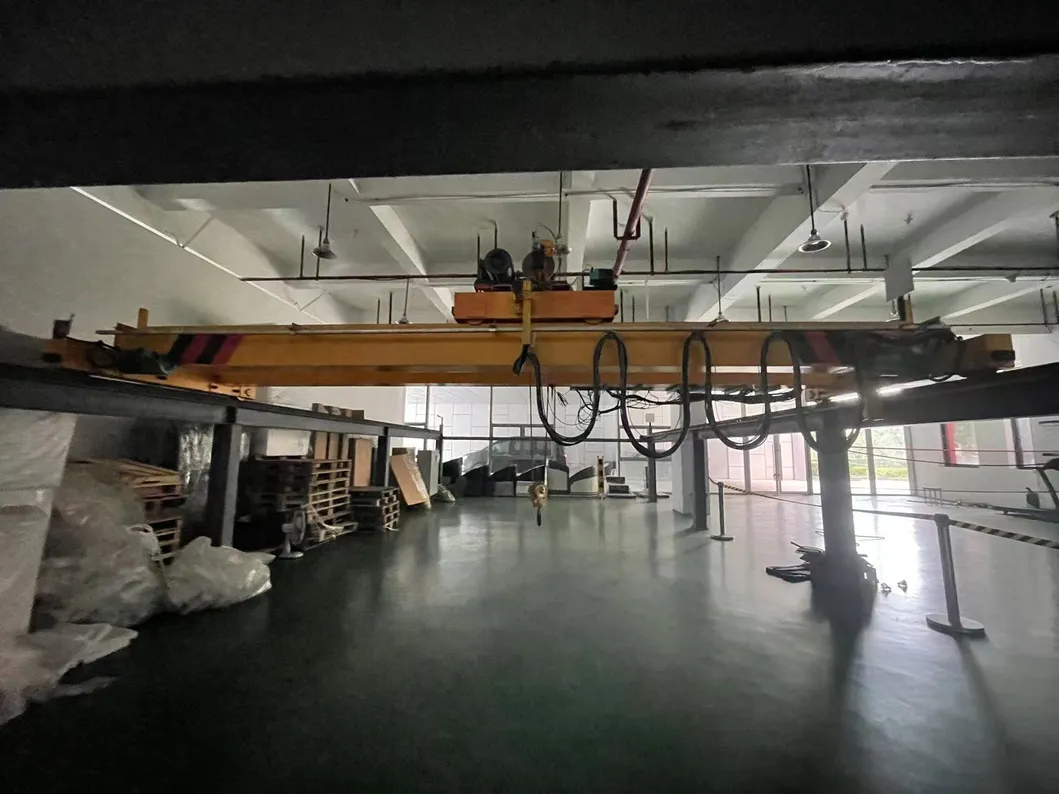

Factory Overview
