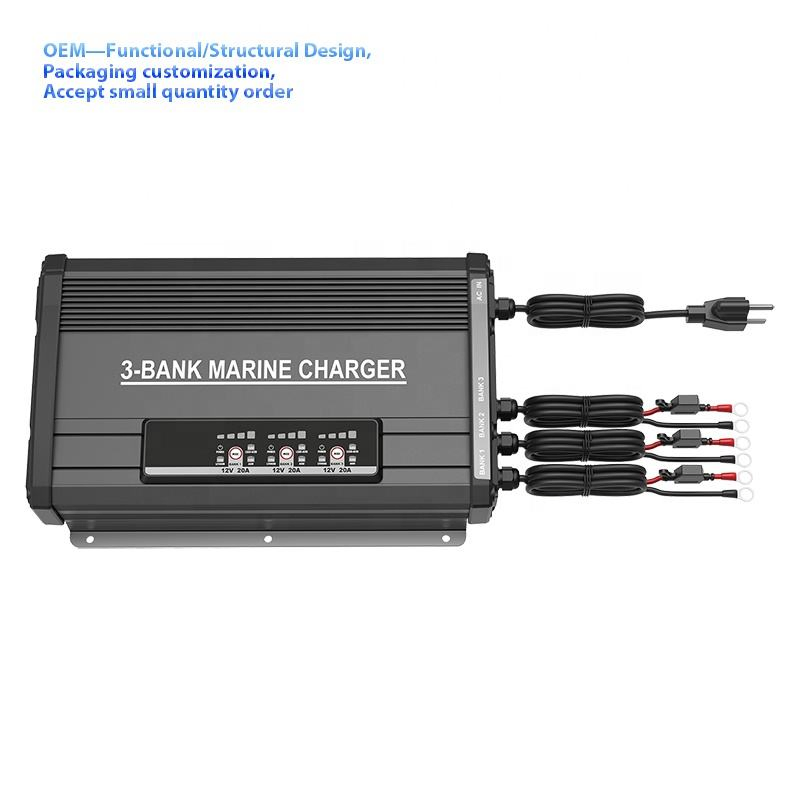

3-Bank 60A Smart Marine Battery Charger Waterproof 12V Onboard Boat Charger Flooded AGM LiFePO4 Lithium Batteries Charging

📋 Basic Information

Model NO.

TE4-0327

Application

Marine Battery Charger

Nominal Voltage

AC105-125V or 220-240V

Charger Style

Intelligent Charger

Compatible Batteries

Lead-Acid (Wet, MF, AGM, Gel), LiFePO4

Certification

RoHS, CE, cETL

Socket Type

EU/AU/US/UK

Output

12V / 20A per bank

Output Power

720W

Protection

Short Circuit, OTP, Over-Charging

Material

ABS, PVC, Aluminum

HS Code

8504401990

📷 Product Gallery

⚙ Technical Specifications

Parameter	Details
Battery Type	12V Flooded Lead Acid / AGM / LiFePO4
Rated AC Input Voltage	AC105-125V, 60Hz or 220-240V, 50Hz
Max Output Voltage	14.3-14.6V
Charging Current	20A per bank, 60A total
Safety Protections	Overheat, Short Circuit, Reverse Polarity, Overcharge
Housing Material	Heavy Duty ABS
Ingress Protection	IP67 Water Resistant
Certificates	cETL / CE-EMC / CE-LVD / ROHS

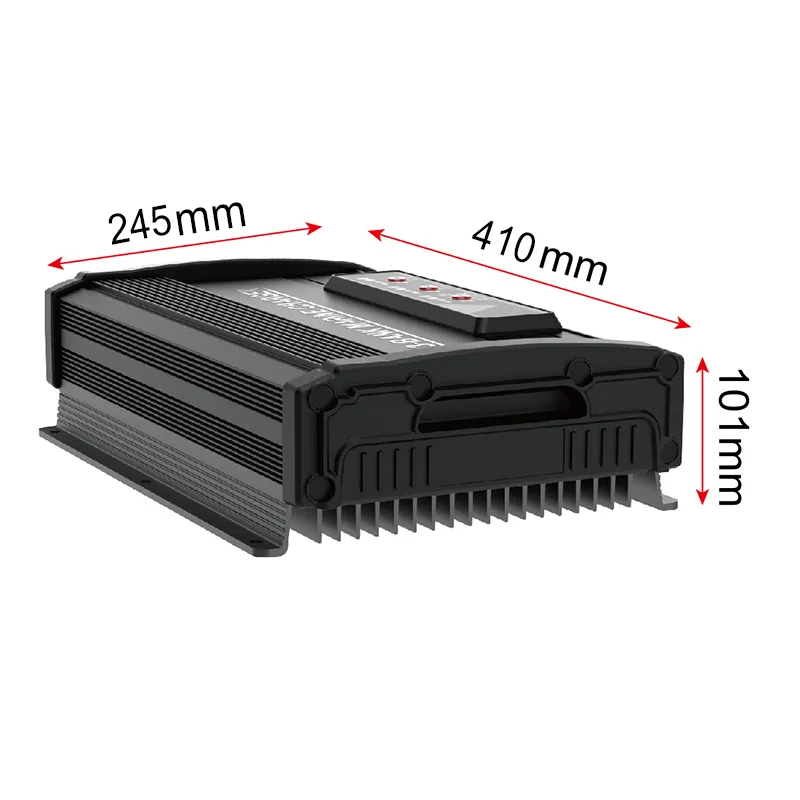

Dimensions	41 x 24.5 x 9.5 CM
Weight	11 KGS
Plug Standard	UL, VDE, or Customized

💎 Product Highlights & Dimensions

3-BANK, 60A (20A/BANK) Smart Marine Battery Charger

This waterproof onboard boat charger is designed for Flooded, AGM, and LiFePO4 batteries. Key features include:

Mode Selection: Easily select battery type (Lithium/LiFePO4, AGM, or Flooded) with a dedicated button.
Fast Charging: High current output (10A/15A/20A per spec) for rapid power restoration.
Lithium Wake-up: Specialized function to revive low-voltage Lithium batteries.

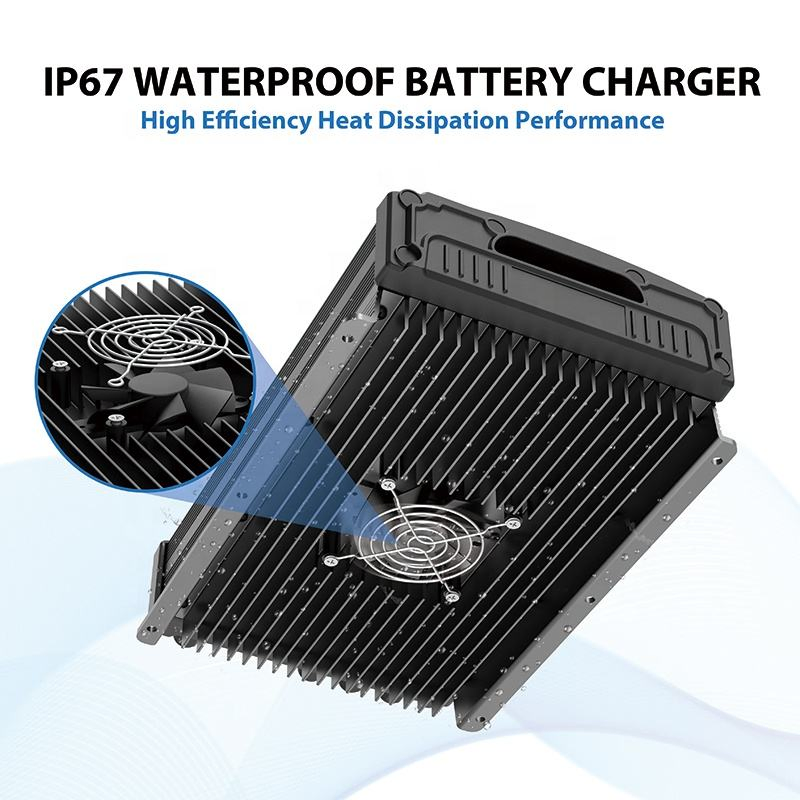

Advanced Cooling: Built with an aluminum stretched plate and waterproof cooling fan for superior heat dissipation.

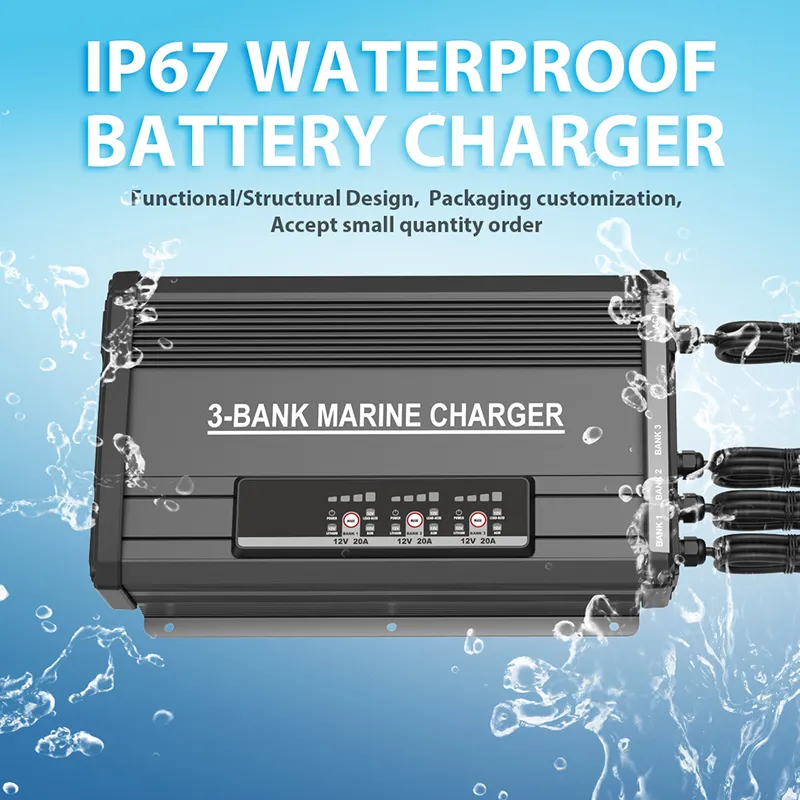

Rugged Build: Filled with pure epoxy resin to achieve a high IP67 waterproof rating.

🏭 Manufacturing Profile

Professional OEM/ODM Capabilities:

Specializing in functional and structural design, packaging customization, and small quantity orders. Our facilities maintain over 200+ patents and offer a catalog of 600+ high-quality products.

❓ Frequently Asked Questions

What battery types are compatible with this charger?

The charger is compatible with 12V Flooded Lead-Acid, AGM, and Lithium (LiFePO4) batteries. You can select the specific mode via the button on the unit.

Is the charger fully waterproof for marine use?

Yes, it features an IP67 rating. The internal components are filled with pure epoxy resin, and it includes a waterproof cooling fan to ensure reliability in wet environments.

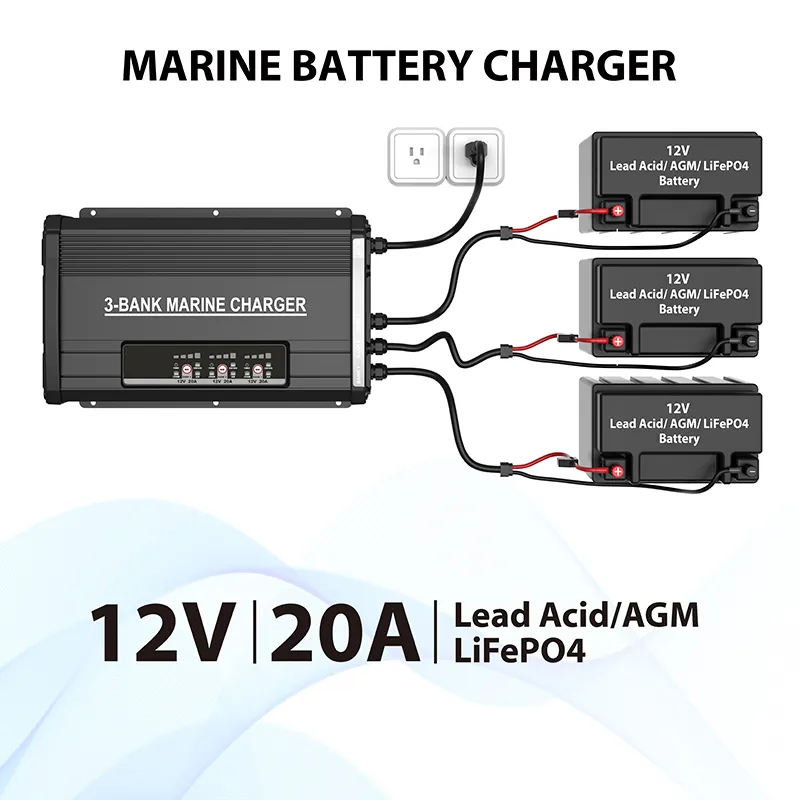

How many batteries can I charge at once?

This is a 3-Bank charger, meaning it can charge up to three independent 12V batteries simultaneously with 20A of current dedicated to each bank.

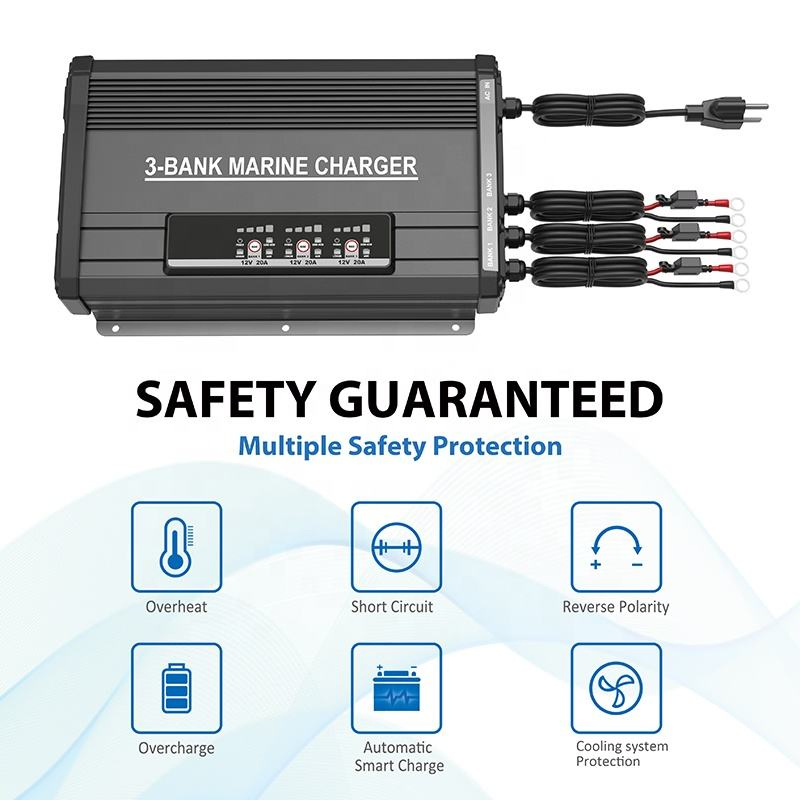

Does it have protection against incorrect wiring?

Yes, the charger is equipped with multiple safety features including Reverse Polarity protection, Short Circuit protection, Overheat protection, and Overcharge protection.

Can this charger recover a "dead" Lithium battery?

The charger includes a specific wake-up function designed to restart Lithium (LiFePO4) batteries that have entered a low-voltage protection state.

What is the input voltage range?

The charger supports standard AC inputs of either AC105-125V (60Hz) or AC220-240V (50Hz), depending on your regional requirement.
