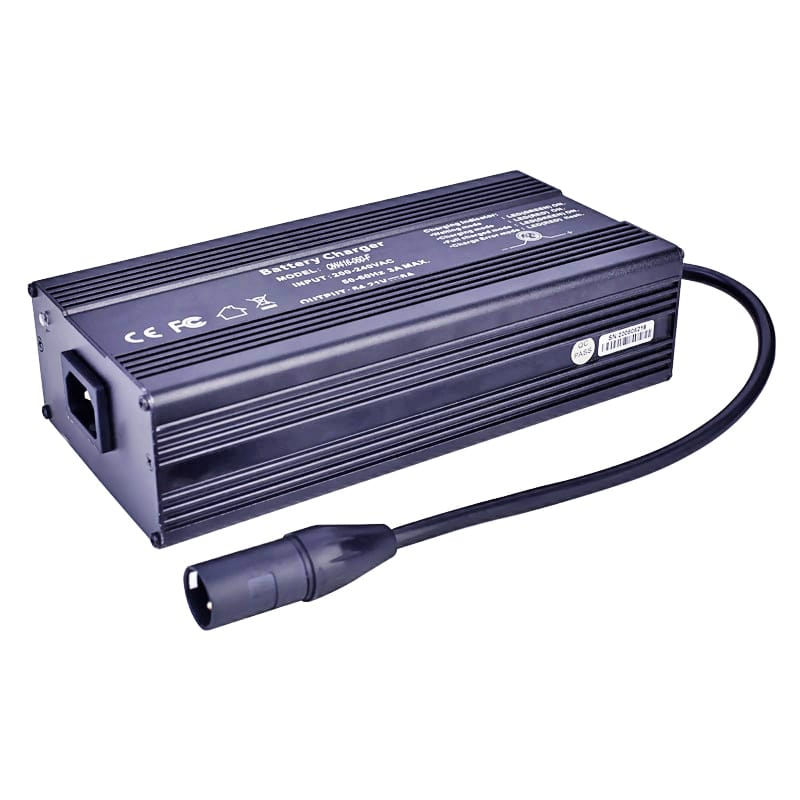

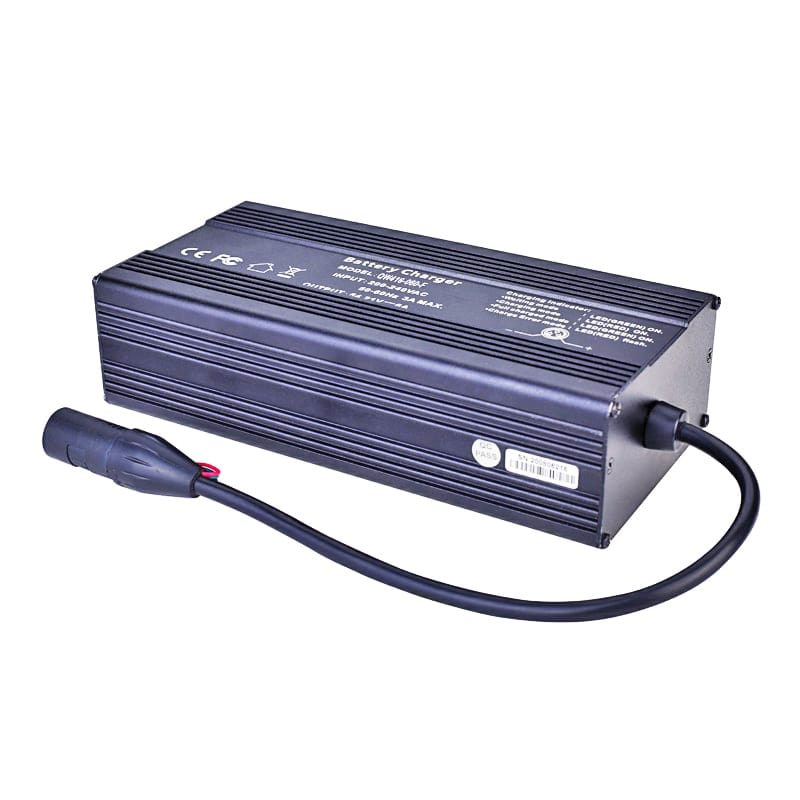

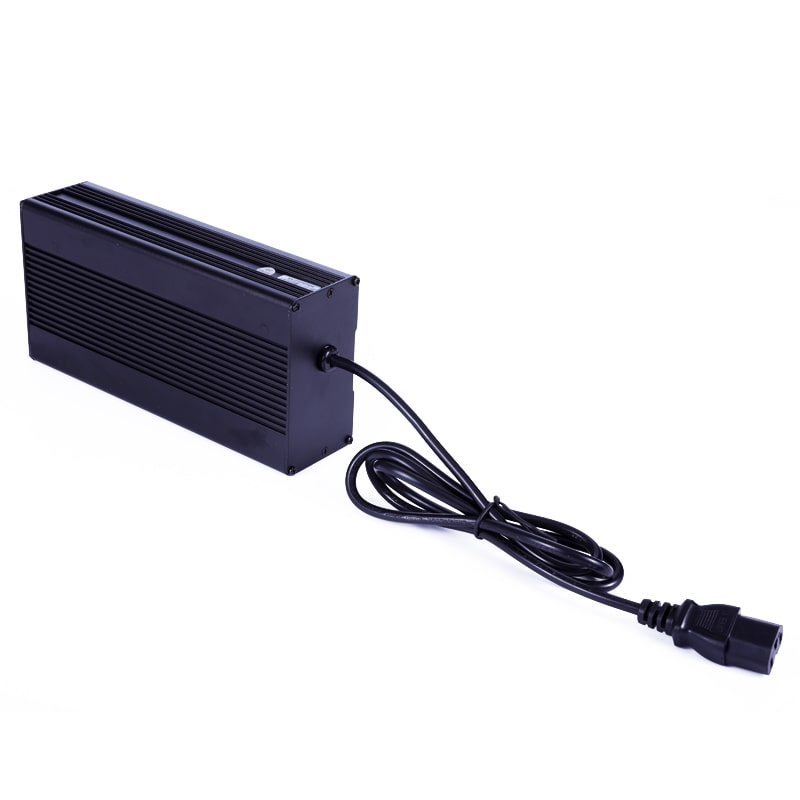

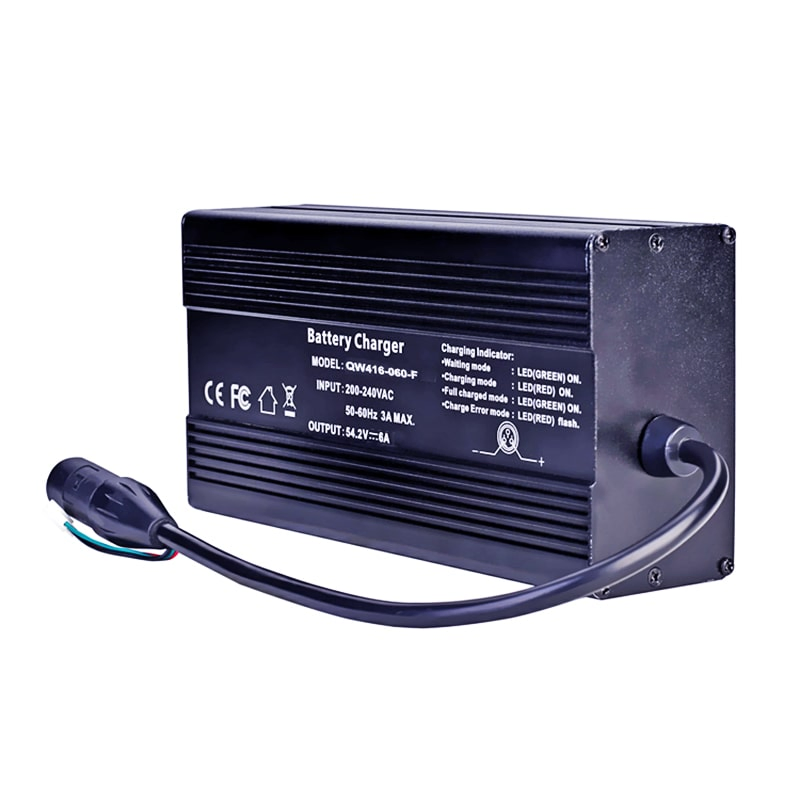

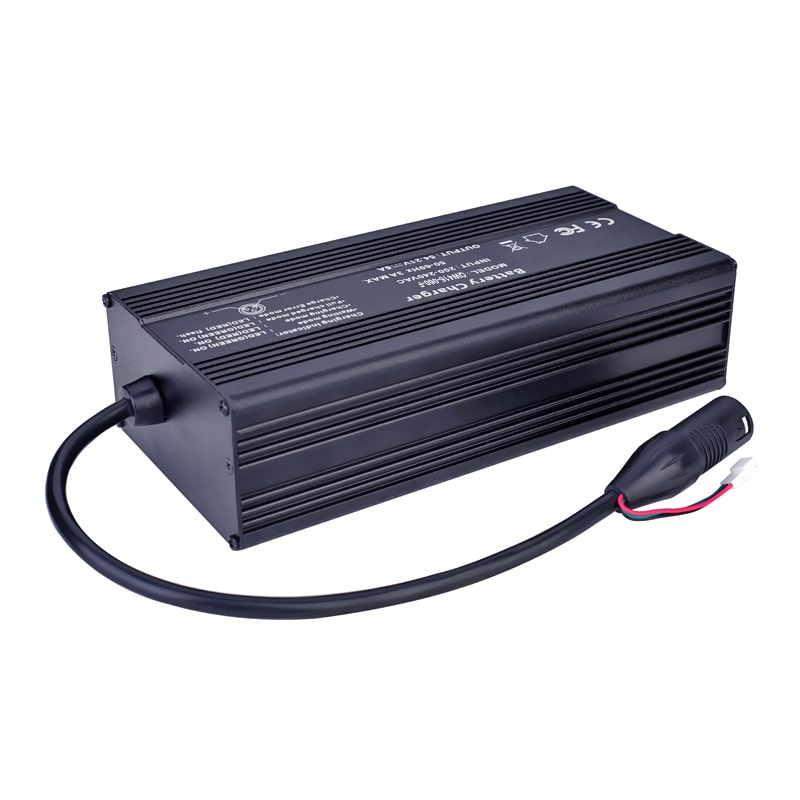

360W Battery Chargers 16s 48V 51.2V 5A 6A LiFePO4 LiFePO 4 Outdoor Charger DC 57.6V/58.4V 5A 6A IP54 IP56 Waterproof Chargers SAA Rcm Ukca UL

1 / 5

360W Battery Chargers 16s 48V 51.2V 5A 6A LiFePO4 LiFePO 4 Outdoor Charger DC 57.6V/58.4V 5A 6A IP54 IP56 Waterproof Chargers SAA Rcm Ukca UL

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Specifications

Model NO.

QW512-060-FA

Application

Standard Battery

Nominal Voltage

58.4V

Charger Style

Intelligent Charger

Battery Type

48V / 51.2V LiFePO4

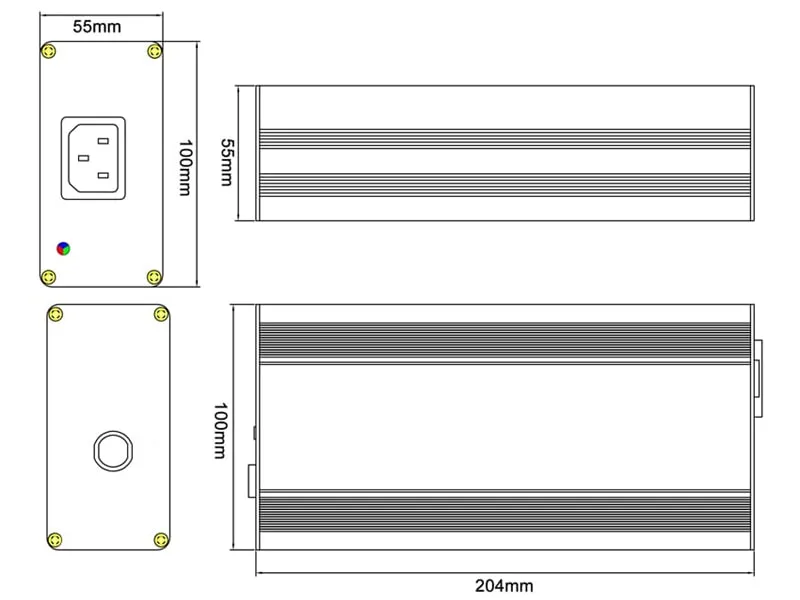

Size

204*100*55mm

Input Voltage

100-240VAC 50/60Hz

Output Current

6A (Max)

Shell Material

Aluminium alloy

Protection Grade

IP54 / IP56

🌟 Key Features

⚡

CC-CV Mode
Constant Current-Constant Voltage charging for battery longevity.

📈

High Efficiency
Efficiency at 100% load is ≥90% with low power consumption.

❄️

Advanced Cooling

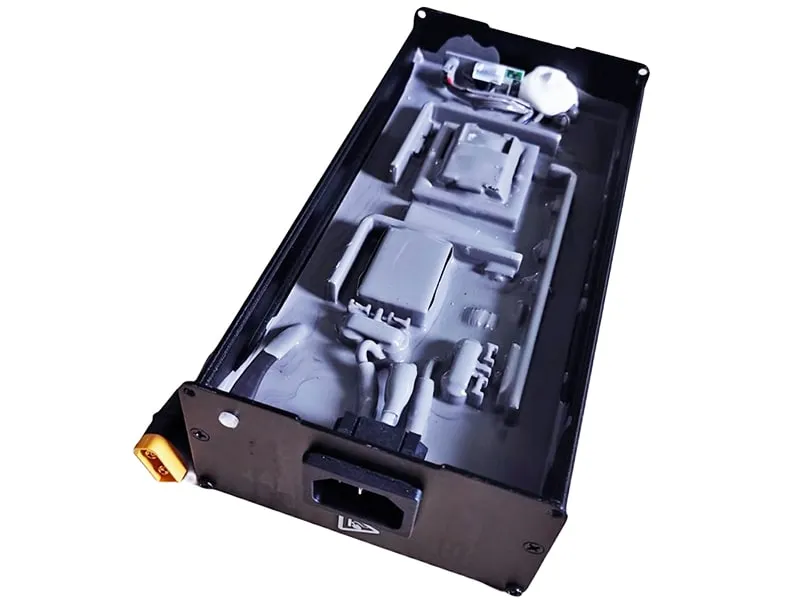

Metal shell cooling design combined with glue pouring process.

🌍

Global Input
100-240VAC 50/60Hz with PFC for worldwide compatibility.

🛡️ Safety Protections

✅ Over Voltage Protection

✅ Short Circuit Protection

✅ Polarity Error Protection

✅ Over Power Protection

✅ Overheating Protection

💡 LED Status Indicators

Waiting Mode: GREEN ON

Charging Mode: BLUE FLASH

Full Charged: GREEN ON

Charge Error: RED FLASH

📋 Typical Product Models

Model	Battery Type	Input Voltage	Battery Voltage	Charging Voltage	Current
QW128-200-FA	LiFePO4	AC 100~264V	12.8V (4S)	14.6V	20A
QW256-120-FA	LiFePO4	AC 100~264V	25.6V (8S)	29.2V	12A
QW512-060-FA	LiFePO4	AC 100~264V	51.2V (16S)	58.4V	6A
QW481-060-LA	Lithium	AC 100~264V	48.1V (13S)	54.6V	6A

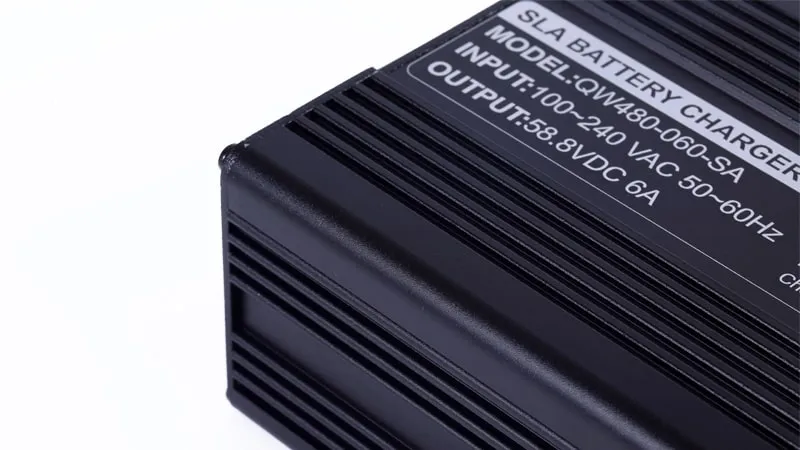

QW480-060-SA	Lead Acid	AC 100~264V	48V (4S)	58.8V	6A

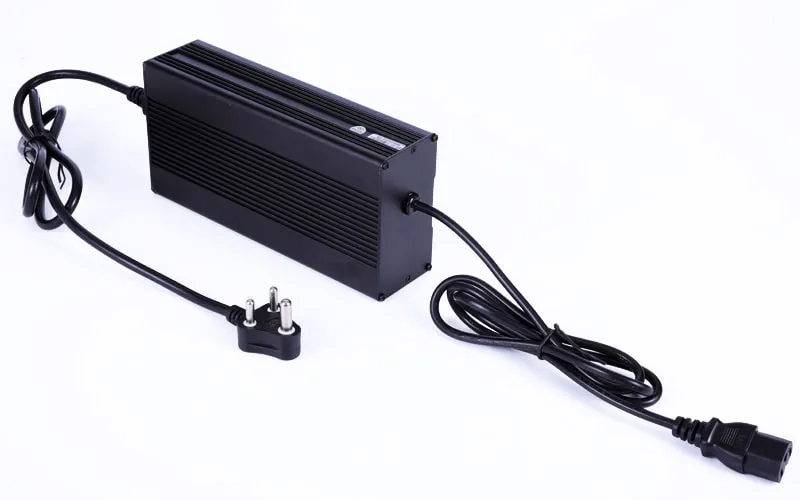

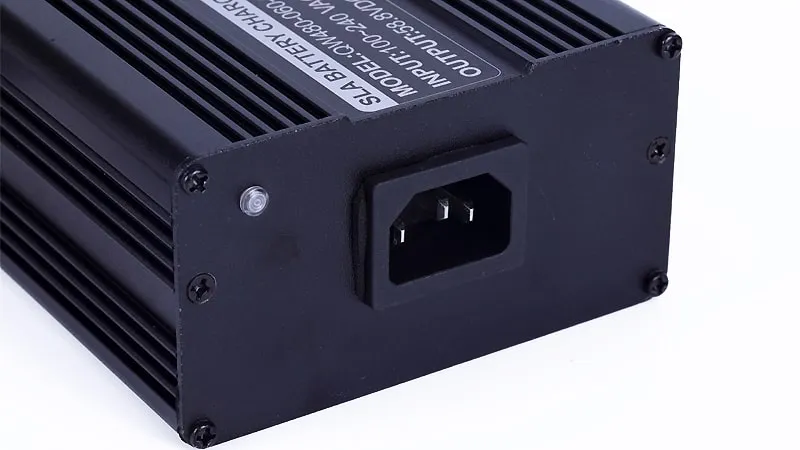

📸 Product Gallery

❓ Frequently Asked Questions

What types of batteries can this charger support?

This intelligent charger is compatible with 16S 48V/51.2V LiFePO4 battery packs, as well as specific Lithium and Lead Acid configurations depending on the model selected.

Is the charger waterproof for outdoor use?

Yes, it features an IP54/IP56 protection grade, making it suitable for outdoor environments. It uses a glue pouring process and a durable aluminium alloy shell for enhanced protection.

Does it support international power standards?

Absolutely. The input voltage range is 100-240VAC at 50/60Hz with PFC (Power Factor Correction), allowing it to be used globally with various socket types (AU/EU/UK/US).

What safety certifications does this product hold?

The charger is highly certified, including CB, KC, PSE, RoHS, CE, C-Tick, FCC, GS, ICES, SAA, RCM, UKCA, and UL, ensuring it meets strict international safety standards.

How can I tell the charging status?

The built-in LED indicator provides clear status updates: Green for Waiting or Full Charged, Blue flashing for Charging, and Red flashing if a Charge Error occurs.

What are the available output connectors?

We offer various output connectors including Waterproof plugs, Crocodile Clips, Aviation Connectors, XLR, Ring terminals, SAE Plugs, and Anderson Connectors. Customization is also available.
