| Model NO. | FY4209000 | Application | Electronic Product |
|---|---|---|---|
| Nominal Voltage | 36V | Charger Style | Simple Charger |
| Battery Type | AAA/AA | Certification | KC, PSE, RoHS, TUV, CB, CE |
| Product Name | 42V 9A Lithium Battery Charger | Warranty | 3 Years |
| Protections | Short Circuit, Ovp, Otp, Olp | AC Input | 100-240V, 50/60Hz |
| Material | PC Fireproof Material | Origin | China |

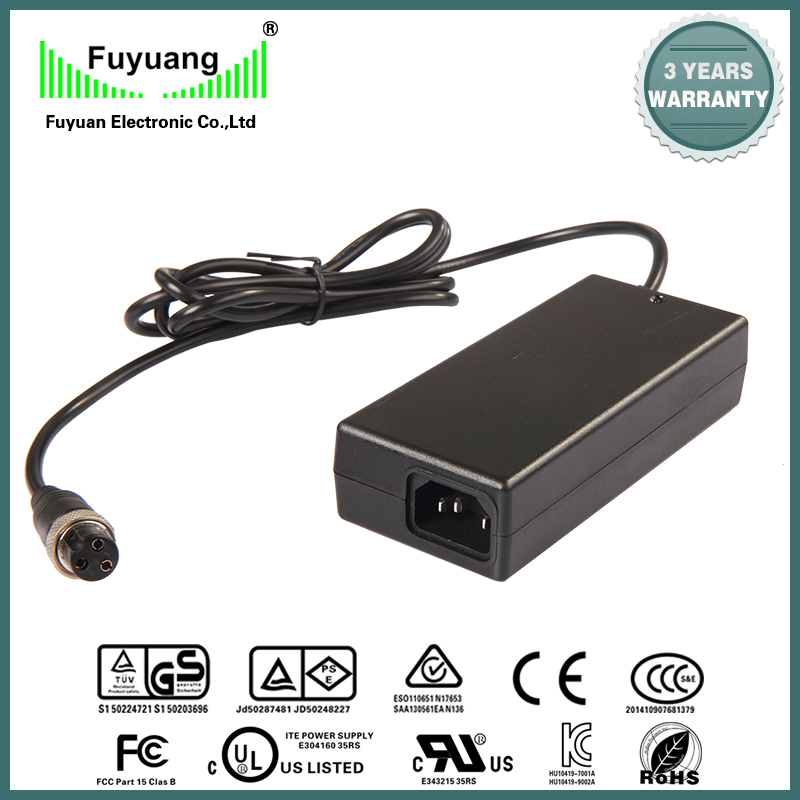

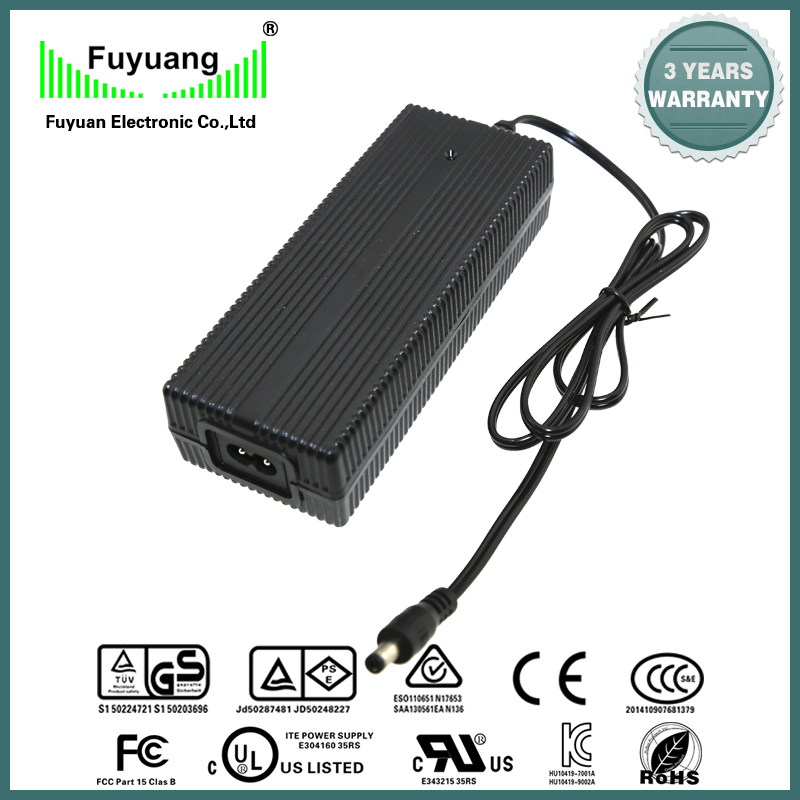

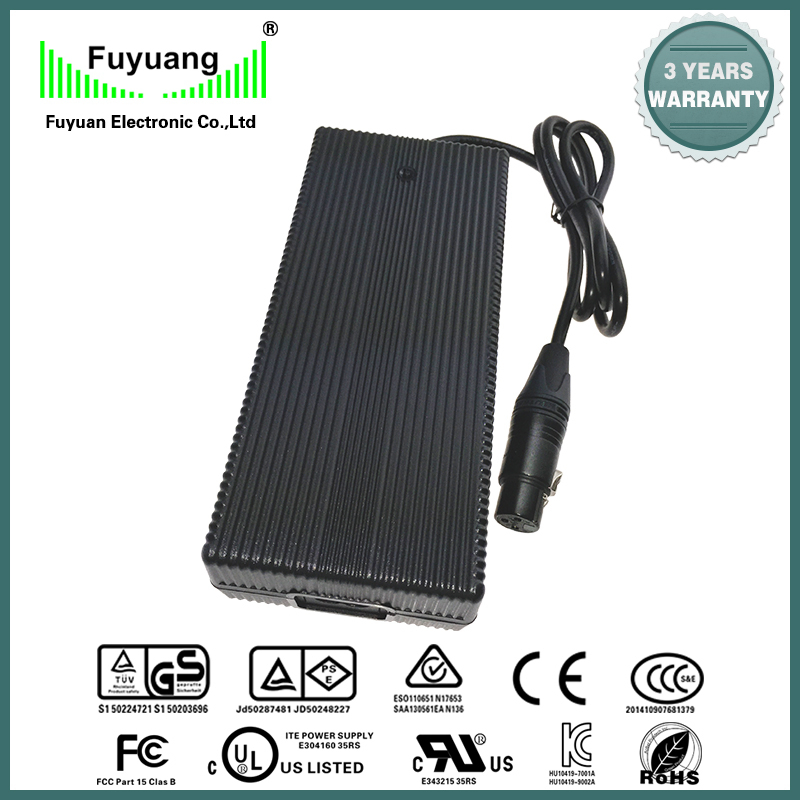

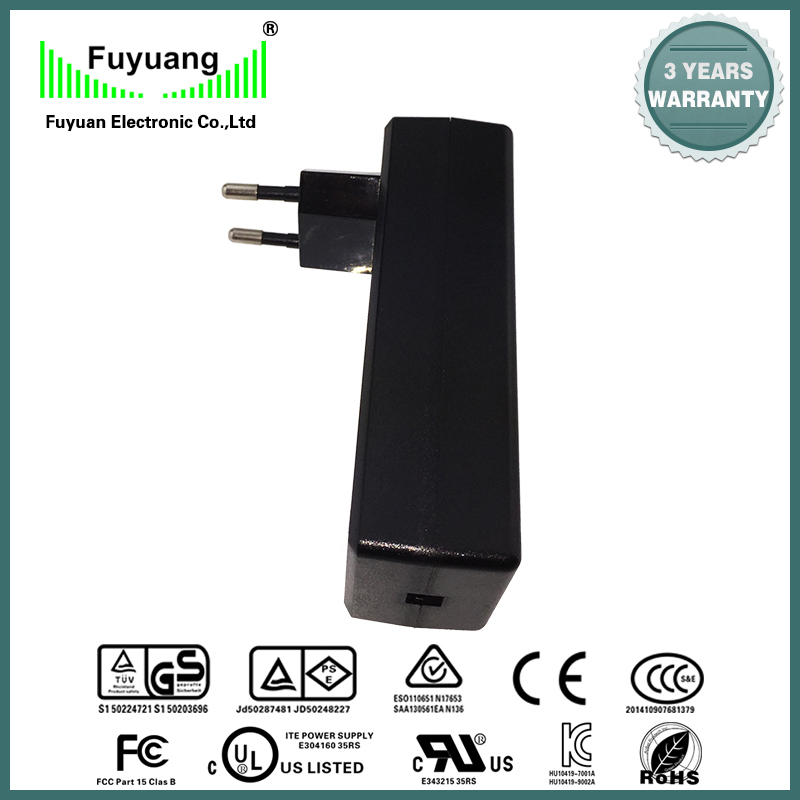

Portable High Power AC DC 42V 9A Lithium Battery Charger
Based on 25 years' engineering experience, we specialized in 60-500W high-power power supply products. Our power adapter, battery charger and LED power supply are widely used in battery packs (Lithium, LifePO4, Lead acid, Ni-MH), E-bikes, Golf Carts, Electric Vehicles, and more.
| Item | Parameter |
|---|---|
| Usage | Universal |
| Material | PC Fireproof Material |

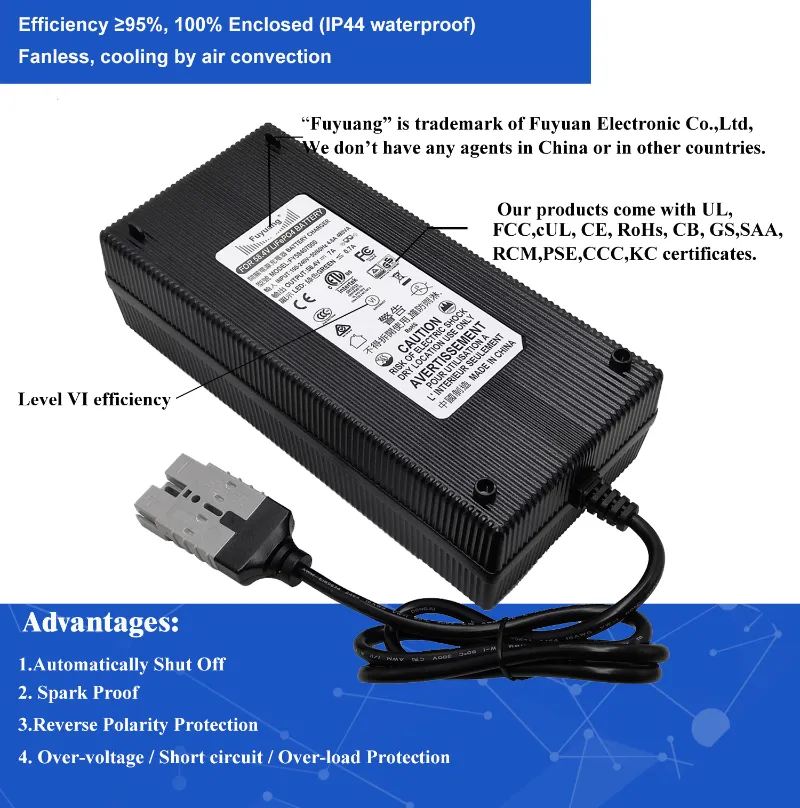

| Protection | Short Circuit, Overvoltage, Over temperature, Overload |

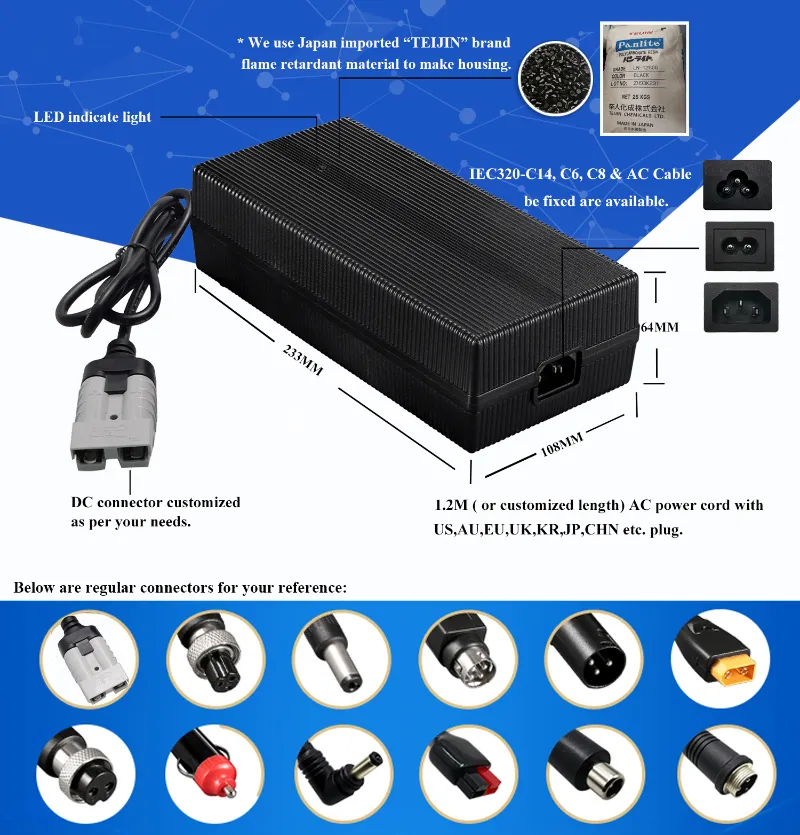

| Dimension | 233*108*64mm |
| Weight | 1.6kgs/PCS |
| Input Voltage | 100-240VAC, 50/60Hz |
| Output Voltage | 42V |
| Output Current | 9A |
| Operating Temp | -29ºC ~ +45.5ºC |
| MTBF | 30,000 hours full rated load at 25ºC |
Li-ion Battery Charger Range:
| Battery Qty (cell) | 1 | 4 | 7 | 10 | 13 | 14 |
|---|---|---|---|---|---|---|
| Max Voltage (V) | 4.2 | 16.8 | 29.4 | 42 | 54.6 | 58.8 |
| Max Current (A) | ≤10A | ≤10A | ≤7.5A | ≤5.5A | ≤4A | ≤3.6A |
LiFePO4 Battery Charger Range:
| Battery Qty (cell) | 1 | 4 | 8 | 12 | 16 |
|---|---|---|---|---|---|
| Max Voltage (V) | 3.65 | 14.6 | 29.2 | 43.8 | 58.4 |
| Max Current (A) | ≤10A | ≤10A | ≤8.5A | ≤5A | ≤3.5A |
