| General Parameters | |

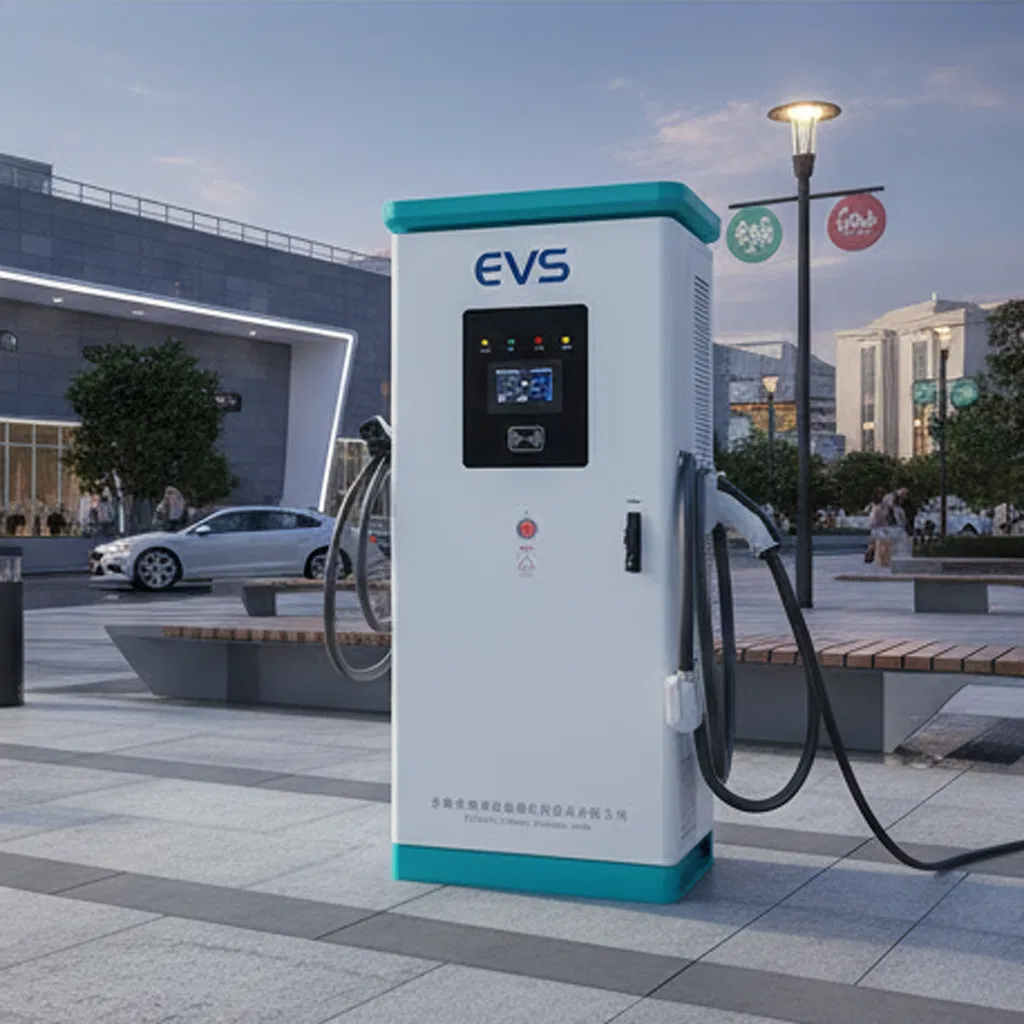

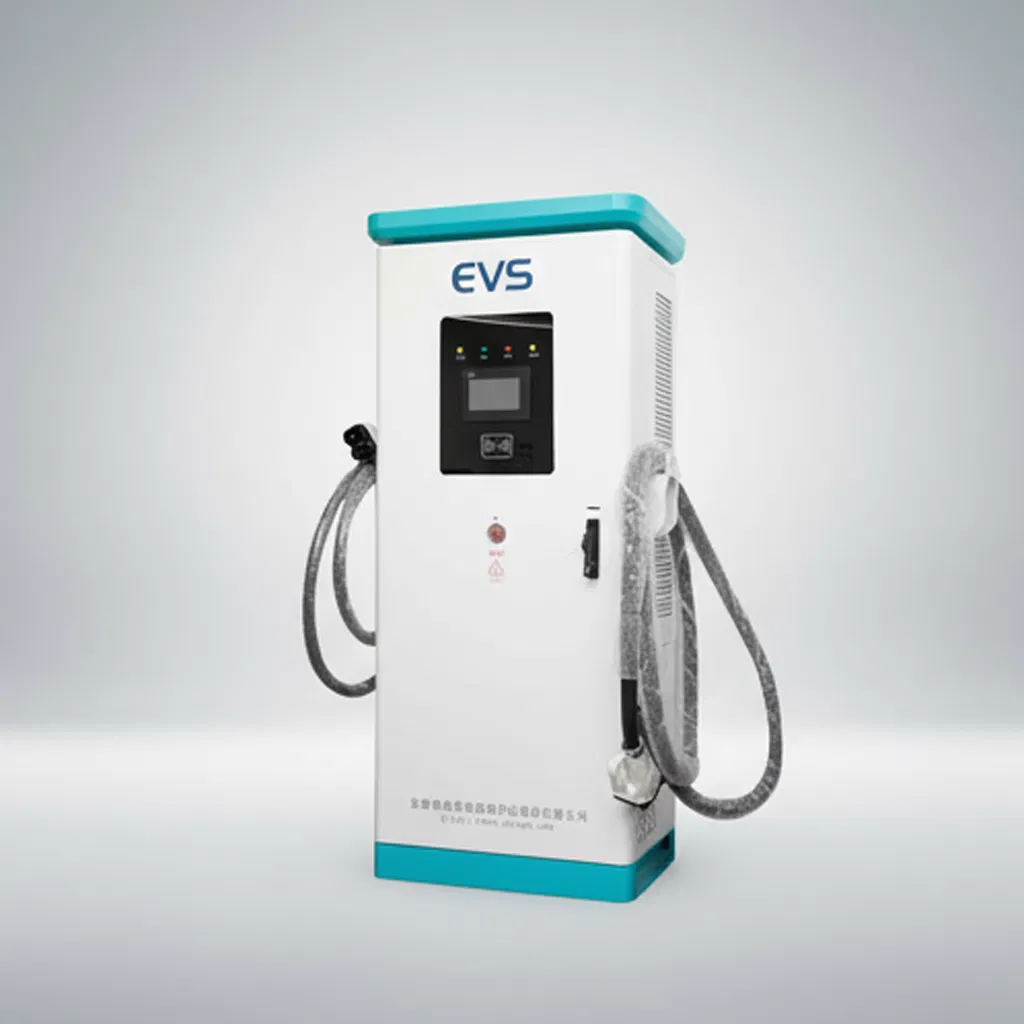

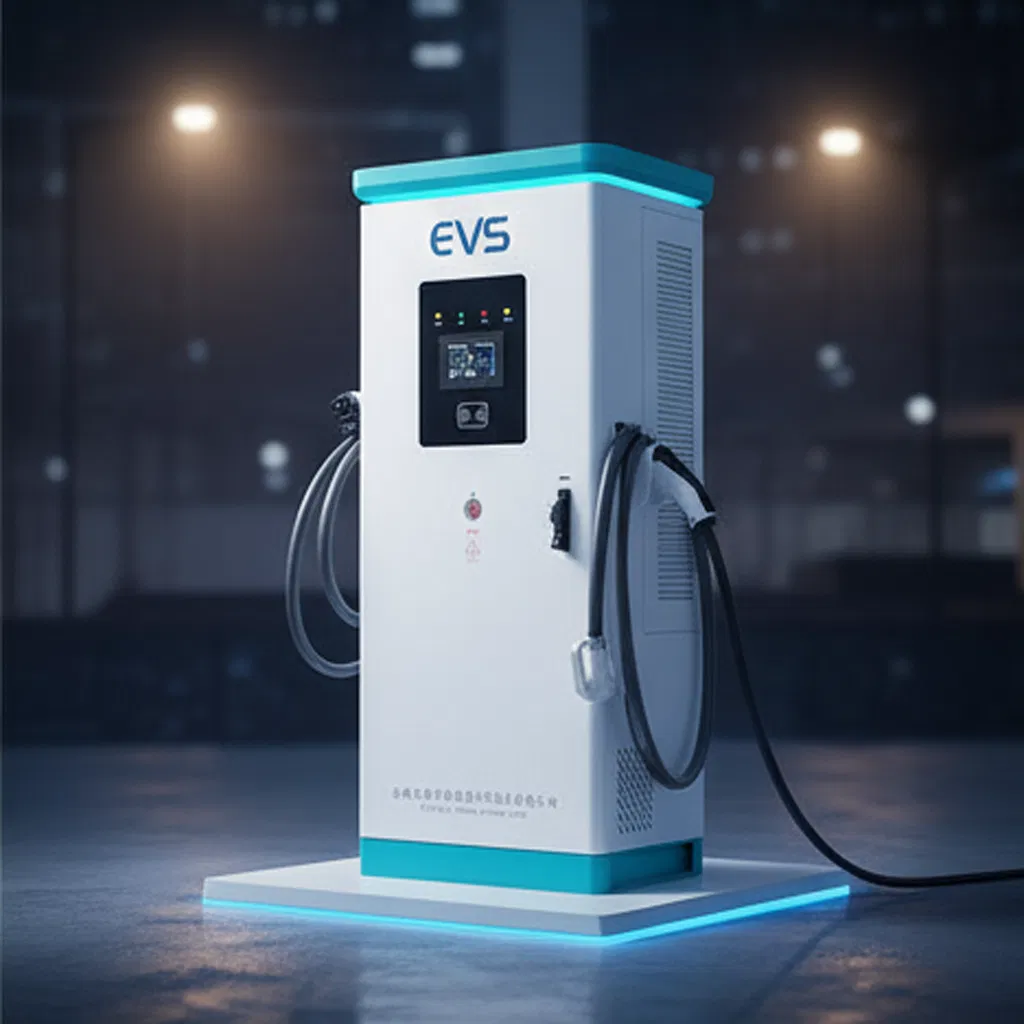

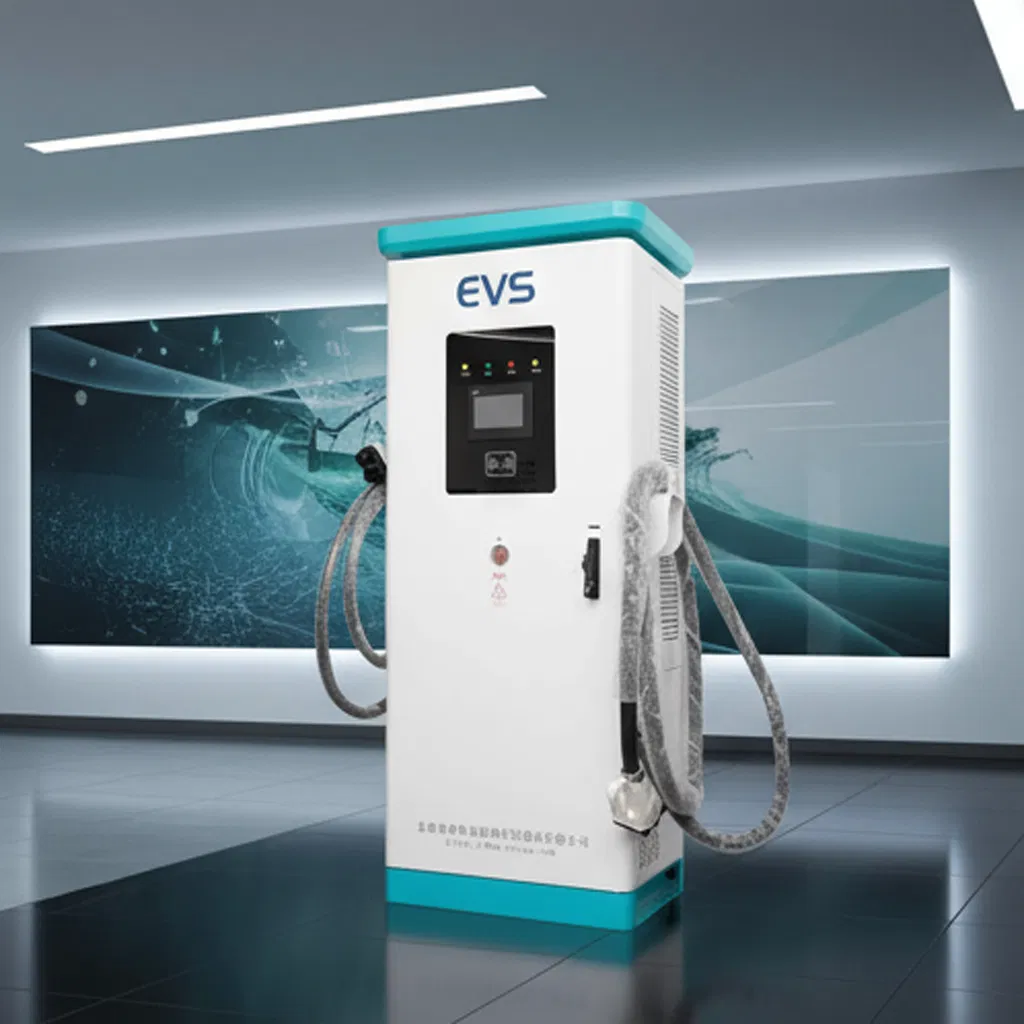

| Product Name | 60KW Integrated DC Charger |
| Installation Method | Floor-standing |
| Rated Power | 60KW |
| Size (H * W * D) | 770*560*1870 mm |
| Input Specification | |
| AC Input Voltage | 380±15%, 3 phases +N+PE |
| Input Frequency | 45~66Hz |
| Output Specification | |
| DC Voltage Range | DC 200V~1000V |
| DC Output Current | 0~250A (single gun) |
| Plug Wire Length | 5m (customizable) |
| Plug Standard | CHAdeMO / CCS1 / CCS2 / GB/T |
| Environmental & Protection | |
| Protection Level | Outdoor IP54 |
| Operating Temp | -20ºC ~ 50ºC |
| Altitude | ≤2000 m |
| Protective Function | Lightning, over-load, short-circuit, over-temperature, leakage, emergency stop |
The system can satisfy charging requirements for all vehicle types and dynamically match the electric vehicle connecting with any terminal for its required charging power. It avoids repeated investment caused by equipment upgrading.
Adopts high power density modules with high power factor and efficiency. Low harmonic distortion makes it especially suitable for buses and other heavy-duty electric vehicles requiring large-power charging.
Optimized energy consumption and improved module efficiency make power distribution more reasonable and power switching more stable with finer granularity.
As battery technology evolves, the charging power needs will increase. Our modular design allows for easy expansion to meet future charging requirements.
Our facility possesses a complete CNC machining industry chain, including laser cutting machines, CNC punching, CNC bending, robotic welding, and automatic powder spraying lines. This integrated production efficiency ensures the fastest delivery periods for our global clients.
