14.6V10A 20A 30A 40A LiFePO4 Battery Charger 12V100ah Lead Acid Battery Charger

1 / 5

14.6V10A 20A 30A 40A LiFePO4 Battery Charger 12V100ah Lead Acid Battery Charger

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

FY1469900

Application

Standard Battery, RV, Electric Car, Motorcycle

Nominal Voltage

12V

Compatible Battery

12-Volt LiFePO4

Output Voltage

14.6V 10A

Efficiency

>92%

Socket Type

US, EU, UK, AU

Certification

UL, CE, GS, CB, FCC, PSE, SAA, ROHS, KC

Size

154*60*36mm

Weight

0.5kgs

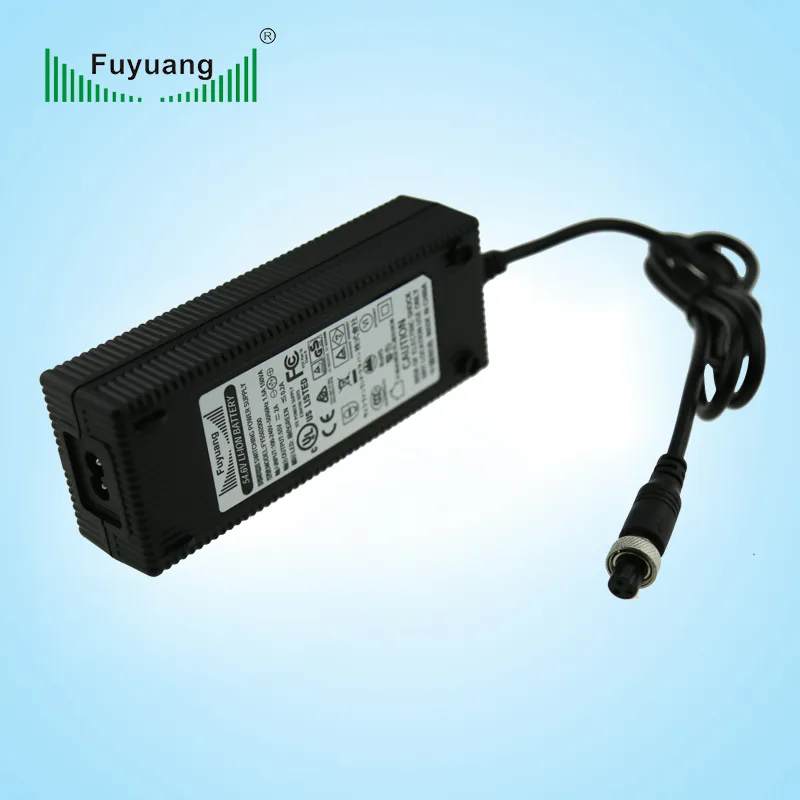

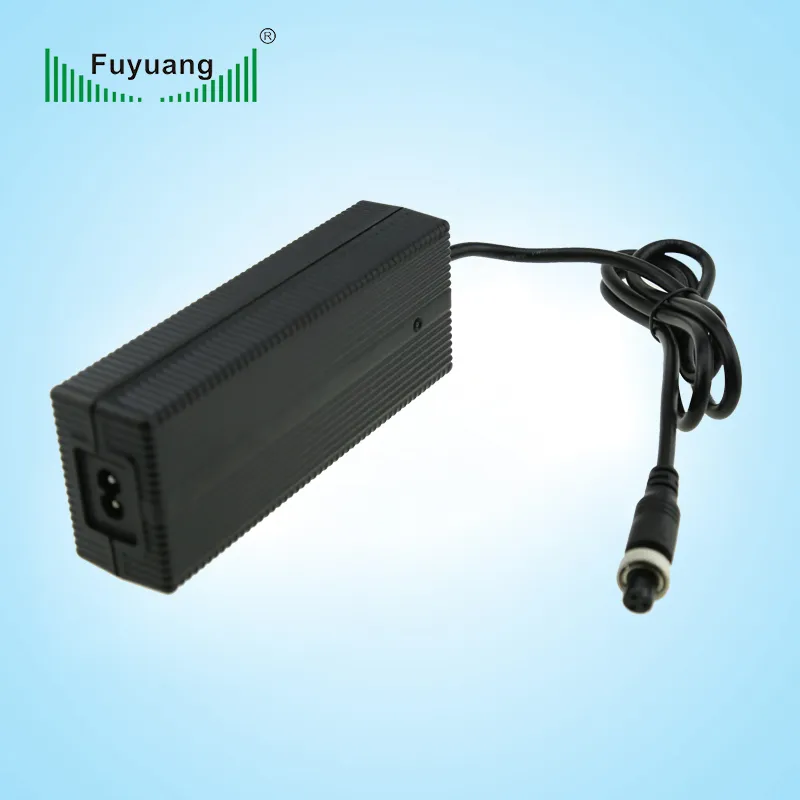

UL Listed 14.6V 10A LiFePO4 Battery Charger

Product Advantages

Global certificates for worldwide safety compliance.
100% burn-in tested and inspected with automatic test equipment (ATE).
Full safety protection: Short circuit, Overload, Overvoltage, and Overcurrent.
High efficiency Energy Level VI (DOE or COC).
Key components made in-house for superior quality control.
Supports both OEM and ODM requirements.

Parameter	Details
AC Input	100-240V, 50/60HZ
Max Charging Voltage	14.6V
Max Charging Current	10A
Inrush Current	Limited 15A (Cold Start)
Power Factor	0.89
Operating Temp	-29ºC ~ +45.5ºC
MTBF	30,000 hours at 25ºC

Product Gallery

Battery Charger Connectors

We provide a wide range of connectors compatible with various electric scooters and battery packs:

3-Port Inline: Most common for Chinese-made electric scooters.
3-Pin XLR: Commonly used on 12V, 24V, and 36V systems.
4-Pin XLR: Used on newer 24V and 36V models.
Coaxial & RCA: Popular for child-sized scooters and lithium battery packs.

Recommended Charging Rates

Battery Pack	Slow Rate	Quick Rate
12V 9-12 Ah	12V 1.5A	12V 3A
12V 17-20 Ah	12V 3A	12V 6A
24V 9-12 Ah	24V 1.5A	24V 3A
36V 17-20 Ah	36V 3A	36V 6A
48V 17-20 Ah	48V 3A	48V 6A

Frequently Asked Questions

Q1: Can this charger be used globally? Yes, it supports AC input from 100V to 240V, 50/60Hz, making it compatible with power systems worldwide. We also offer multiple socket types including US, EU, UK, and AU.

Q2: What type of batteries is this charger compatible with? This specific model is designed for 12V LiFePO4 battery packs. It provides a maximum charging voltage of 14.6V.

Q3: How long is the warranty period? We provide a three-year guarantee on our battery chargers, ensuring long-term reliability and performance.

Q4: What safety protections are included? The charger features comprehensive protection mechanisms, including short circuit protection, over-current protection, and over-voltage protection.

Q5: Is the product certified for international markets? Yes, it holds numerous global certificates such as UL, CE, GS, CB, FCC, PSE, SAA, KC, and ROHS, meeting strict safety and quality standards.

Q6: What is the energy efficiency of this charger? This charger reaches an efficiency rate of over 92% and meets Energy Efficiency Level VI standards (DOE or COC).
