Waterproof / Marine Battery Charger 84V 15A, Fully Sealed with Pi65/IP66

1 / 5

Waterproof / Marine Battery Charger 84V 15A, Fully Sealed with Pi65/IP66

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

VL8415LWP

Input Voltage

90~264VAC

Type

Lithium Ion Battery Charger

Charging Type

Electric Charger

Principle

MCU Controlled Smart Charger

IP Rate

IP65

Net Weight

8.5 Kg

Application

Charge 84V SLA or Lithium Battery

Transport Package

Carton

Specification

310*230*101 mm

Product Overview

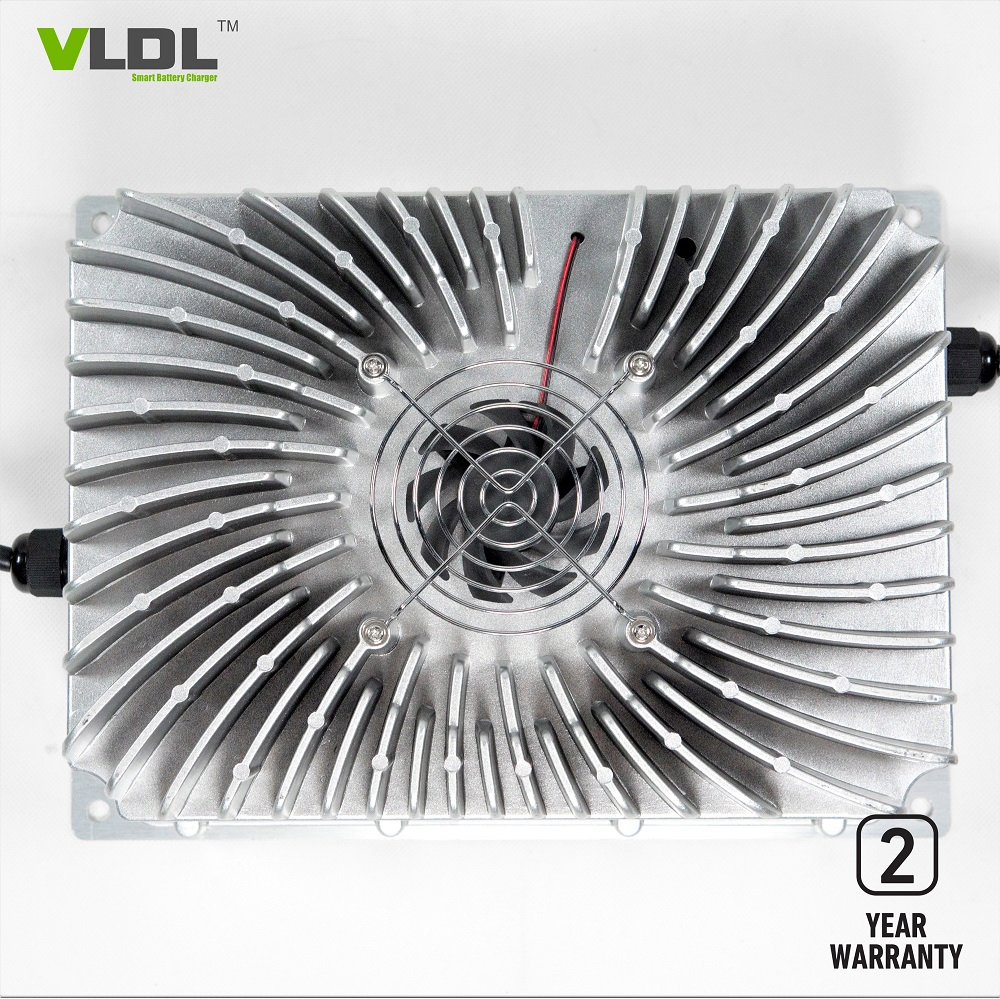

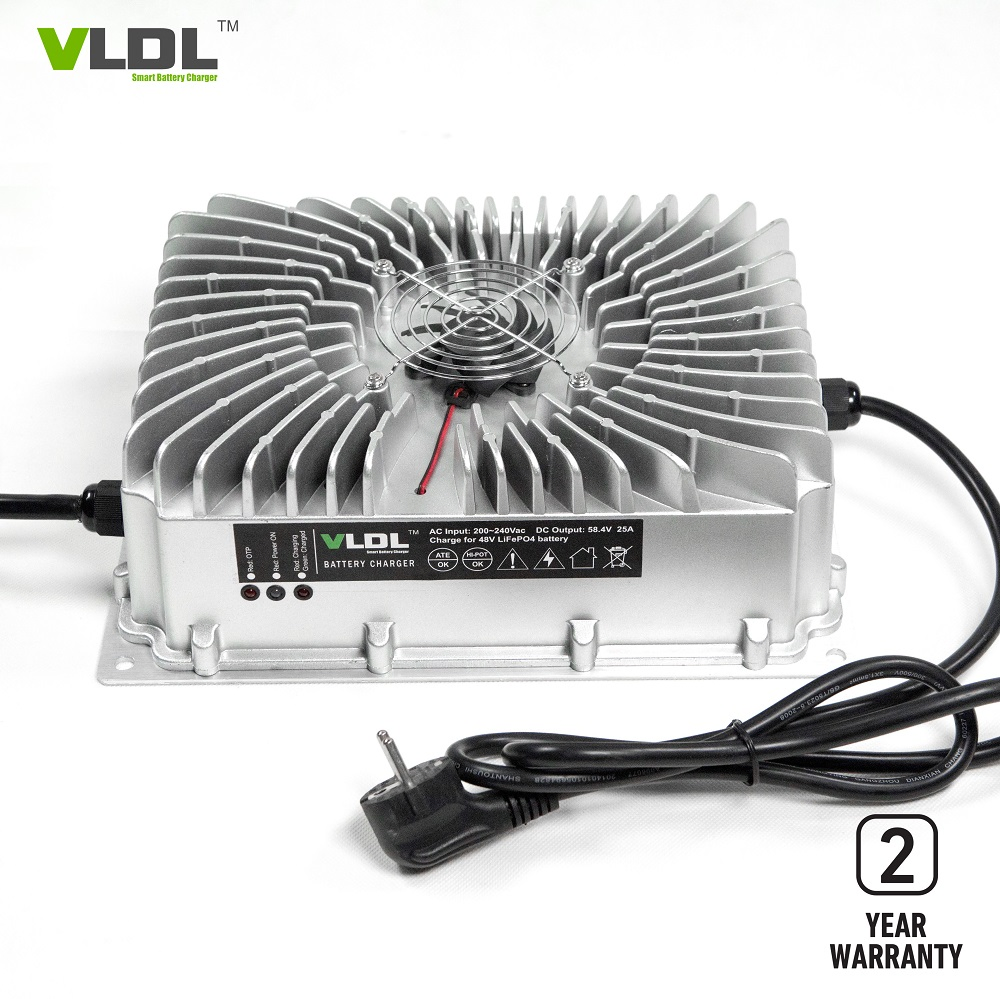

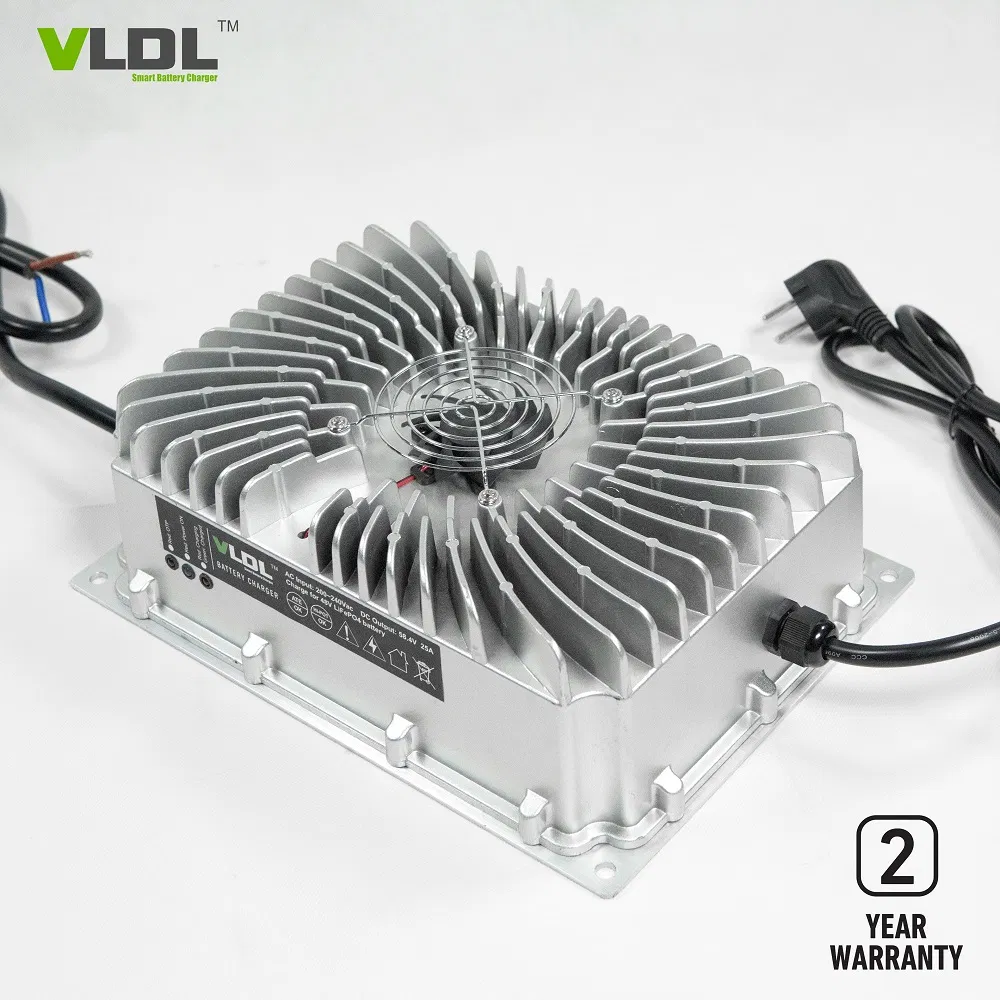

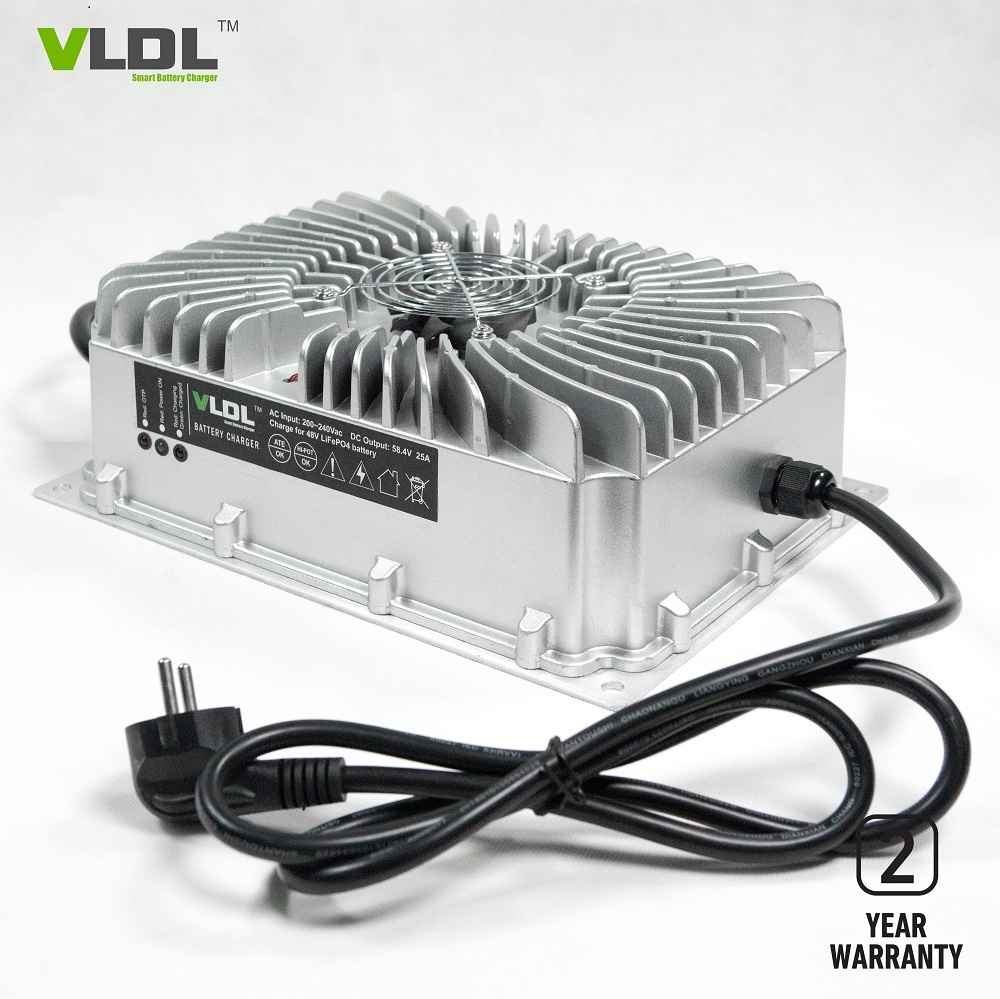

Waterproof / Marine Battery Charger 84V 15A, Fully Sealed with IP65/IP66

This waterproof, marine-grade on-board smart battery charger is specifically designed for lithium or lead-acid (AGM, sealed) battery applications in electric cars or boats. Featuring an IP65 rating and worldwide 110V to 230Vac input with PFC, it delivers a maximum charging voltage of 84V. The MCU-controlled, intelligent 4-step charging process (pre-charge, CC, CV, and floating/automatic cut-off) ensures maximum efficiency and battery life protection for outdoor environments.

Key Features

Advanced high frequency switching mode power supply technology.
DC output isolated from AC input for enhanced safety.
Auto worldwide Input 110 / 240Vac (90 ~ 264Vac) with PFC.
MCU Controlled: Intelligent 4-step automatic charging curve.

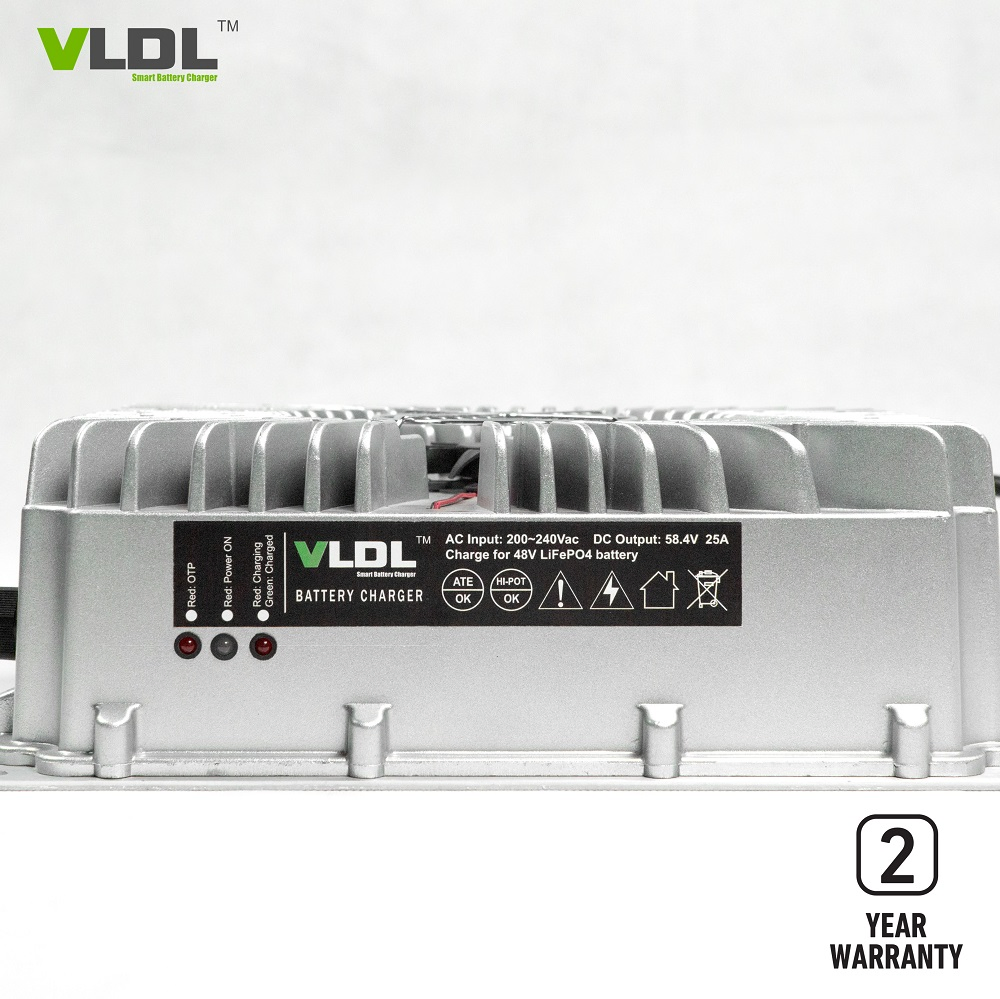

Dual LED Indicators: Power status and charging progress.
Comprehensive Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
High Efficiency: > 95% performance.
Robust Design: IP65/IP66 rated aluminum casing, 100% full load burn-in tested.

Technical Specifications

Dimensions

310 × 230 × 101 MM

Net Weight

6.0 KG

Max Voltage (CV)

102.2V

Max Current (CC)

15 Amps

Charging Method

Pre-charge, CC, CV, Floating/Shut-off

Enclosure

High-grade Aluminum

Model	Battery Type	Floating V	CV (V)	CC (A)	Efficiency
VL1280WPL	12V LiFePO4 Battery	-	14.6V	80A	CC5~8%
VL2445L	24V LiFePO4 Battery	-	29.2V	45A	CC5~8%
VL3630WP	36V Lead-acid Battery	41.4V	44.1V	30A	CC20%
VL4825WP	48V Lead-acid Battery	55.2V	58.8V	25A	CC20%
VL6020WPL	60V LiFePO4 Battery	-	73V	20A	CC5~8%
VL7215WP	72V Lead-acid Battery	81V	88.2V	15A	CC20%
VL8413WPL	84V LiFePO4 Battery	-	102.2V	13A	CC5~8%
VL9612WP	96V Lead-acid Battery	108V	117.6V	12A	CC20%

* Note: Customized input, output, plug types, and connectors are available upon request.

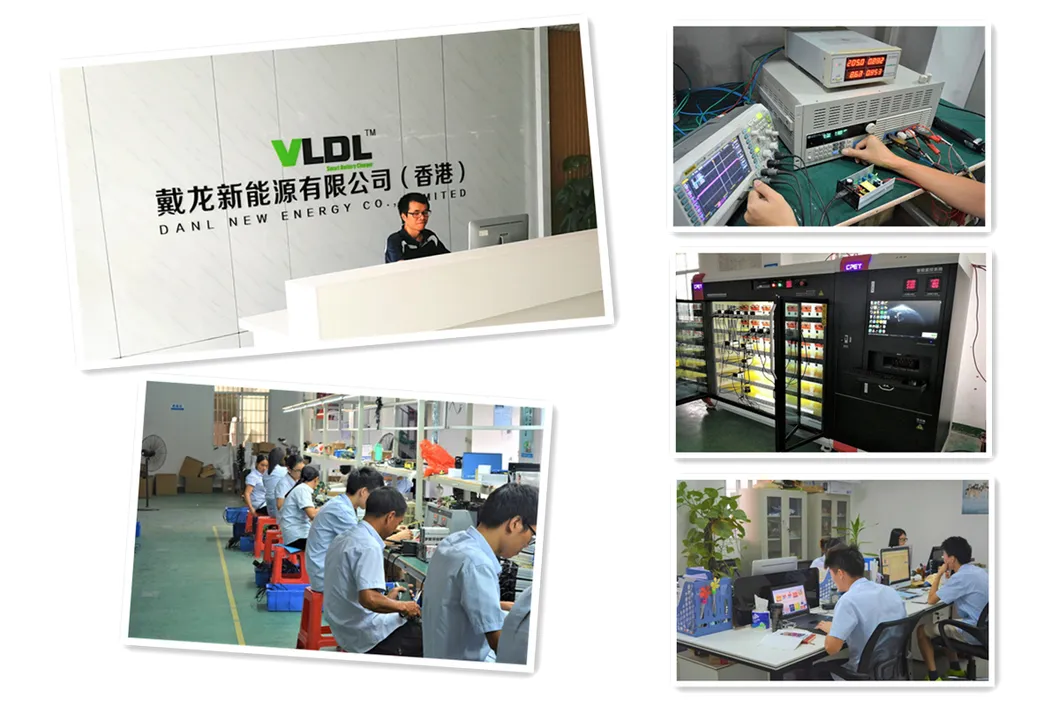

Professional Production

Frequently Asked Questions

Is this charger suitable for outdoor or marine use?

Yes, the charger is designed with an IP65/IP66 waterproof rating and a fully sealed aluminum casing, making it ideal for marine environments and outdoor applications.

What types of batteries can be charged?

It is compatible with Lithium-ion, LiFePO4, and Lead-Acid batteries (including SLA, Deep Cycle, and AGM). The charging curve can be customized based on your specific battery requirements.

Does the charger work with international voltages?

Yes, it features a universal AC input range of 110V to 230V (90-264Vac) with PFC (Power Factor Correction), allowing it to be used worldwide.

How do the LED indicators work?

The charger uses two LEDs: LED1 stays Red when the power is on; LED2 shows Red during the charging process and turns Green when the battery is fully charged.

What safety features are integrated?

The unit is equipped with MCU-controlled intelligence providing protection against short circuits, over-voltage, over-temperature, and reverse polarity.

What is the warranty policy?

We provide a 2-year full warranty policy including free replacement for quality-related issues to ensure long-term reliability.
