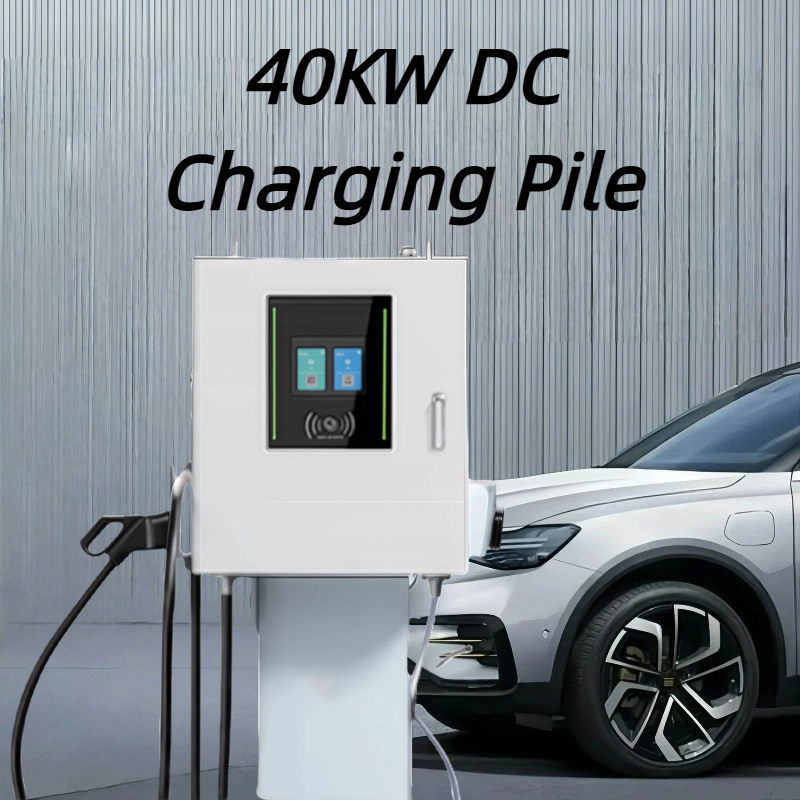

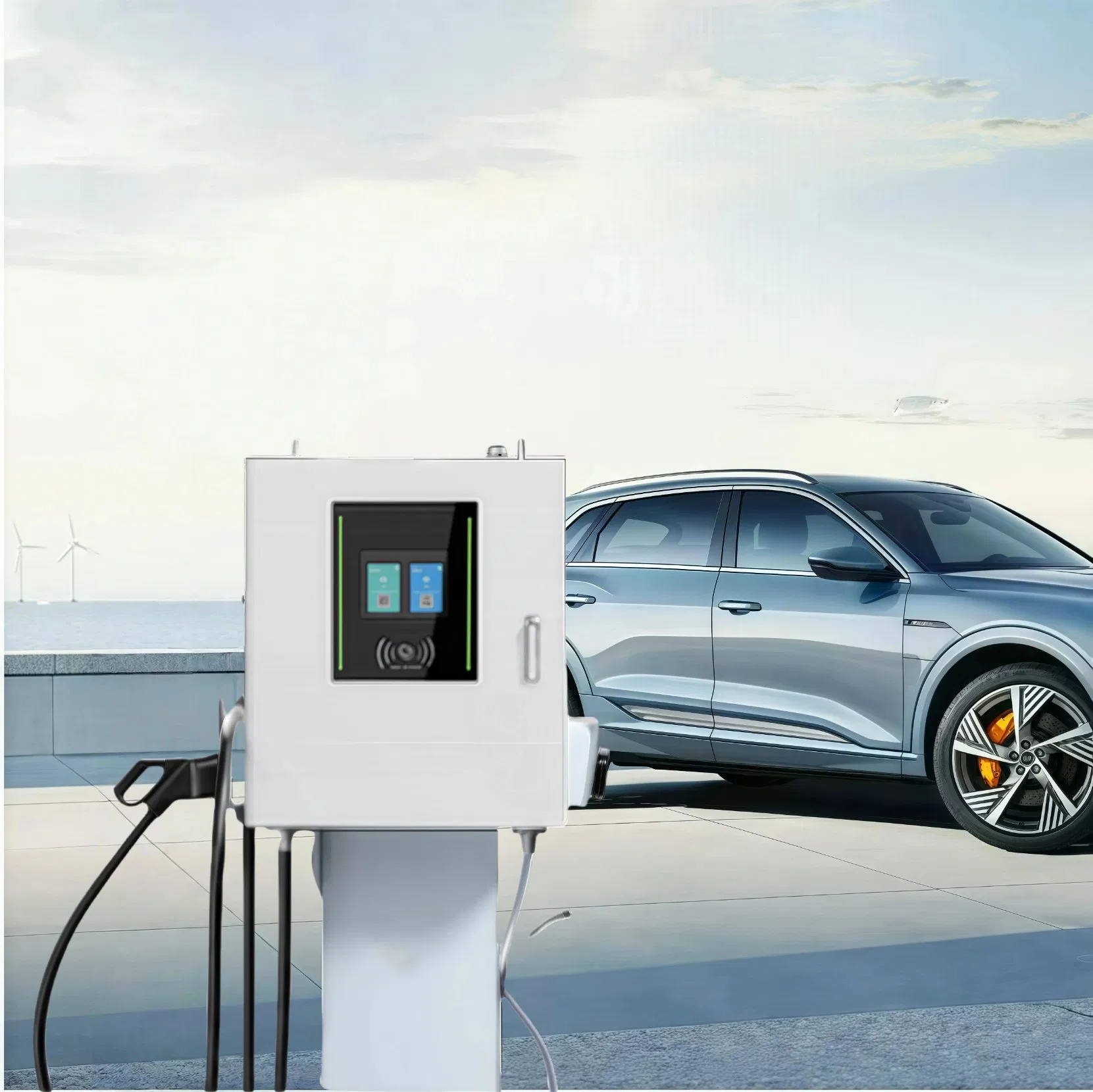

Guhe 40kw DC Fast Charging Pile with LCD Display for Commercial and Industrial Electric Vehicle Charger
Guhe 40kw DC Fast Charging Pile with LCD Display for Commercial and Industrial Electric Vehicle Charger
Guhe 40kw DC Fast Charging Pile with LCD Display for Commercial and Industrial Electric Vehicle Charger
Guhe 40kw DC Fast Charging Pile with LCD Display for Commercial and Industrial Electric Vehicle Charger
Guhe 40kw DC Fast Charging Pile with LCD Display for Commercial and Industrial Electric Vehicle Charger
1 / 5
Guhe 40kw DC Fast Charging Pile with LCD Display for Commercial and Industrial Electric Vehicle Charger
Guhe 40kw DC Fast Charging Pile with LCD Display for Commercial and Industrial Electric Vehicle Charger
Guhe 40kw DC Fast Charging Pile with LCD Display for Commercial and Industrial Electric Vehicle Charger
Guhe 40kw DC Fast Charging Pile with LCD Display for Commercial and Industrial Electric Vehicle Charger
Guhe 40kw DC Fast Charging Pile with LCD Display for Commercial and Industrial Electric Vehicle Charger

Guhe 40kw DC Fast Charging Pile with LCD Display for Commercial and Industrial Electric Vehicle Charger

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Overview & Basic Info

Model NO. GHDC40K-J-L1
Location Private & Public
Charging Interfaces One Pile with One Charge
Start Mode RFID, APP, POS, Credit Card
Product Size 690*357*1686mm
Package Weight 65.00kg
Production Capacity 100/Month
HS Code 8504409990

Product Description

40kW 8 Inches LCD Screen DC CCS2 Smart Charger

200A, 40kW Smart Charger designed for Home or Commercial use with OCPP 1.6J integration.

40kW DC Smart Charger
DC Fast Charging Station

Protection & Control System

🛡️ Multiple Protections:

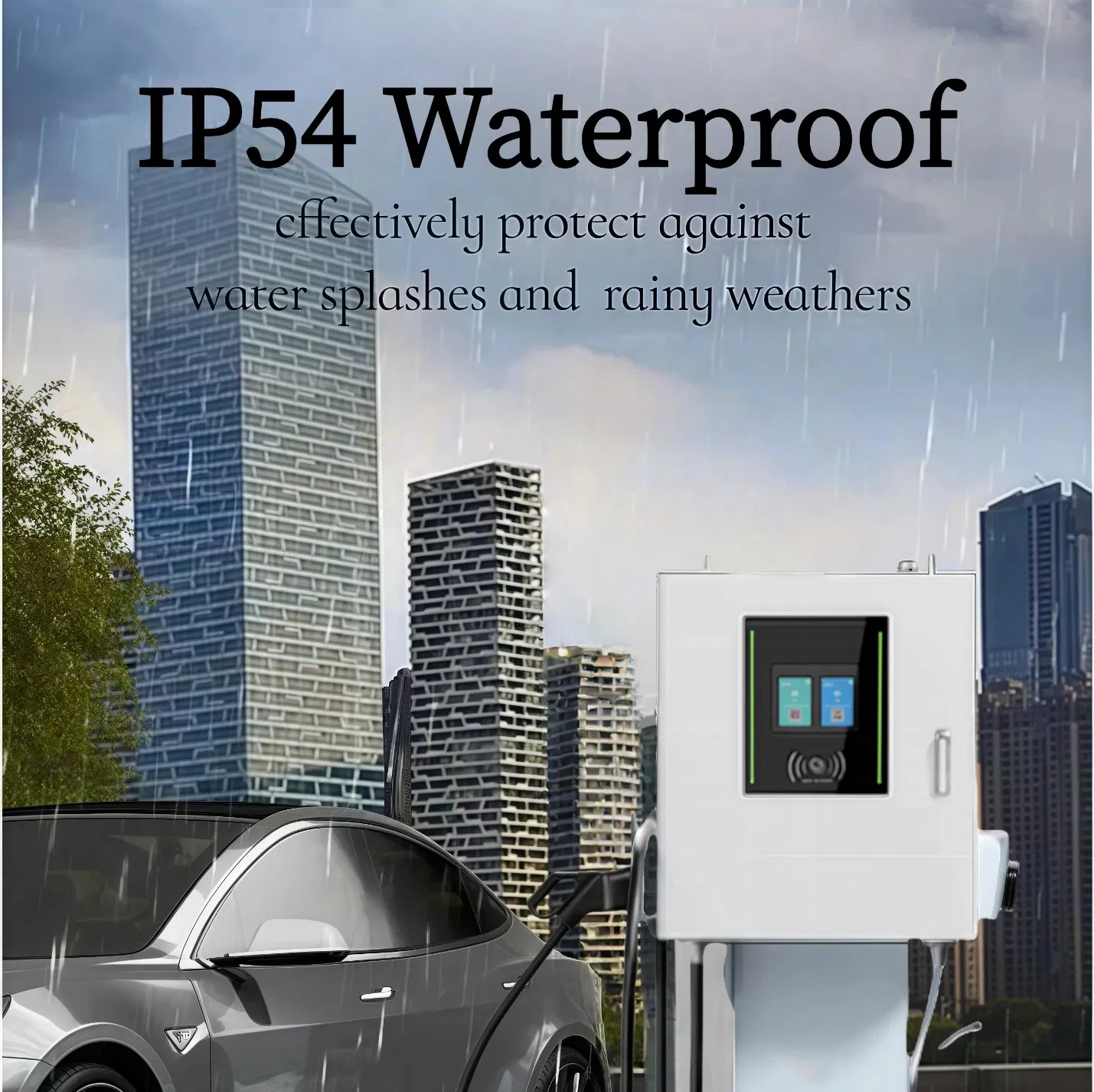

  • IP54 for Outdoor Use
  • Emergency Stop Button
  • Leakage & Lightning Protection
  • Over/Under Voltage Protection
  • Short Circuit Protection
  • Over Temperature & Current Protection
📱 Multiple Control:
  • App Remote Control (WiFi/Bluetooth)
  • RFID Card Access
  • POS Payment Integration

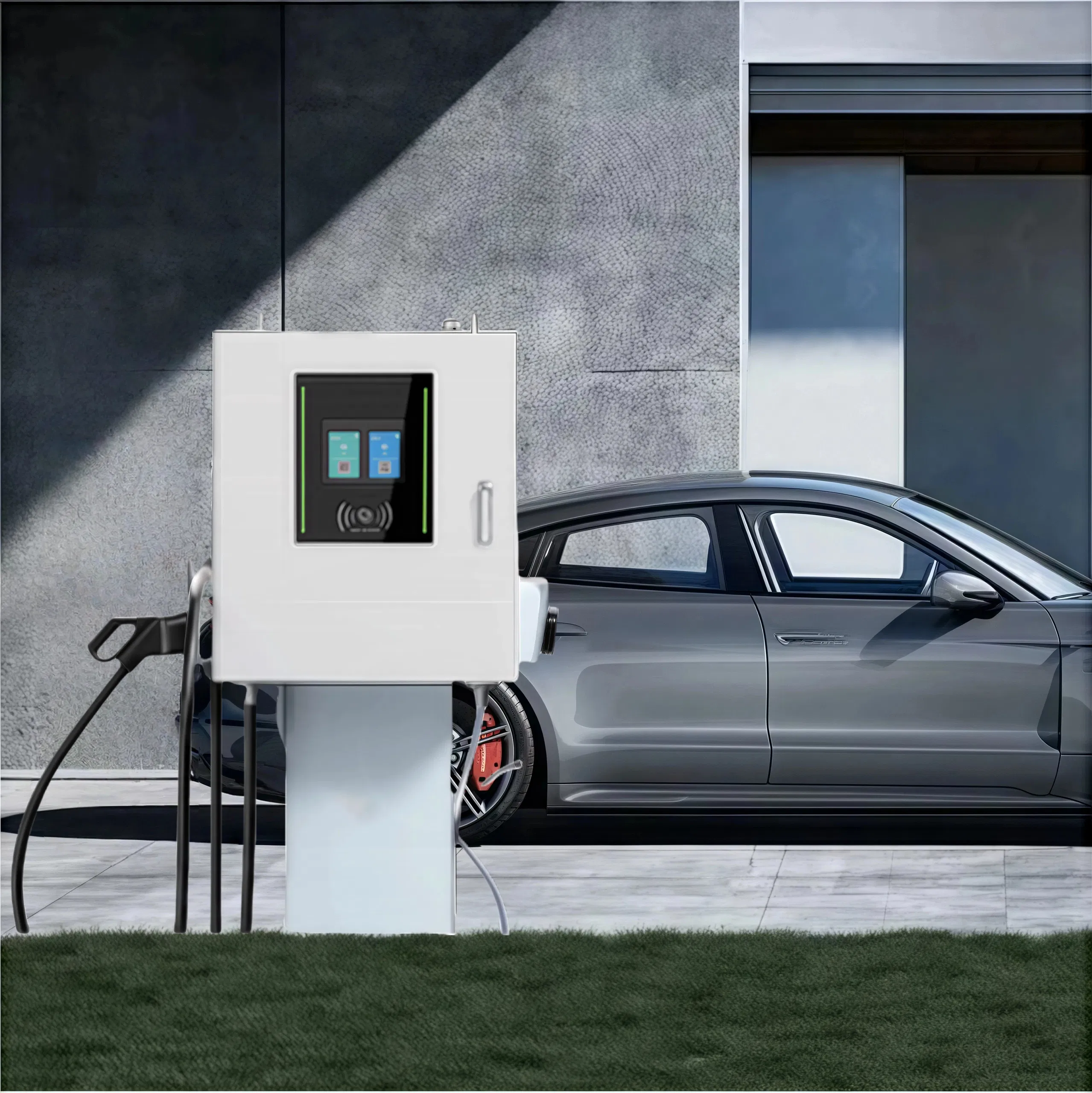

Protective Features

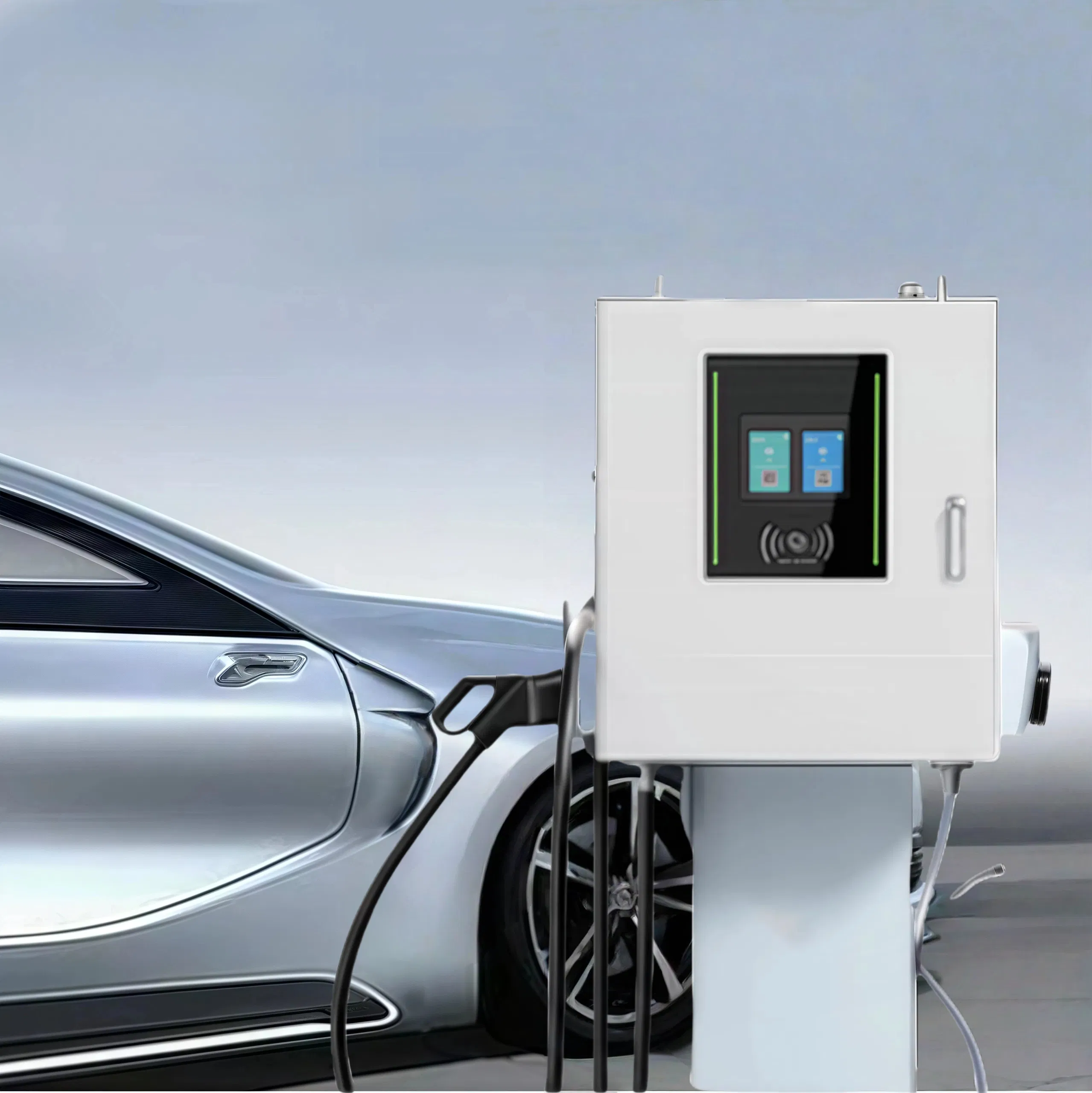

Control Interface

Technical Specification

Power Output30kW, 40kW, 60kW
Input VoltageAC 400V - 480V ±10-15%
PhaseThree Phases
Max Output Current125A - 200A
Output Voltage RangeDC 150-1000V
Max Efficiency≥94% (100% Loading)
CommunicationOCPP 1.6 JSON / LAN / 4G
IP RatingIP54
Display8 inches Touch LCD Screen
Operating Temp-30℃ ~ +50℃

Professional After-Sales Service

24-Month Warranty

Comprehensive protection against manufacturing defects.

Core Components

Free replacement for core components during the warranty period.

Technical Support

Lifelong free technical support on working days.

Factory & Production Capacity

Factory Production

Focus: Professional manufacturing of AC/DC Chargers, Solar Panels, Inverters, and Power Storage solutions.

Capacity: 5,000 units per month with strict ITAF 16949 standards.

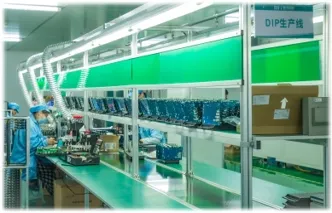

Testing Lab

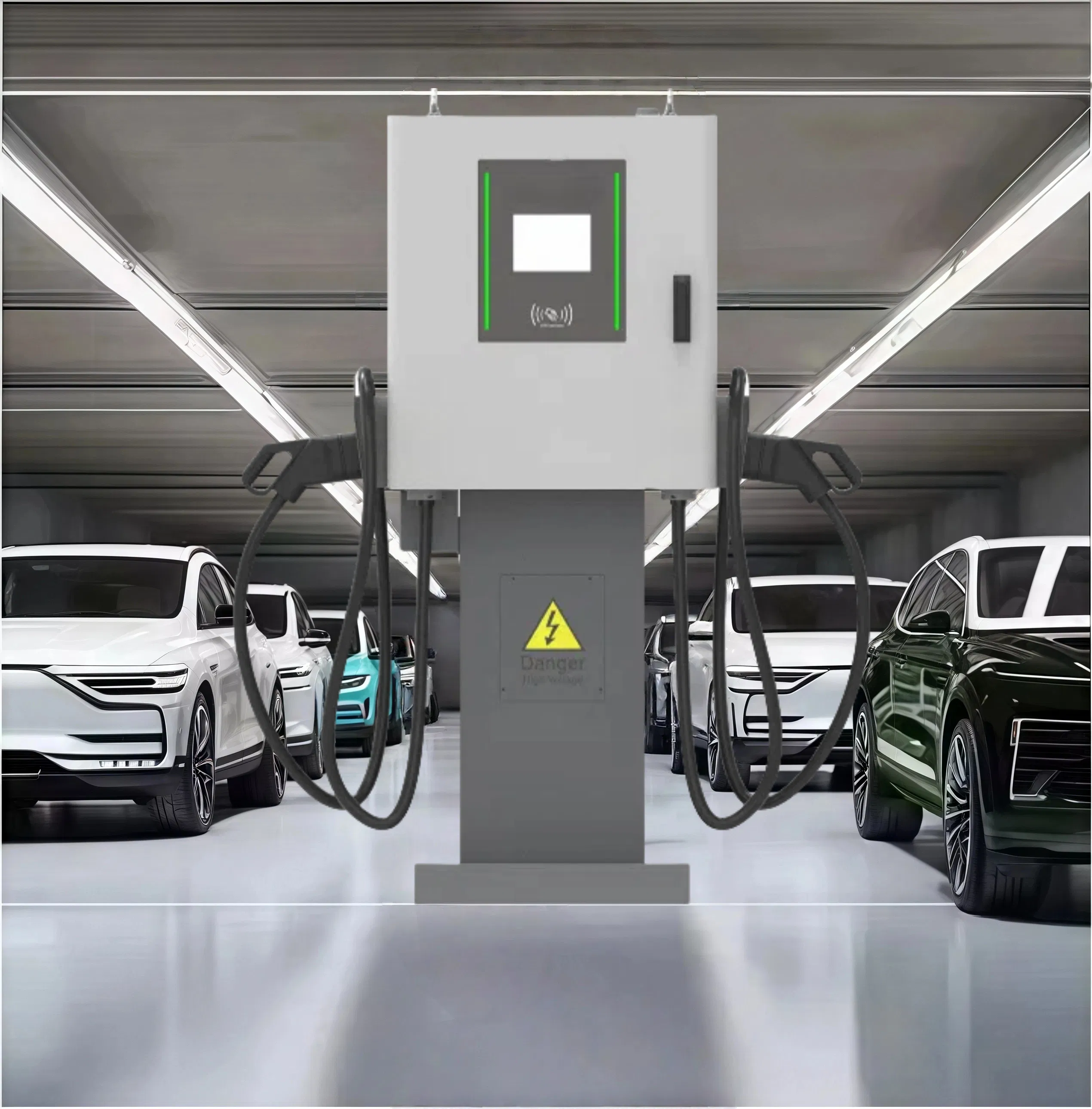

Quality Control

Quality Certifications

ISO9001

ISO9001

SGS

SGS Certified

TUV

TUV Certified

Frequently Asked Questions

How long is the charging cable?
The standard charging cable is 5m, but it can be customized to 7m, 10m, or longer based on your requirements.
Can the charger be customized with our branding?
Yes. We support customization for colors, logos, RFID cards, and the mobile application interface.
What shipping methods are available?
Standard shipping is usually handled via sea freight to ensure cost-effectiveness for heavy equipment.
What are the main protective features of this DC charger?
It includes IP54 waterproof rating, emergency stop, leakage protection, over-temperature protection, and surge/lightning protection.
Does the charger support smart connectivity?
Yes, it supports OCPP 1.6J protocol and can be controlled via WiFi, Bluetooth, or LAN through a dedicated App.
Is it suitable for outdoor installation?
Absolutely. With an IP54 rating and a robust operating temperature range of -30℃ to +50℃, it is designed for both indoor and outdoor environments.
