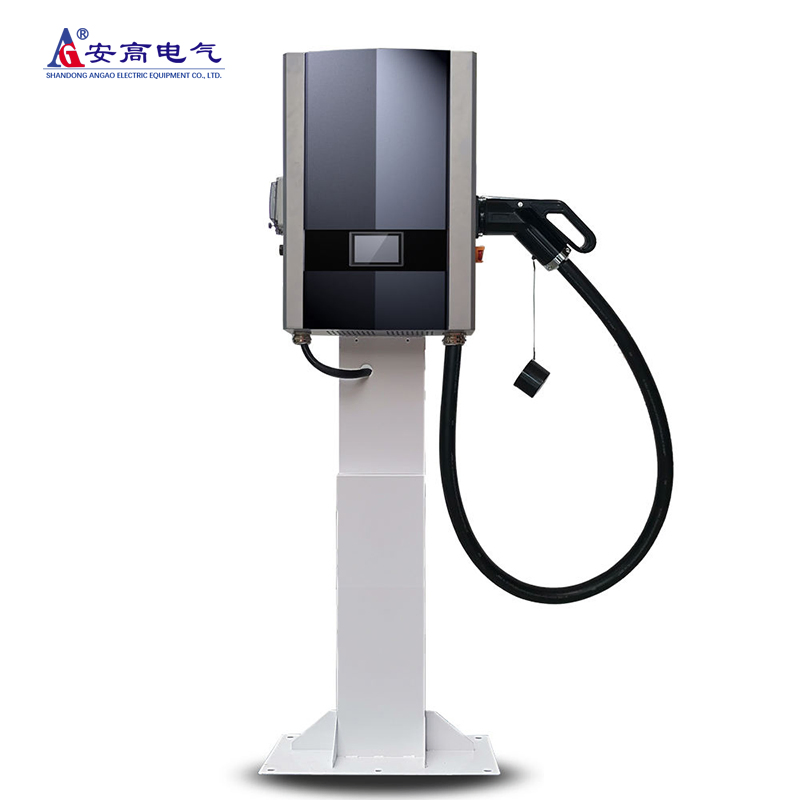

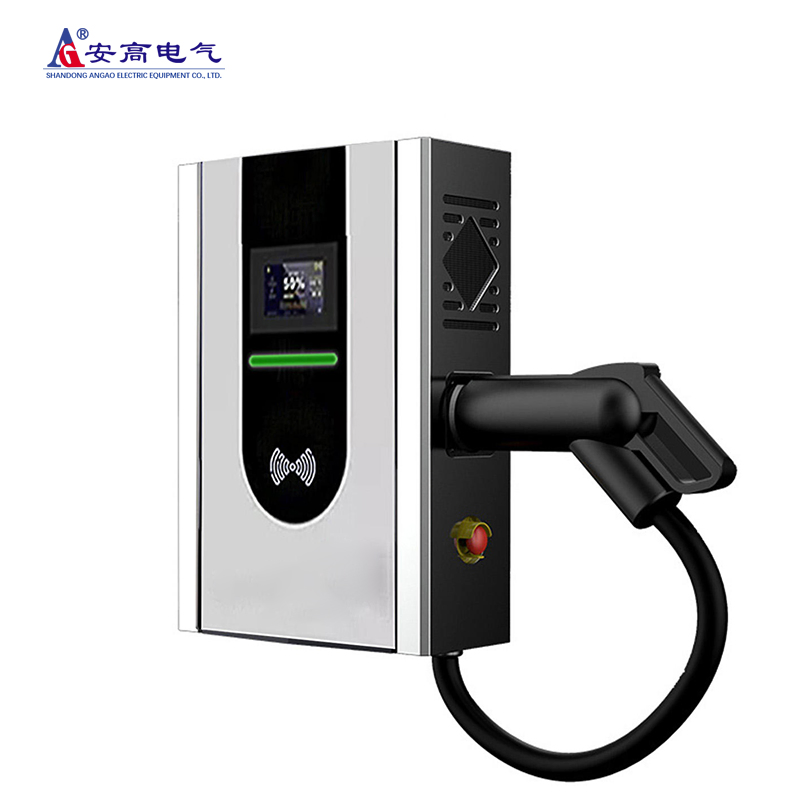

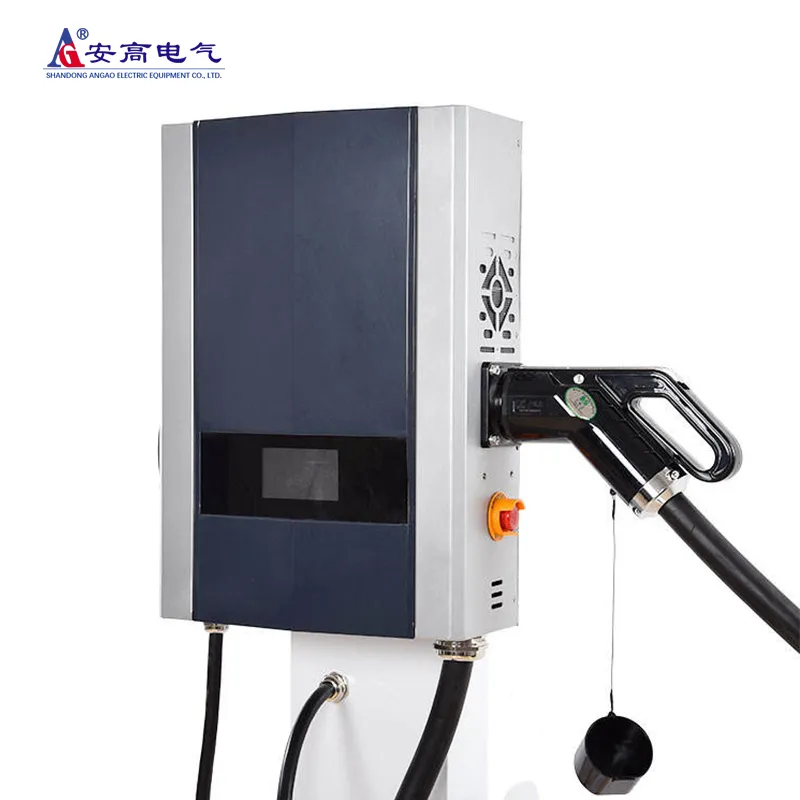

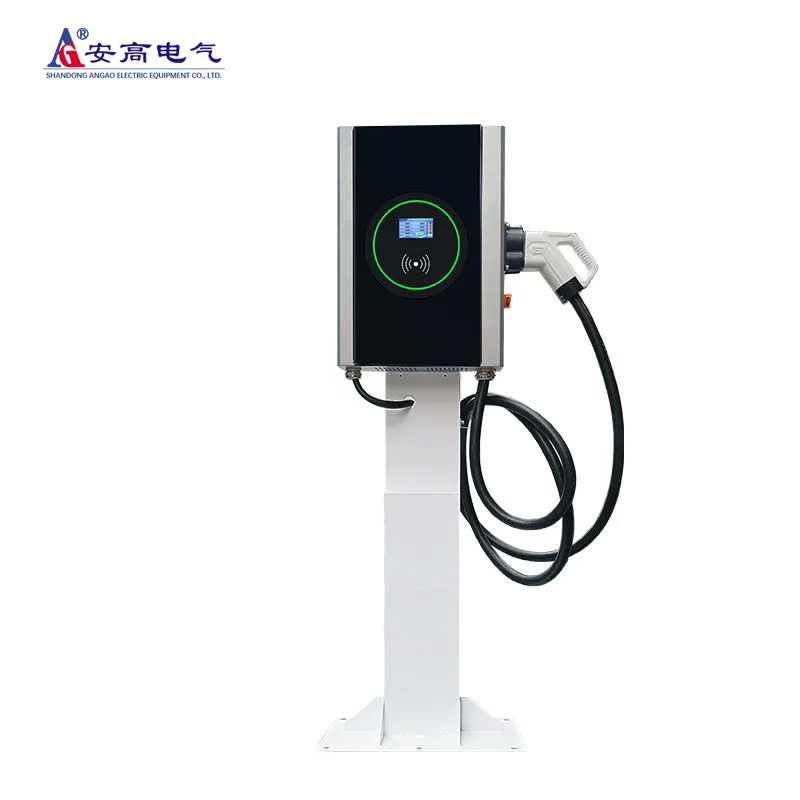

This is a new generation integrated DC fast charging pile for electric vehicles. The module adopts an isolated air channel potting design, ensuring high reliability. The system compatibility with 40kw power configuration meets the charging needs of various vehicles, suitable for residential communities, small public construction venues, and malls.
| Product Name | Smart DC charging pile |
| Input Voltage | Three-phase five-wire AC input, AC range 380VAC ± 15% |
| Output Maximum Power | 40kW |
| Display | 7-inch touch screen |

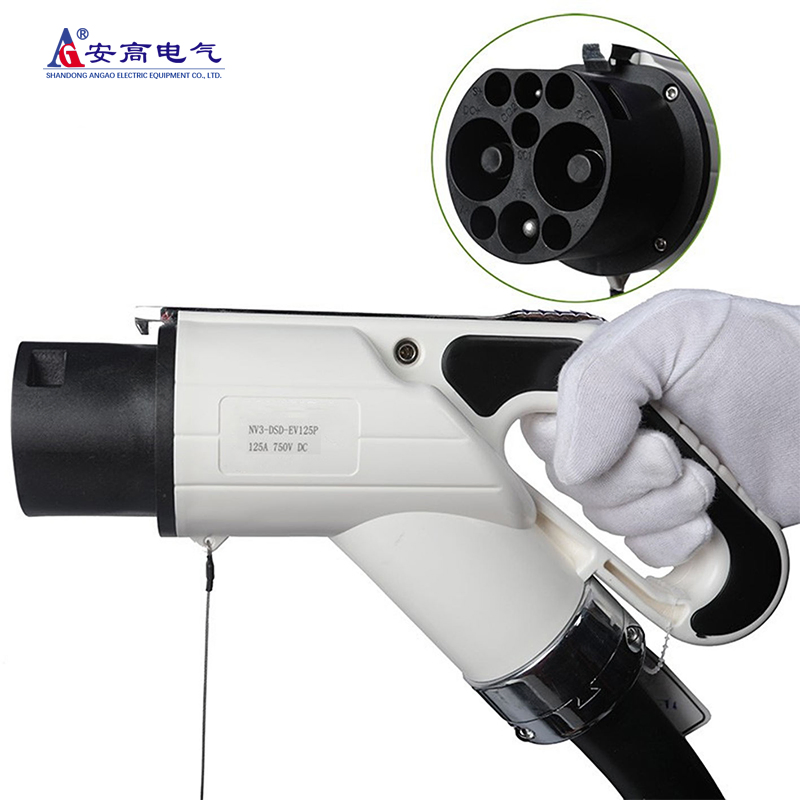

| Gun Line Length | 5M (standard) |
| Power Factor | >0.99 |
| Total Harmonic Current | <5% (Rated Input) |
| Output Ripple | <0.5% |
| Size (H*W*D) | 1520*600*300mm |

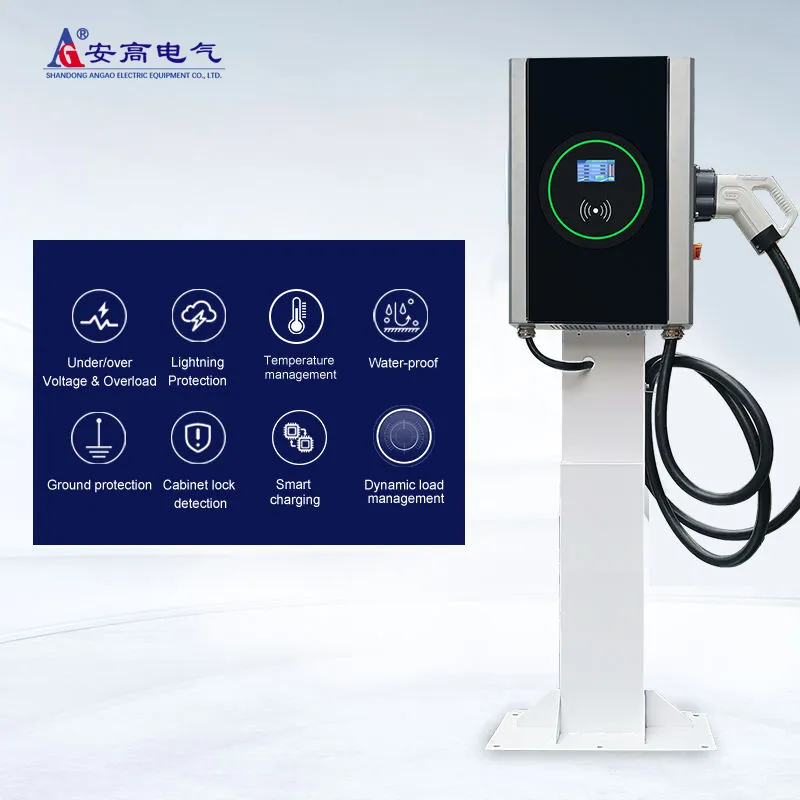

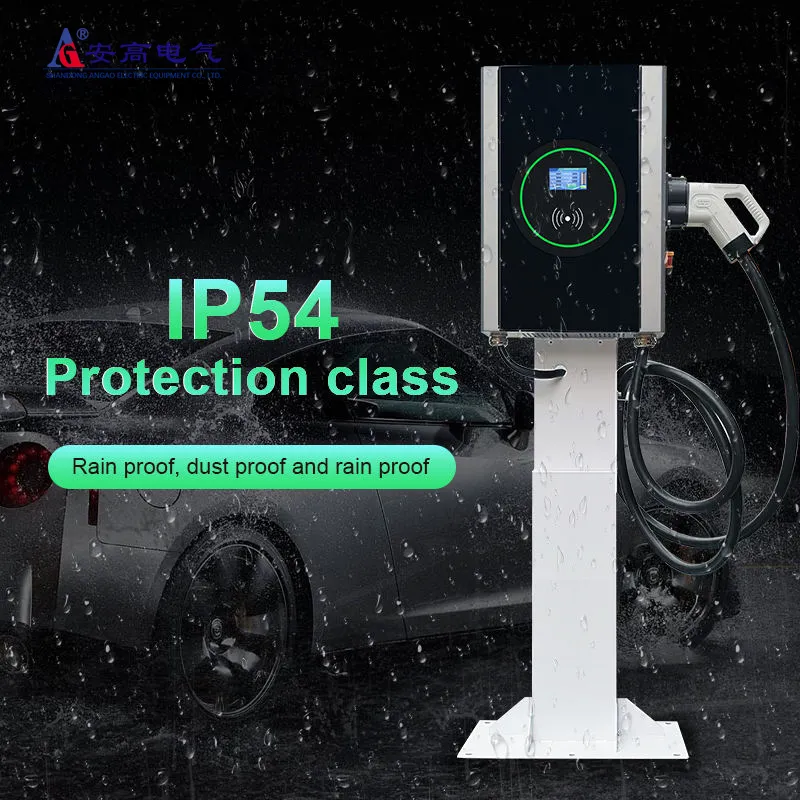

High protection design: anti-rain, snow, wind-proof sand, salt spray, and anti-condensation. Includes a 7-inch capacitive screen with front door windproof design.
Strict EMC testing, high/low temperature tests, and full machine protection. All devices are selected from first-class international and domestic brands.
Charging efficiency up to 95% with excellent power quality and ultra-low standby power consumption.
